Diamond Products CB35BV-XL - Manual (Page 19)

86
85
RED
87 87A
30
+ -

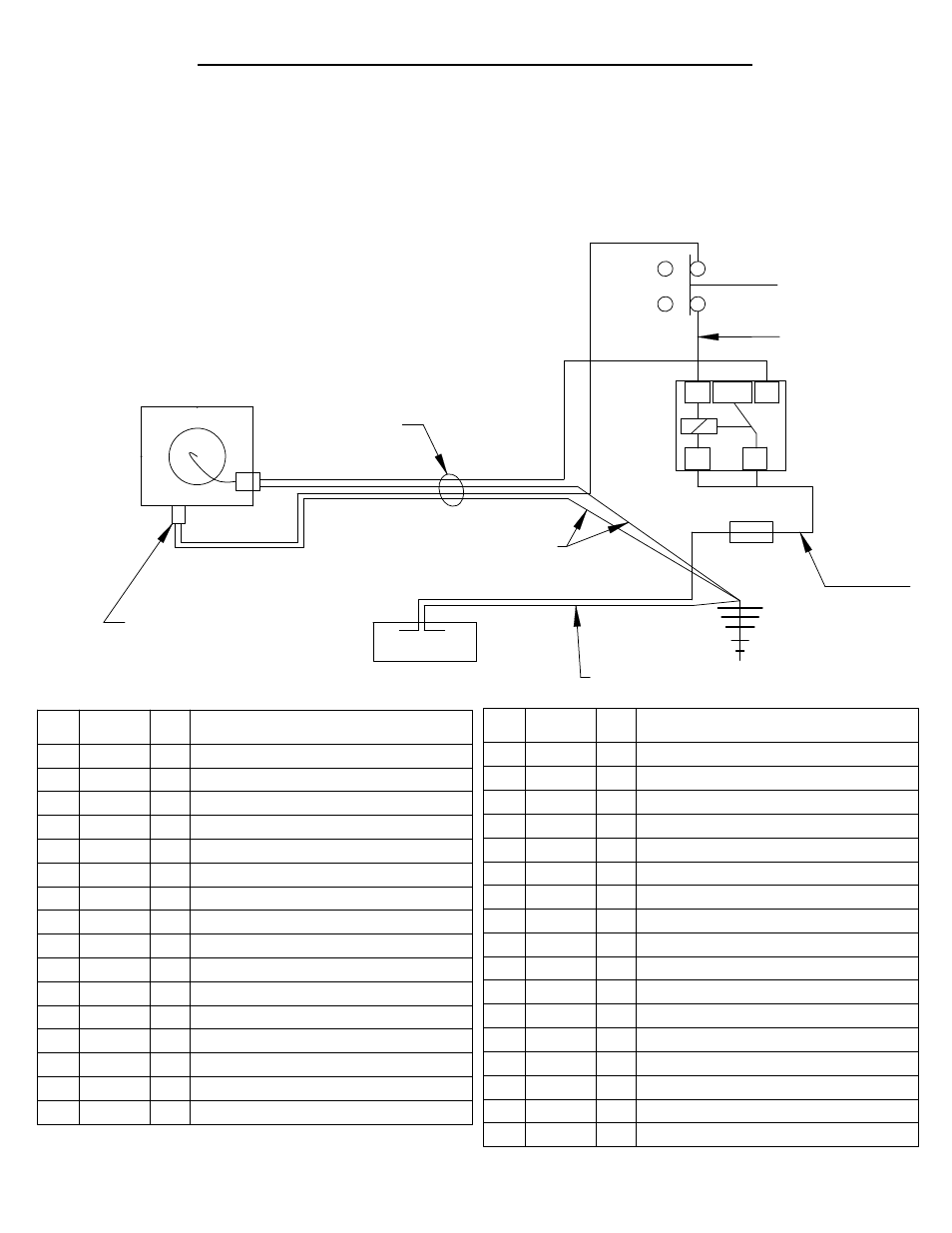

4400298 AIR TO OIL COOLER OPTION, CB35XL
BATTERY
23
24 11
12
SWITCH
SWITCH
FUSE
STOP
4641157
4641156
RED
GREEN
RED
BLACK
4641155
STUD
GROUND
BLACK
RADIATOR
GREEN
RELAY 4641154
TEMPERATURE
1) ATTACH WIRES TO RELAY BEFORE
BOLTING TO PANEL.
2) REMOVE ORIGINAL HOSE FROM
HEAT EXCHANGER TO FILTER.
3) REPLACE ELBOW AT LOWER
HEAT EXCHANGER PORT W/ 3200458.
4) ADD ELBOW 3200417 TO FILTER.
5) INSTALL LONGER HOSES.
6) SECURE WIRES AND HOSES WITH
WIRE TIES.
ITEM
PART
NO.
QTY. DESCRIPTION
1 4646156 1 CB-XL Frame Assembly
2 4646141 1 Instrument Panel
3 2400308 1 Radiator, 12 Volt, 1" SAE Ports
4 4641097 1 Heat Shield
5 4645104 1 Gasket
5 3200112 2 Elbow, 1" O-Ring to 3/4" M. JIC
7 2800875 1 Temperature Switch, 3/8 NPT
8 4641159 1 Radiator Guard
9 2900567 8 Flat Washer, 5/16" USS
10 2900289 4 Cap Screw, Hex Hd., 5/16-18 x 2-1/4"
11 2900039 4 Lock Nut, 5/16-18 Nylon
12 2800144 1 Relay, 50 Amp, 12 V, SPDT
13 2900016 2 Flat Washer, #10 USS
14 2900159 1 Machine Screw, Rd. Hd., #10-24 x 5/8"
15 2900017 1 Lock Nut, #10-24 Nylon
16 2800481 1 Fuse Holder
ITEM
PART
NO.
QTY. DESCRIPTION
17 2803014 1 Fuse, 15 Amp, Slo Blow
18 2900009 2 Flat Washer, 1/4" SAE
19 2900024 1 Lock Washer, 1/4" Split
20 2900008 1 Cap Screw, Hex Hd., 1/4-20 x 1"
21 2900125 1 Hex Nut, 1/4-20
22 4641154 1 Wire Assy., 4 Wire
23 4641155 1 Wire Assy., Red & Grn, 14 Ga.
24 4641156 1 Wire Assy, Black & Red
25 4641157 1 Wire Assy., 20 Ga., Brn, 8-1/2"
26 2800068 4 Wire Tie, 7-1/2"
27 3200417 1 Elbow, 3/4" F. JIC to 3/4" M. JIC
28 3200458 1 3/4" O-Ring to 3/4" MJIC, 45 Deg.
29 4643016 1 Hose Assembly, 3/4" x 70"
30 4643017 1 Hose Assembly, 3/4" x 58"
31 2800278 8 Wire Tie, 14"
32 1800537 1 Label, HOT
33 1801707 1 Decal, Caution, Fan
