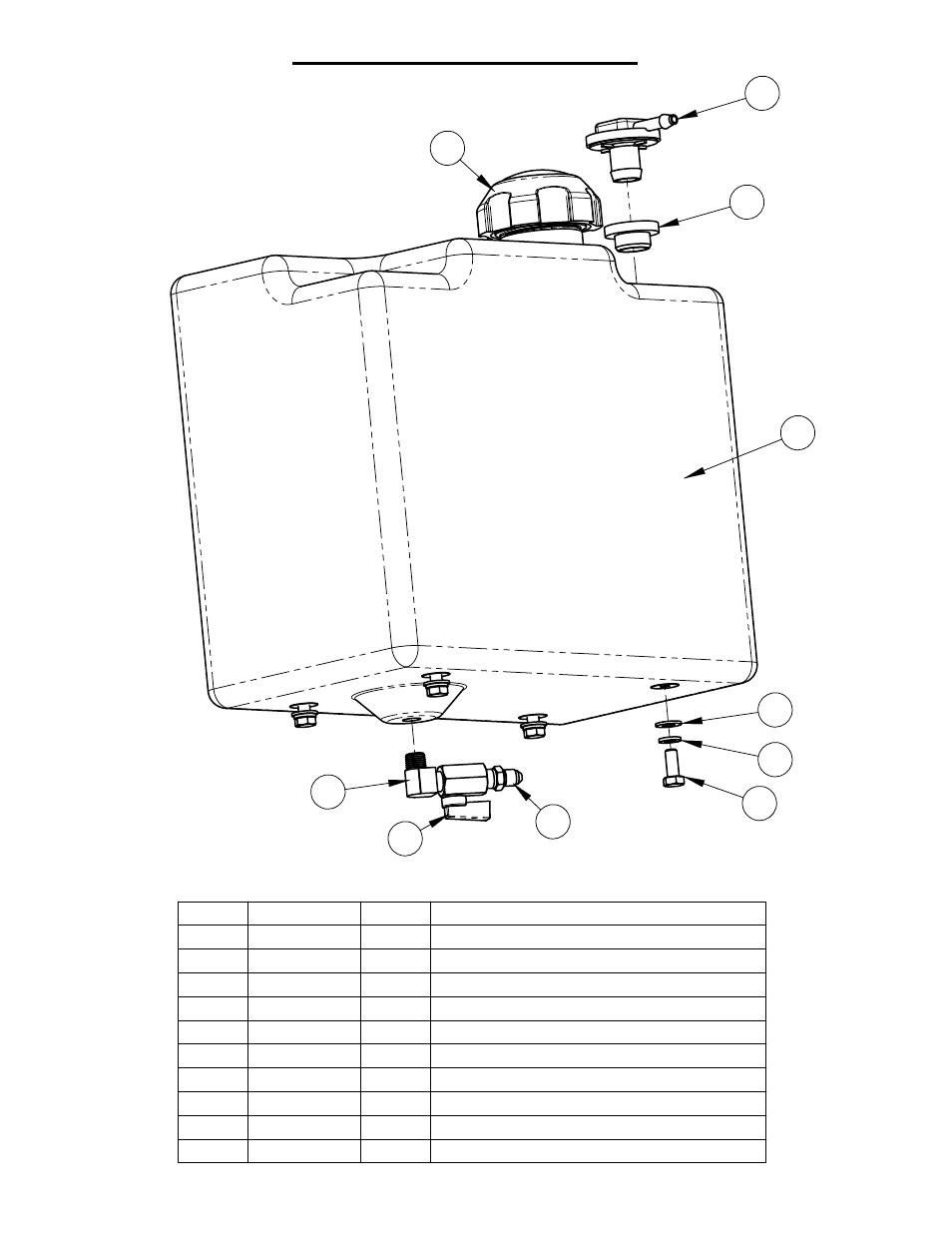

4646205 GAS TANK ASSEMBLY
ITEM
PART NO.
QTY.
DESCRIPTION
1
6010869
1
Fuel Tank, 4.4 Gallon
2
2506716
1
Grommet
3
2505503
1
Roll Over Vent, 3/8" Hose Barb
4
2503294
1
Fuel Tank Cap, W/Gage
5
3200418
1
Adapter, 1/4" M. Pipe to 1/4" M. JIC
6
3200108
1
Ball Valve, 1/4" NPT
7
3200012
1
Street Elbow, 1/4" NPT
8
2900022
4
Flat Washer, 5/16" SAE
9
2900031
4
Lock Washer, 5/16" Split
10
2900019
4
Cap Screw, Hex Hd., 5/16-18 x 3/4"
9
10
2
1
4
5
6
7
8
3
