ITEM PART NO. QTY. DESCRIPTION
1 4699994 1 QD Motor Mount Adapter
2 2900285 2 Cap Screw, Button Hd., 3/8-24 x 1/2"
3 4600110 1 Cam Shaft Bushing
4 2900724 6 Cap Screw, Soc. Hd., 3/8-16 x 1-1/4"
5 4600109 1 Cam Shaft Housing
6 4600108 1 Cam Lock Shaft
7 2400143 1 Ball Plunger M8
Isometric View Isometric View
2
1

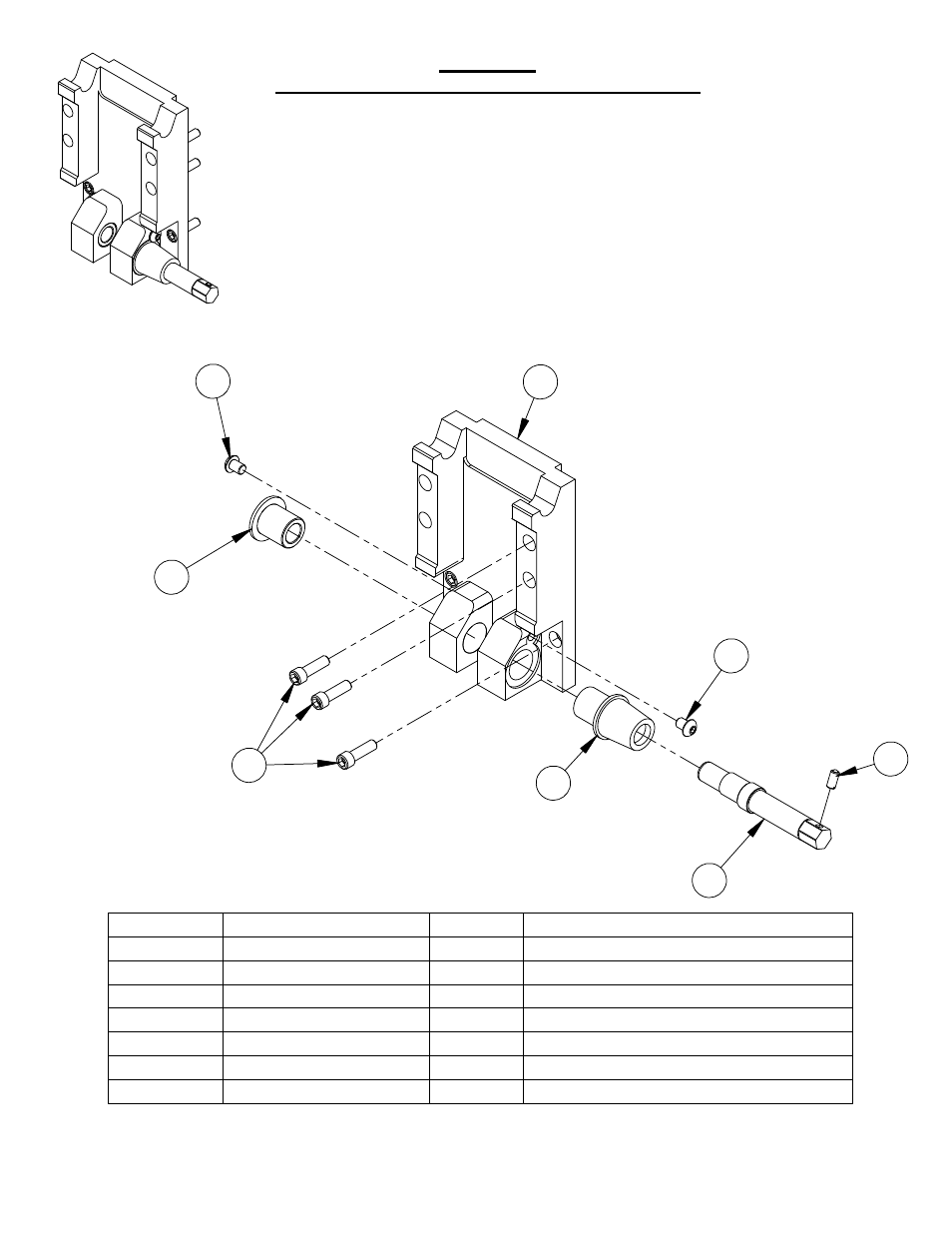

M-6 Quick Disconnect Adapter Assembly
2
3
6
#4699996
5
4
7
