Page 76

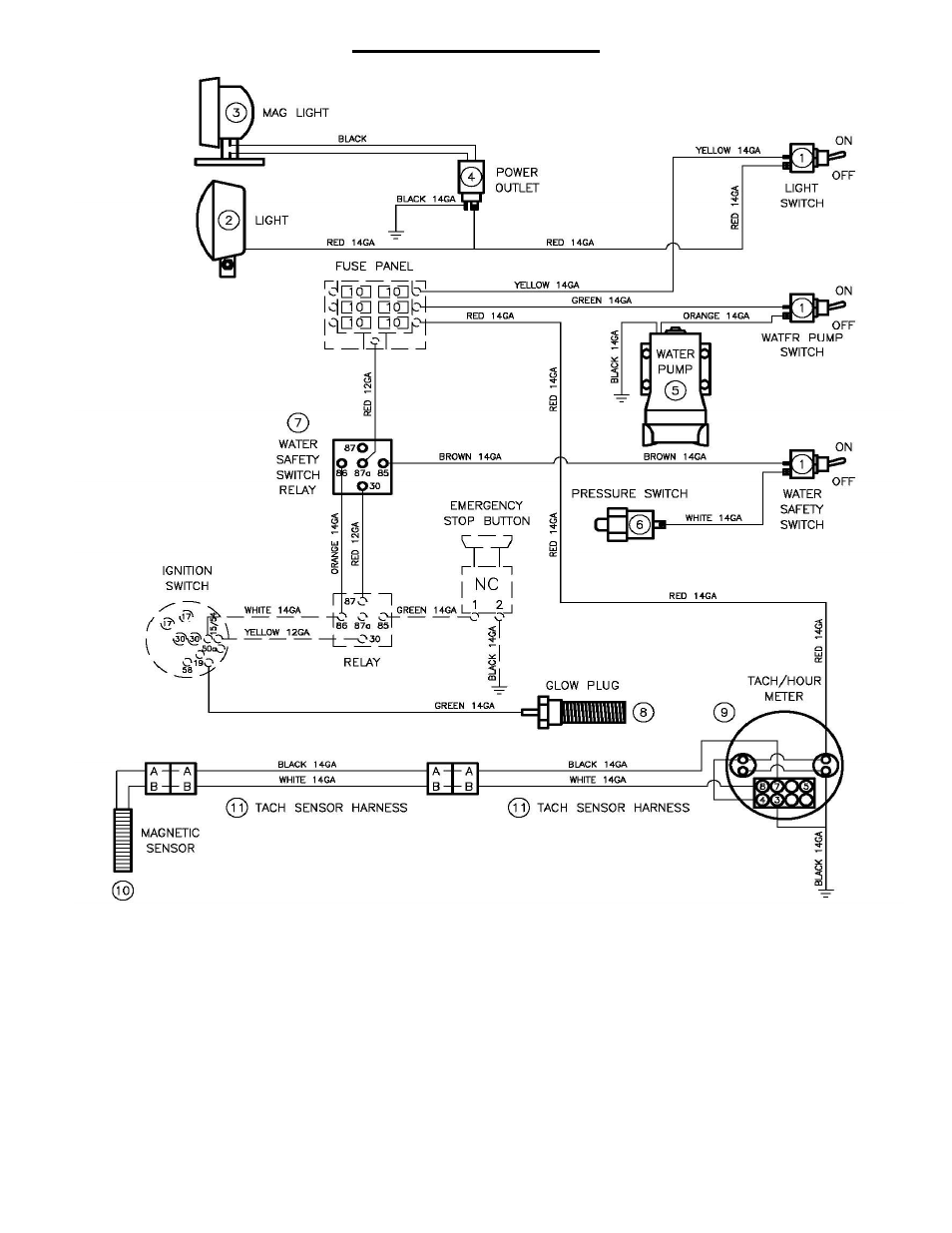

Options Wiring Diagram
Item
Part No.
Qty.
Description
Item
Part No.
Qty.
Description
1
2800062
3
Toggle Switch
7
2800144
1
Relay
2800063
3
Switch Boot
2800263
1
Relay Connector
2
2500194
1
Spot Light, 12 Volt
2800264
4
Wire Terminal, 1/4" Push-on
3
2501087
1
Magnetic Base Light, 12 Volt
8
2701698
1
Glow Plug
4
2800374
1
Power Outlet, 12 Volt
9
6010416
1
Tach/Hour Meter (VDO) Calibrated
2800375
1
Outlet Cap
2800612
2
(Light Bulb, Wedge Base)
5
2600200
1
Water Pump, 12V Diaphragm
10
2800169
1
Magnetic Sensor
6
2800060
1
Water Pressure Safety Switch
11
2800397
1
Tach Sensor Harness
76
