Eaton transmission assembly – Diamond Products CC3728 User Manual
Page 26
Use #6010061
For saws prior to
January 2008:
ITEM
PART NO.
QTY.
DESCRIPTION
1
2600068
1
Eaton Hydrostatic Transmission
2
3200046
2
Fitting, 3/8" F. JIC to 3/8" Push Lock
3
6010060
1
Oil Recirculation Hose, 3/8" I.D. x 9"
4
2900143
1
Woodruff Key #61, 3/16" x 5/8"
5
2900063
1
Woodruff Key #405, 1/8" x 5/8"
6
2500150
1
Sprocket, #40 x 11 Tooth w/Setscrews
7
2900083
1
Fender Washer, 1/4" x 1-1/4"
8
2900024
1
Lock Washer, 1/4" Split
9
2900082
1
Cap Screw, Hex Hd., 1/4-20 x 1/2"
10
6010064
1
Shift Lever
11
2900058
1
Flat Washer, 1/2" SAE
12
2900026
1
Lock Nut, 1/2-13 Nylon
13
6010682
1
Transmission Pulley 5.5"
14
2900142
2
Set Screw, Soc. Hd., 5/16-18 x 3/8"
15
2900567
1
Flat Washer, 5/16" USS
16
2900031
1
Lock Washer, 5/16" Split
17
2900019
1
Cap Screw, Hex Hd., 5/16-18 x 3/4"
18
2900035
4
Cap Screw, Hex Hd., 3/8-16 x 3"
19
2900014
4
Flat Washer, 3/8" SAE
20
2900018
4
Lock Nut, 3/8-16 Nylon
21
3200062
1
Hose Clamp #4
22
6010059
1
Clear Hose, 3/8" I.D. x 19"
9
15
16
5
6
21
22
19
20
2
3
20
19
18
1
10
11
12
14
13
14
4
18
7
8
17

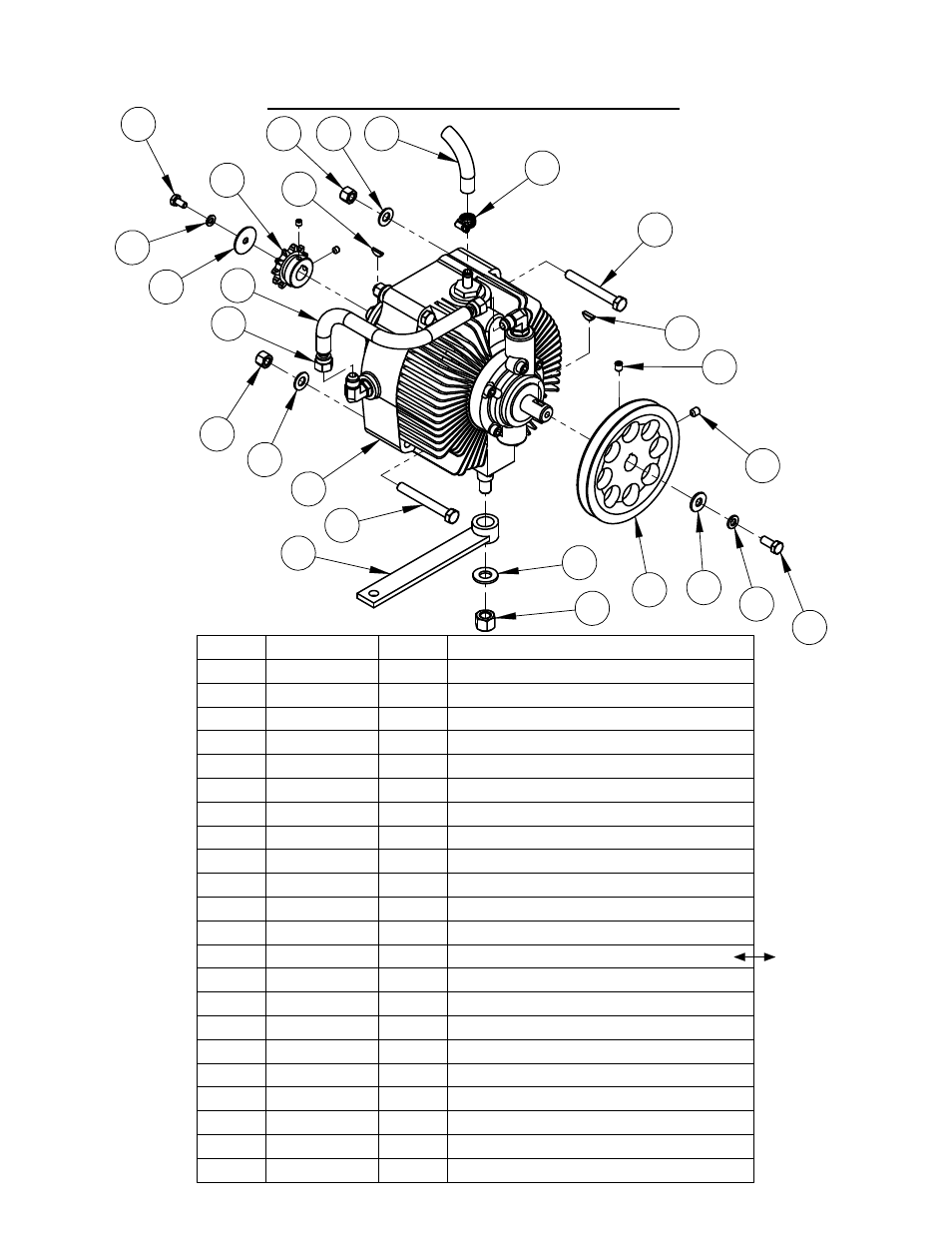

Eaton Transmission Assembly #6012123
