ITEM NO. PART NUMBER DESCRIPTION QTY.
1 6048257 24" Blade Guard 1
2 2500829 Water Manifold Gasket 1
3 6048123 Water Manifold 1
4 6010085 Water Tube for 20" Guard 2
5 3200001 Plug, 1/8" NPT 3
6 6048155 Water Tube Clamp 2
7 2900009 Flat Washer, 1/4" SAE 2
8 2900244 Cap Screw, Hex Hd., M6 x 45mm 2
9 2900302 Lock Nut, M6 Nylon 6
10 2900308 Cap Screw, Flat Hd. Soc., M6 x 16mm 4
11 3200002 Fitting, 3/4" M. Pipe to 3/4" M. Garden 1
12 6048027 Hinge Assy., Metric Fasteners 1
12.1 2500270 Blade Guard Hinge 1
12.2 2900009 Flat Washer, 1/4" SAE 6
12.3 2900310 Cap Screw, Hex Hd., M6 x 20mm 6
12.4 2900302 Lock Nut, M6 Nylon 6
13 6048039 Splash Flap 1
14 2900016 Flat Washer, #10 USS 2
15 2900083 Fender Washer, 1/4" x 1-1/4" 2
16 2900309 Cap Screw, Hex Hd., M5 x 20mm 2
17 2900301 Lock Nut, M5 Nylon 2

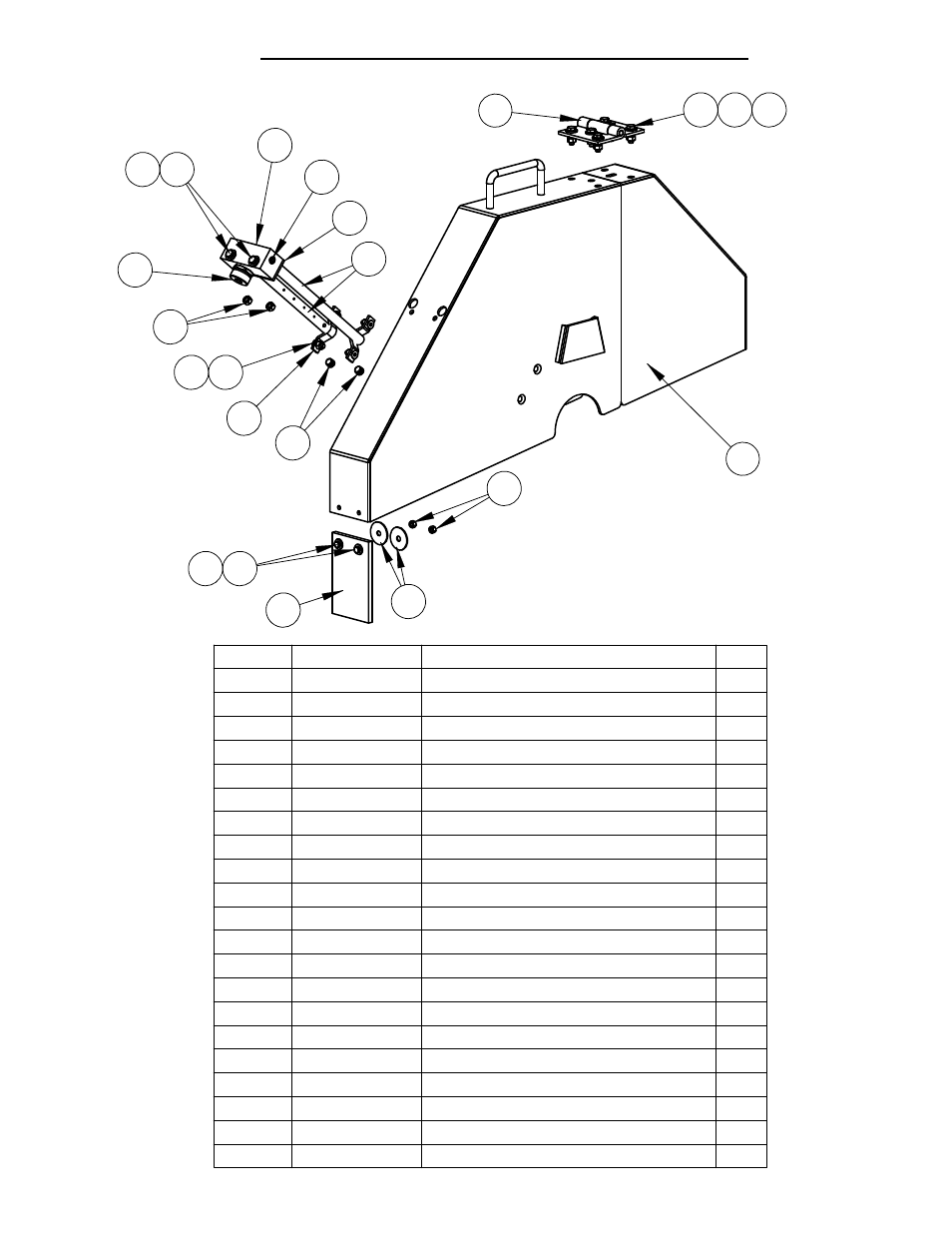

24"BLADE GUARD ASSEMBLY: 6048258
2
3
7
10 9
9
5
8
11
14
13
12.2 12.3 12.4
4
1
16
12.1
17
15
5
6
