ITEM PART NO. QTY. DESCRIPTION
1 6048880 1 Blade Shaft
2 6048134 1 Key, 1/4" Sq. x 2-1/4"
3 6048018 2 Key, 3/16" Sq. x 3/4"
4 2500365 2 Pillow Block Bearing, 1-1/4"
5 2900058 4 Flat Washer, 1/2" SAE
6 2900084 4 Lock Washer, 1/2" Split
7 2900331 4 Cap Screw, Hex Hd., M12 x 40mm
8 2500621 1 Sheave, 3V-3.65-4 Groove (1610)
9 2500337 1 Taper Bushing, 1-1/4"
10 2900484 2 Set Screw, Soc. Hd., 3/8-16 x 5/8"
11 6048008 2 Inner Flange 4-1/2"
12 2900076 2 Set Screw, Soc. Hd., 1/4-20 x 1/2"
13 2900065 1 Flange Nut, 5/8-11 R.H.
14 6048009 1 Outer Flange, 4-1/2" w/ Pin
15 2900066 1 Flange Nut, 5/8-11, L. Hand

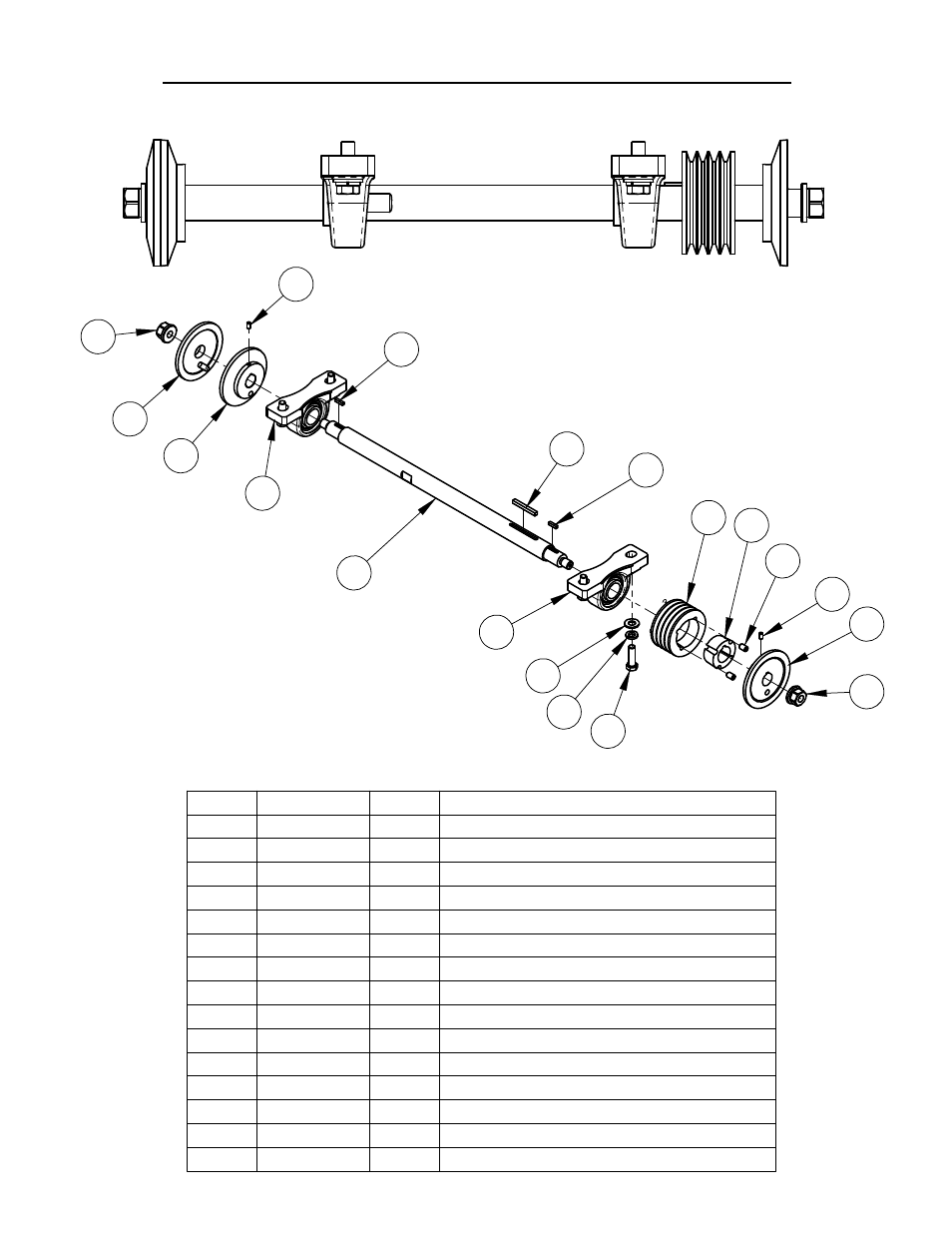

6040524 BLADE SHAFT ASSEMBLY, 575V ELECTRIC UNITS.
