Sheet1, Drawing view1 – Diamond Products CC1507E User Manual
Page 8

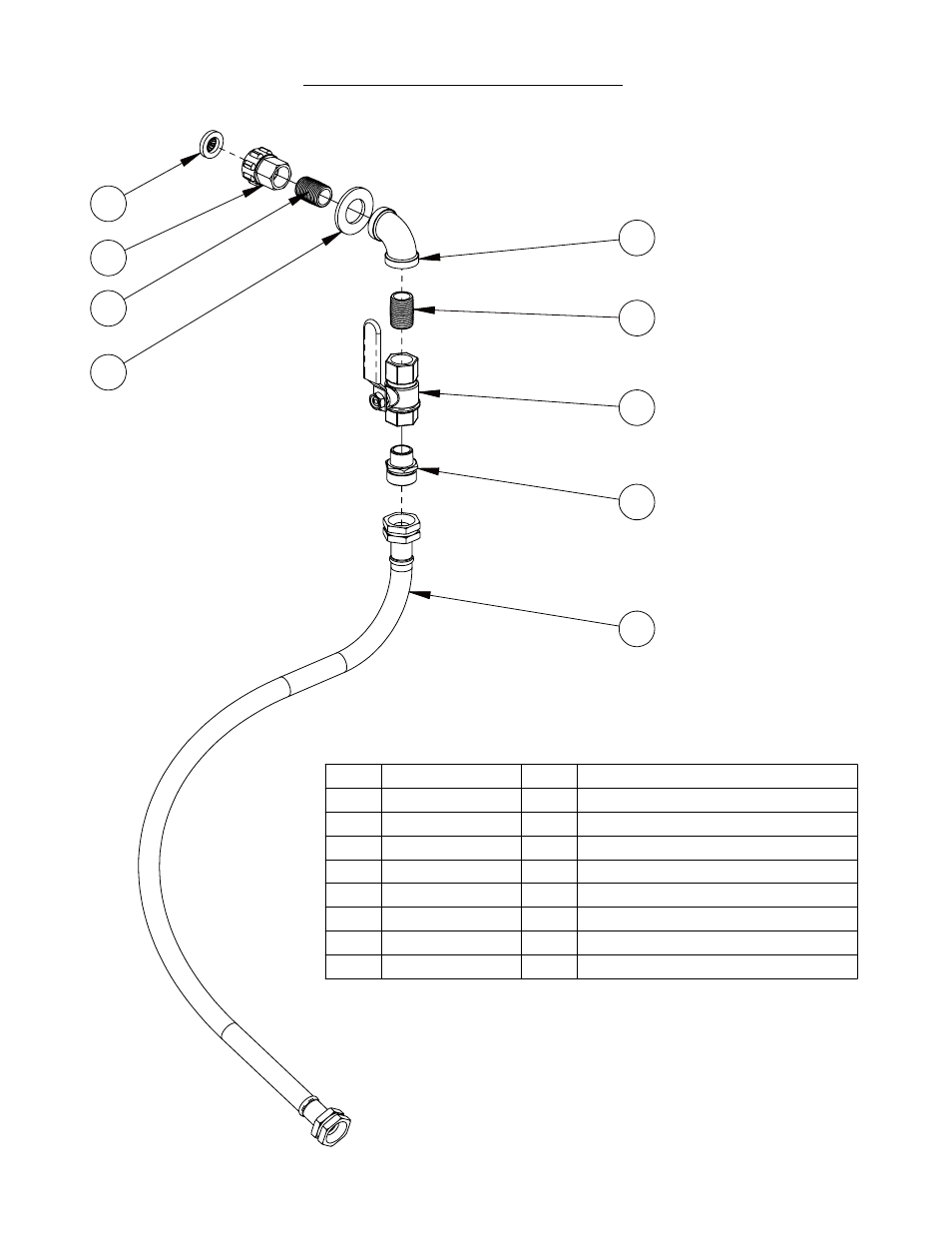

6075182 Water Hose Assembly
3
1
4
2
6
7
8
4
5
ITEM
PART NO.
QTY.
DESCRIPTION
1
3200022
1
Fitting, 1/2" F. Pipe to 3/4" F. Garden
2
2900425
1
Flat Washer, 7/8" SAE
3
3200025
1
Hose Filter Washer
4
3200008
2
Close Nipple, 1/2" NPT
5
3200209
1
Pipe Elbow, 1/2" Female
6
6011055
1
Water Hose Assembly, 30" Long
7
3200155
1
Fitting, 1/2" M. Pipe to 3/4" M. Garden
8
3200027
1
Water Valve
8
