Diamond Products CC1507E User Manual
Page 13

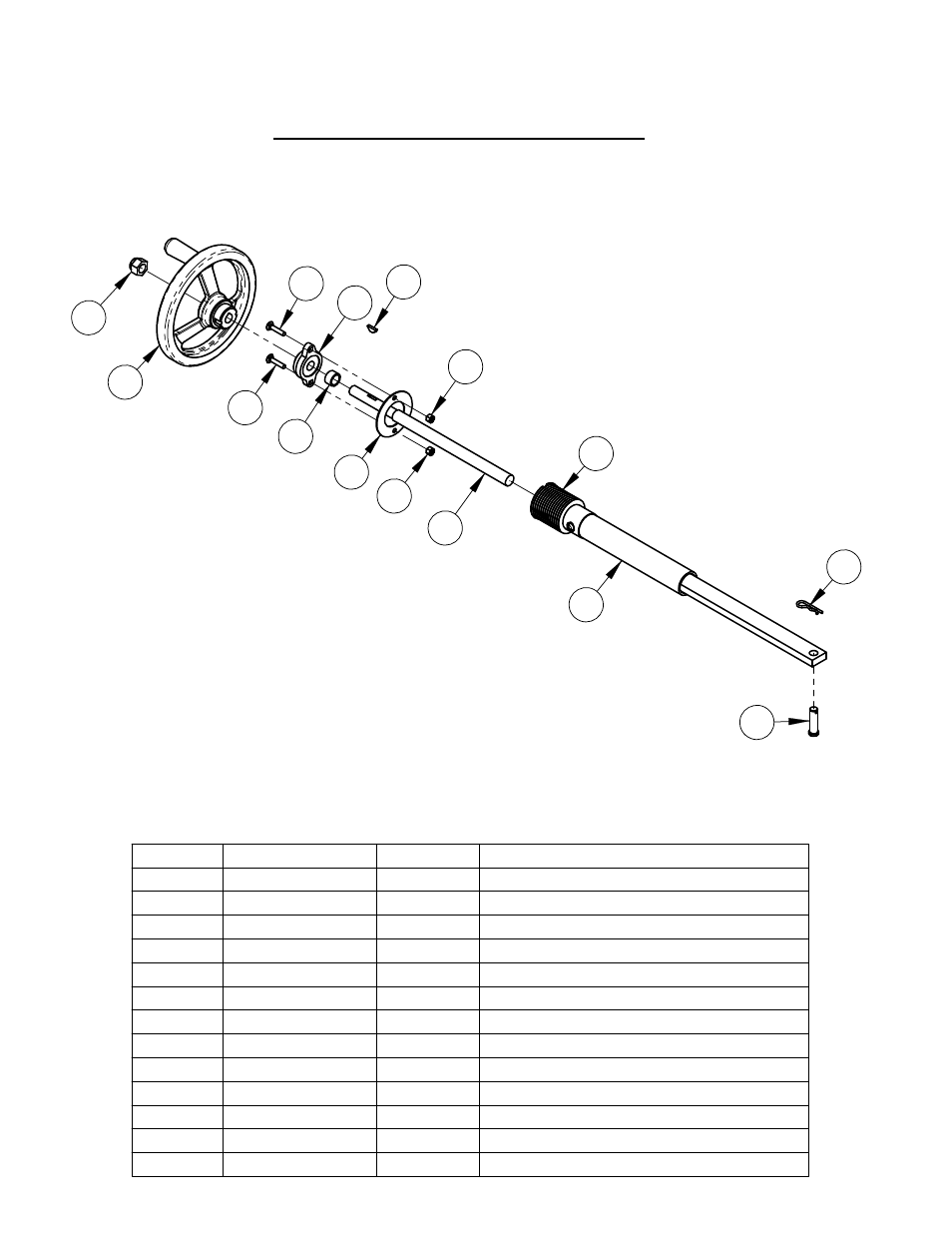

SCREW FEED ASSEMBLY: 6048183
ITEM PART
NO.
QTY
DESCRIPTION
1
6047928
1
Adjustment Shaft W/Grease Fitting
2
2900354
1
Clevis Pin, 1/2" x 1-3/4"
3
2900276
1
Hairpin Cotter, 1/8" x 1/2" to 3/4"
4
2500807
1
Bearing, 5/8", Two Bolt Flange
5
6047929
1
Adjustment Screw
6
6047931
1
Spacer Tube 7/8 x 1/2
7
2900352
1
Woodruff Key, 5/32 x 3/4, #506
8
2900355
1
Lock Nut, 5/8-18, Flex Top
9
2500800
1
Handwheel, 8" x 5/8"
10
2900373
2
Carriage Bolt, 1/4-20 x 1-1/4", GR5
11
2900010
2
Lock Nut, 1/4-20 Nylon
12
6048036
1
Bellow, 8" Long
13
6048038
1
Bellow Mount Washer
1
3
8
9
10
10
4
6
7
5
11
11
13
12
2
13
