Components and Connecting
- 8 -
1.2.2 Connecting Peripherals
To fully utilize the card functions, it supports various ways to connect AW540 Series to peripheral devices. Figure 1.2
shows the different devices that you can connect to the sound card.
Audio Card Output Devices
1.
Front Out
2. Rear Out
3. Center/Subwoofer
4. S/PDIF Out
5. Game/MIDI Port
Audio Card Input Devices
1.
Line In
2. Microphone In
3. CD In
4. Auxiliary In
5. TAD In

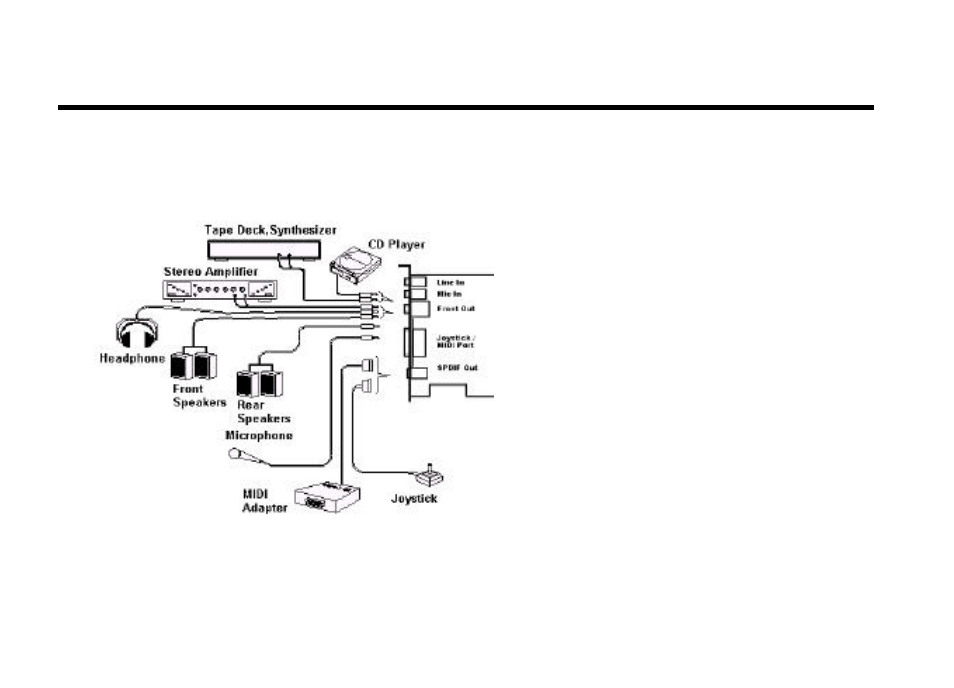

Figure 1.2 Connecting Peripheral Devices
