27
-EN

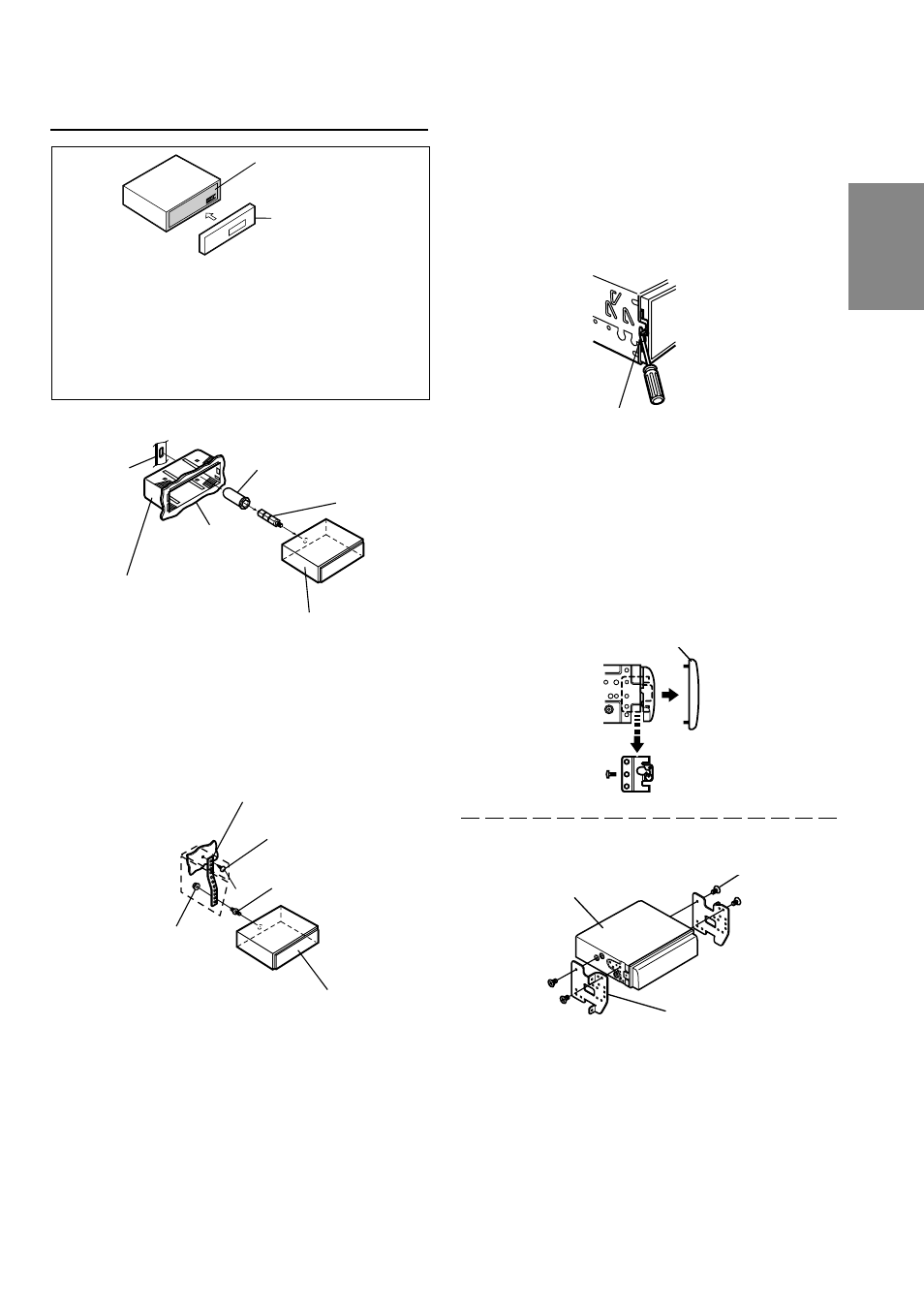

Installation
Caution
When you install this unit in your car, do not remove
the Detachable Front Panel.
If the Detachable Front Panel is removed during
installation, you might press too hard and warp the
metal plate that holds it in place.
1
Remove the Detachable Front Panel (refer to
page 4). Slide mounting sleeve from main unit
(see Removal Procedure below). Slide the
mounting sleeve into the dashboard.
2
When your vehicle has the Bracket, mount the
long hex bolt onto the rear panel of the CDA-
7865R and put the Rubber Cap on the hex bolt.
If your vehicle does not have the Mounting
Support, reinforce the head unit with the metal
mounting strap (not supplied). Connect all the
leads of the CDA-7865R according to details
described in the CONNECTIONS section.
NOTE
For the screw
∗
, provide a proper screw to the chassis
installing location.
3
Slide the CDA-7865R into the dashboard. When
the unit is in place, make sure the locking pins are
fully seated in the down position. This can be
done by pressing firmly in on the unit while
pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard. Install the Detachable Front Panel.
Removal
1
Remove the detachable front panel.
2 Use a small screwdriver (or similar tool) to push
the locking pins to the "up" position (see above
drawing). As each pin is unlocked, gently pull
out on the unit to make sure it does not re-lock
before unlocking the second pin.
3 Pull the unit out, keeping it unlocked as you do so.
Metal plate
Detachable
Front panel
∗
Metal Mounting Strap
Screw
Bolt Stud
Hex Nut (M5)
CDA-7865R
Lock pin
Front frame
Screws (M5
×
8)
(Included)
Mounting Bracket
CDA-7865R
Dashboard
Rubber Cap
(Included)
Bracket
Mounting sleeve
(Included)
Hex Bolt
(Included)
CDA-7865R
