MEA Signal Generator
7
3.2 Setting Up and Connecting the MEA Signal Generator
The MEA-SG is handled in the same manner as a MEA probe for experiments. For detailed
information please read MEA Manual.
Mounting instructions:
1. Open the lid of the amplifier.
2. Place the MEA-SG inside. The orientation of the chip is not important.
3. Replace the lid and close it carefully.
4. Ground the MEA-SG with a CB-GND cable.
3.3 Handling the MEA-SG

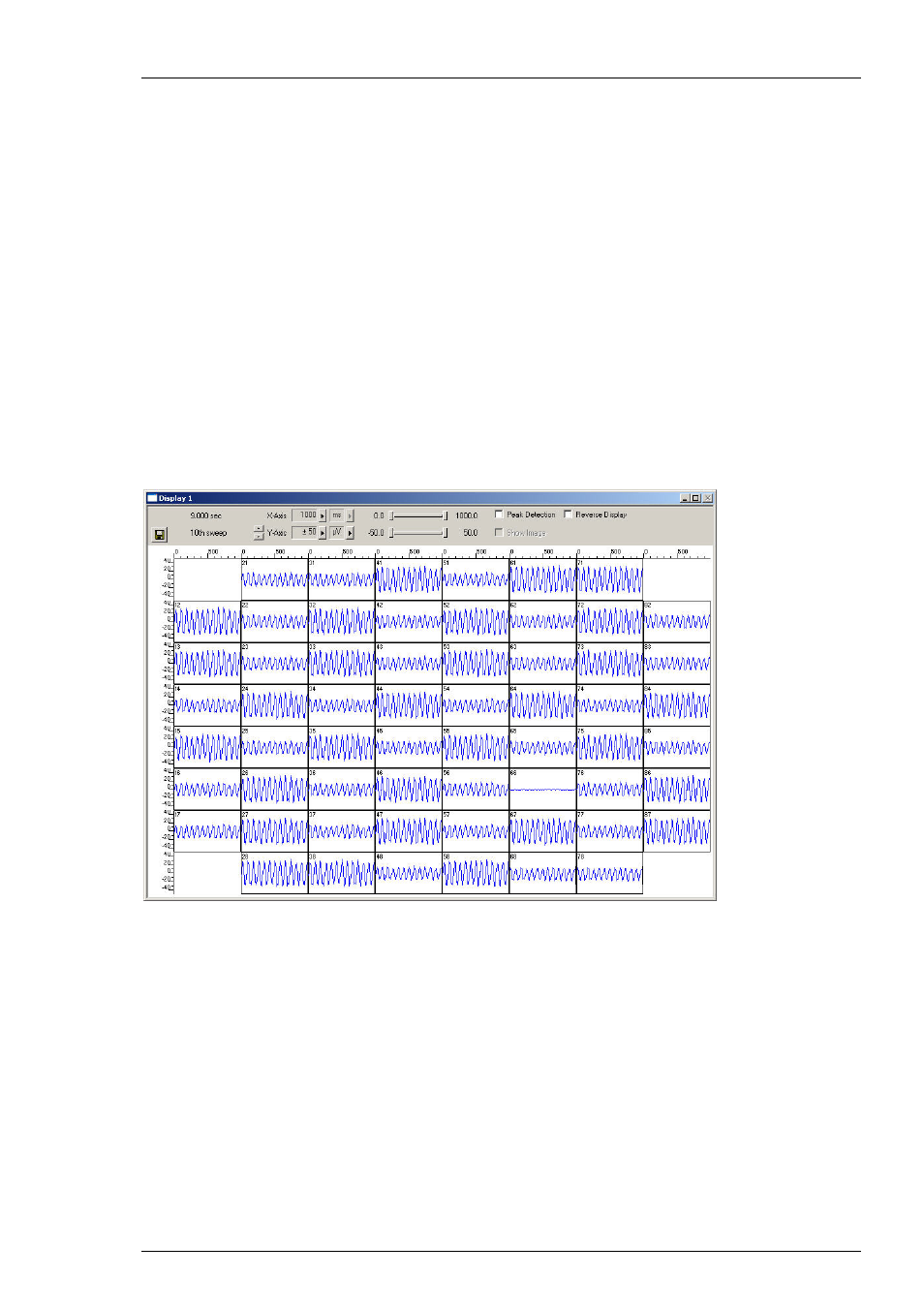

After starting MC_Rack and adding a data display you see your selected signal,
in this case 12.5 Hz sinus waves.
MC_Rack data display
