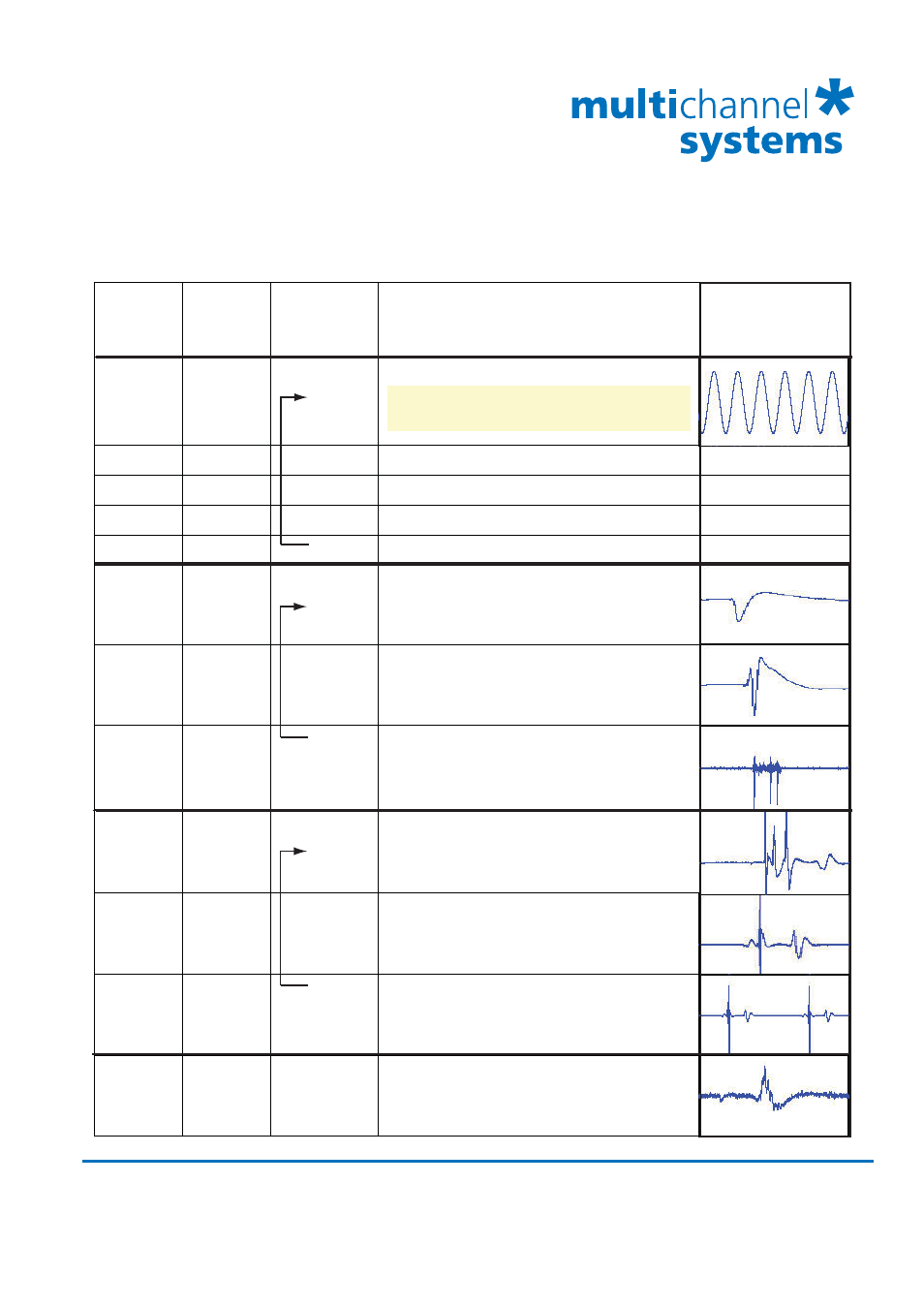

ME/W-SG
Signal Generator for the ME-Systems and the Wireless-System
Switch
Position
1
Switch
Position
2
Control
Button
press
n times
Signal Source
OFF OFF Artificial Sine Wave (1.75 mV) 0.005 Hz
Note: sine waves < 1 Hz might not be
visible because of the hardware filter
bandwidth.
1 Sine Wave 0.01 Hz
2 Sine Wave 0.03 Hz
3 Sine Wave 1.25 Hz
4 Sine Wave 12.5 Hz
ON OFF Hippocampal Slice
EPSP
1 Hippocampal Slice
Population Spike
2 Hippocampal Neurons
Spikes
OFF ON Heart
ECG Atrium
1 Heart
ECG Ventricle
2 Cardiomyocytes
Ventricle FP
ON ON Retina
ERG with Spike
Signal Type
ME/W-SG
ON
ME/W-SG
ON
ME/W-SG
ON
ME/W-SG
ON
Switch ME/W-SG on: Press the control button. Switch off: Press control button longer than two seconds.
