7.3
Technical Specifications
The Wireless-System is a 4-, 8-, 16- or 32-channel wireless in vivo system with headstage,
receiver and interface board. Analog signals are converted in digital data streams in real-time.
Warning: The devices may only be used together with Wireless-Systems from Multi
Channel Systems MCS GmbH, and only for the specified purpose. Damage of the devices
and even fatal injuries can result from improper use. Do not open the receiver or the
interface box and do not change hardware configuration as it could lead to improper
behavior of the system.
General characteristics
Operating temperature 10 °C to 50 °C
Storage temperature 0 °C to 50 °C
Relative humidity 10 % to 85 %, non-condensing
Headstage
Dimensions (W x D x H) 4 channels: 13 mm (+antennae) x 13 mm x 5 mm (+ battery)
8 channels: 16 mm (+antennae) x 16 mm x 5 mm (+ battery)
16 channels: 16 mm (+antennae) x 16 mm x 6.5 mm (+ battery)
32 channels: 16 mm (+antennae) x 16 mm x 7.5 mm (+ battery)
Weight 4 channels: approximately 2 g (+ battery)
8 channels: approximately 3 g (+ battery)
16 channels: approximately 4 g (+ battery)
32 channels: approximately 4 g (+ battery)
Number of analog
recording channels 4, 8, 16 or 32
Amplifier integrated in the headstage
Bandwidth 1 Hz to 5 kHz (0.1 Hz on request)
Resolution 16 bit
Input voltage range + / - 12.4 mV

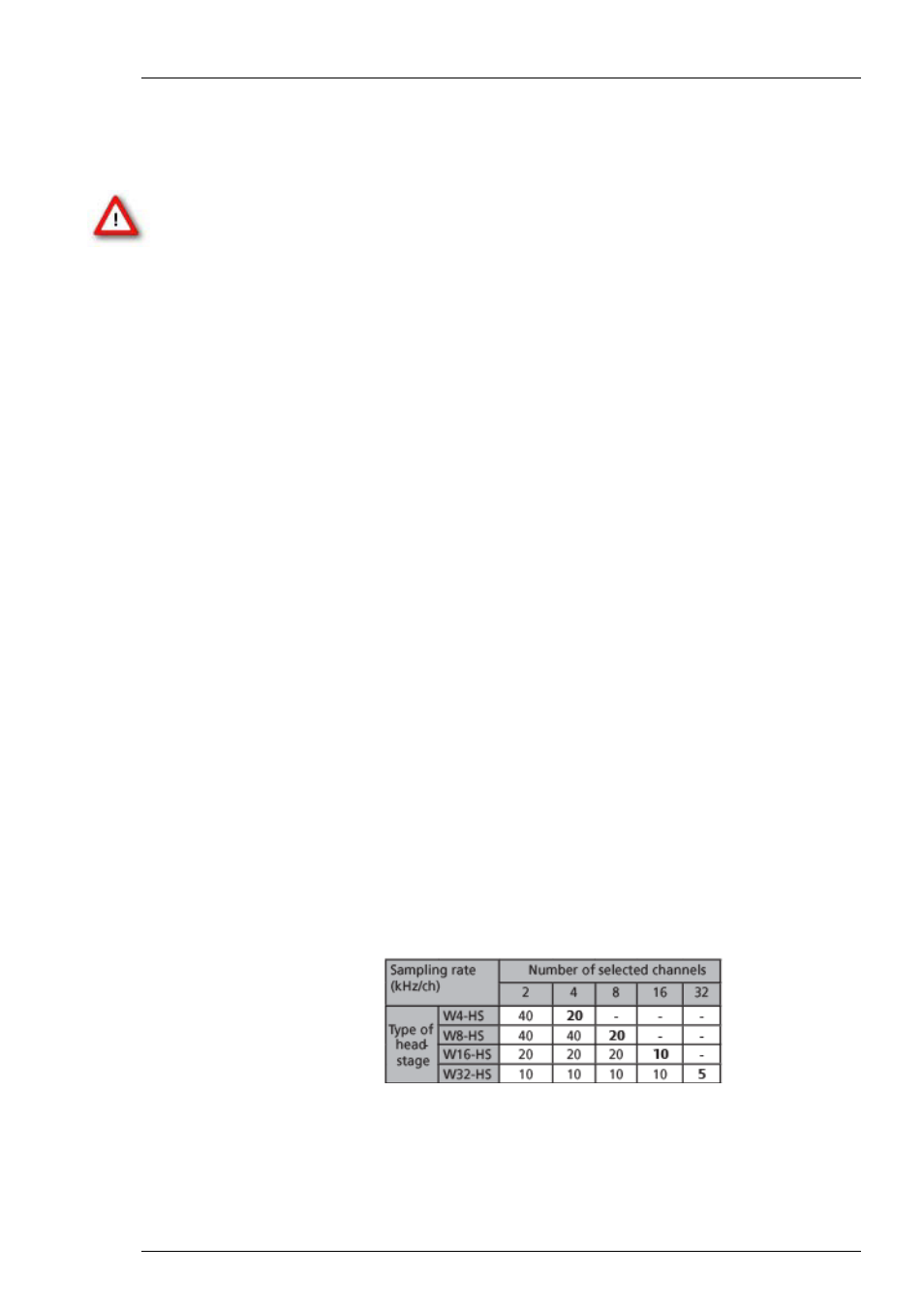

Sampling rate
Distance
for wireless link 5 m guaranteed
