Software
11
4.2
Starting MC_Rack
Connect, for example, a W8-System via USB high speed cable to the data acquisition computer.
Open MC_Rack program.

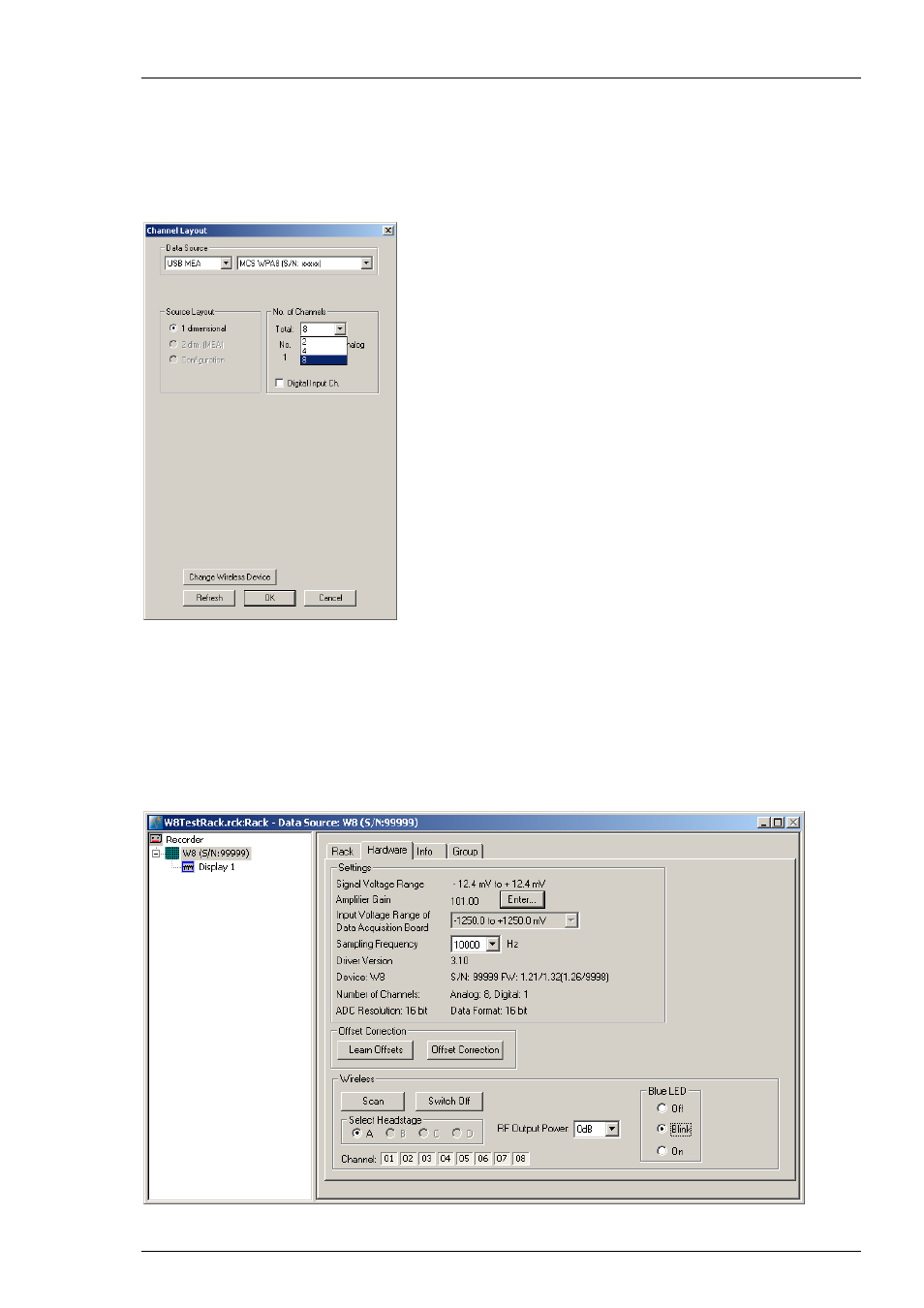

In "Edit" menu choose "Data Source Setup". The following “Channel Layout” dialog appears.
Select USB-MEA in the left drop down menu of "Data Source". The W8-System "MCS WPA8
(S/N xxxx)" will automatically appear in the right drop down menu. In "Source Layout" the check
box “1 dimensional” is predefined and the "Number of Channel" in total is “8”.
Enable the check box "Digital Input Channel" if you want to display external TTL signals, feeded
into the W8-System via Lemo connectors on receiver and interface board. Deselect the check box,
if you do not need additional digital channels.
Add the W8-System and a display to the virtual rack. Click "Hardware" tab.
