Mounting and Aiming Your Camera
Mount on Dual Track System
The XTC400 was designed with an innovative 3 point mount system on
both sides and the bottom of the camera. This allows you to mount it on
any side with ease.

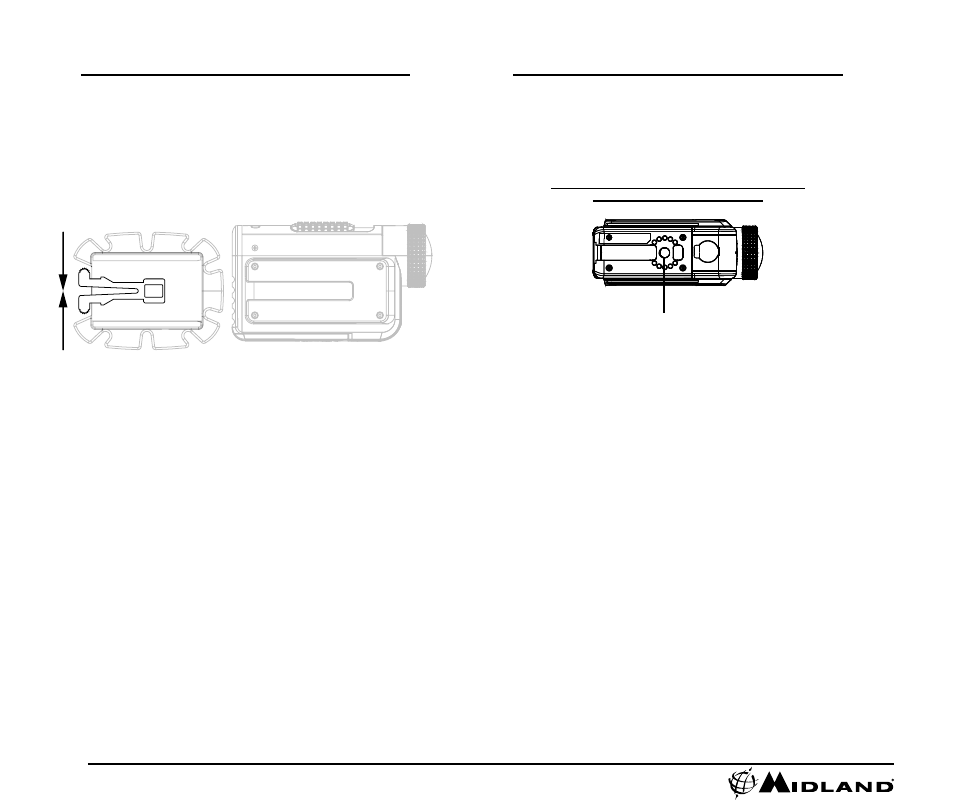

To mount the camera on the basic mount, slide the camera onto the
track system with the notches on the mount facing toward the back of
the camera.
To detach the camera from the mount, squeeze the mount release tabs
and slide the camera forward.
Aiming the Camera when mounted with the dual track mount:
When mounting the camera on a helmet, you must do the following:
1. Consider what you would like to shoot and mount the camera
accordingly- left side, right side or top.
2. Find a flat surface and ensure the area is clean of dirt and debris.
Remove the cover of the adhesive pad and adhere to the helmet.
3. Once attached, adjust the camera to be sure you are filming in the
intended direction
4. If needed, rotate the lens to maintain an upright viewing angle
5. To see where your camera is aimed, enable Wi-Fi (pg 6) and use your
Android / IOS device with the app as a viewfinder.
Mounting and Aiming Your Camera
Mount using the Thread Mount
On the bottom of the XTC400 is a standard thread mount that allows
the camera to be mounted to a tripod or other fixture with a 1/4-20 (1/4”
diameter, 20 threads per inch) 5/16 deep thread. To attach the camera,
insert the screw on the mount into the camera thread and rotate the
camera clockwise to tighten down onto the screw.
Note: Over tightening may cause damage
to the mount and/or camera
Tripod Mount
Aiming the Camera when mounted with the thread mount:
When mounting the camera on a thread mount, follow these steps:
1. Consider what you would like to shoot and mount accordingly.
2. Ensure, once attached, that the camera is aimed straight and not toward
the ground or at the sky.
3. If needed, rotate the lens to maintain an upright viewing angle
4. To see where your camera is aimed, enable Wi-Fi (pg 6) and use your
smartphone with the app as a viewfinder.
