Electronic Oven Control
TIMER
CLOCK
+
HRS
+
MINS
HRS MINS
OFF
WM
500
BROIL
250
450
550
PREHEATED
OVEN
400
350
300
200
LOCKED
CLEAN
OVEN LIGHT
SURFACE

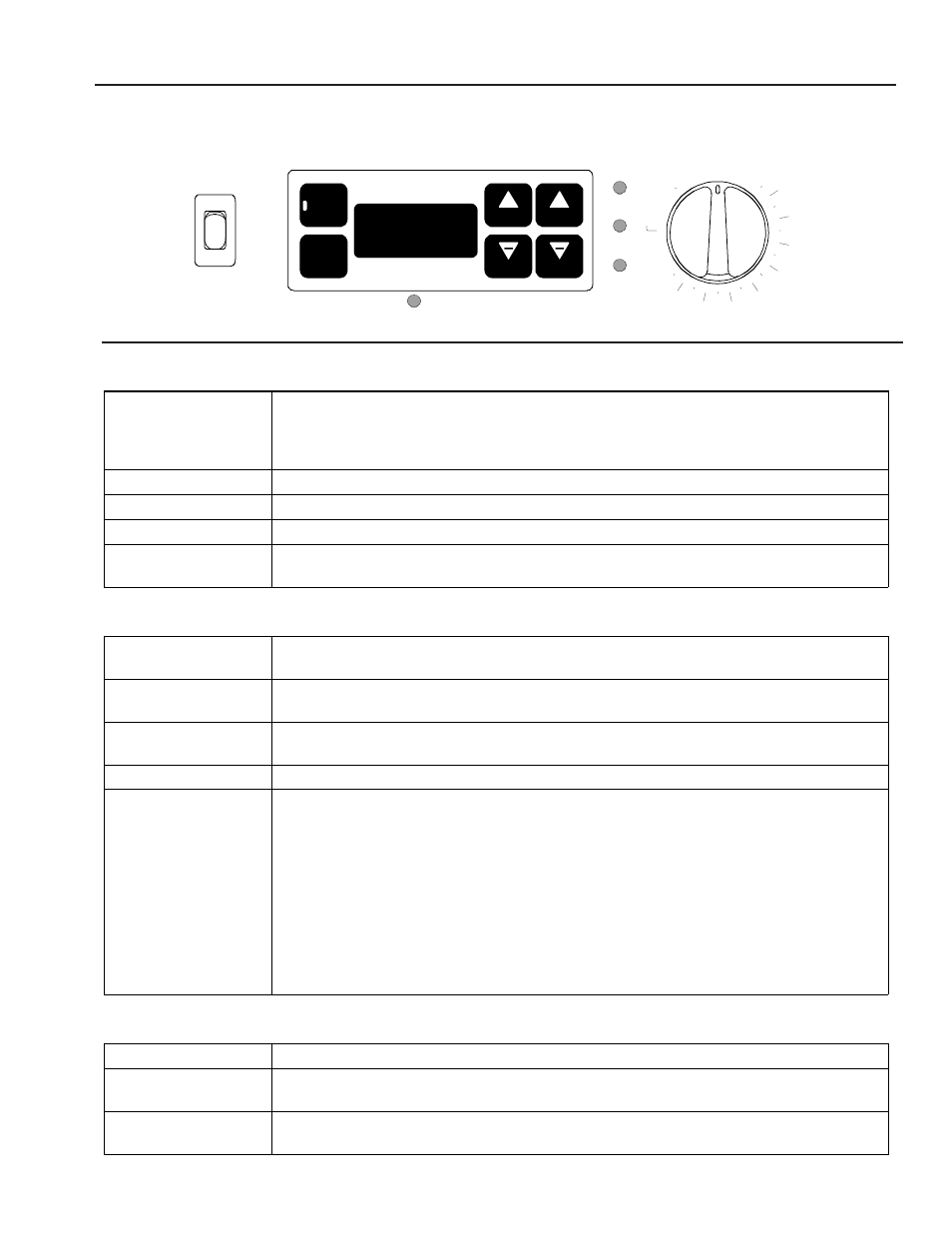

Electronic Oven Control
Pads and Knobs Description
TIMER Pad Selects timer feature. Timer can be set up to 11 hours, 59 minutes. Timer does not
control oven operation.
TIMER pad has light that flashes when timer is being set and
glows when timer is counting down. Timer light allows user to identify timer mode
quickly and easily.
CLOCK Pad Pad is pressed to set clock and turn clock display on and off.
HRS Pad Pads increase or decrease time by hours.
MIN Pad Pads increase or decrease time by minutes.
Temperature Knob Controls oven temperature, self-clean, and broil. Push-to-turn knob prevents
accidentally turning oven on.
Panel Lights Description
OVEN Light Glows when oven is on. Light flashes after self-clean cycle turns off as a reminder to
turn temperature knob to
OFF.
LOCKED Light Glows when oven door is locked and oven is set for self-cleaning. After self-clean
cycle, light flashes. Unlatch oven door and turn temperature knob to
OFF.
PREHEATED Light Glows when oven reaches selected temperature. Light remains until control knob is
turned to OFF.
Time display Shows the time-of-day and timer minutes.
Surface Element
Indicator Light
Some ranges have two indicator lights, one for elements on right side and one for
elements on left side of range. When either front or rear element is on, corresponding
indicator light glows.
Some ranges have one indicator under clock. When any element is on, indicator light
glows.
On smoothtop ranges, after the surface controls are turned off, the appropriate surface
indicator light will continue to glow until the surface elements have cooled. The time
each light remains on will vary. Do not expect the lights for two different heating areas
to go off at the same time even if the elements were turned off simultaneously.
Oven Signals Description
Pad Signal When pad is pressed, oven control beeps.
Timer signal After time elapses, timer beeps approximately once a second until TIMER pad is
pressed.
Preheat signal After selecting a baking temperature, oven preheats. When oven reaches set
temperature, six 1-second signals sound.
