34 ASUS CUVL-VM User’s Manual
3. HARDWARE SETUP
Connectors
3. H/W SETUP
11) ATX Power Supply Connector (20-pin block ATXPWR)
This connector connects to an ATX power supply. The plug from the power supply
fits in only one orientation because of the different hole sizes. Find the proper
orientation and push down firmly making sure that the pins are aligned.
IMPORTANT: Make sure that the ATX power supply can supply at least 10mA
on the +5-volt standby lead (+5VSB). You may experience difficulty in turning
the system ON if the power supply cannot support the load. For Wake-On-LAN
support, the ATX power supply must supply at least 720mA +5VSB.
CUVL-VM

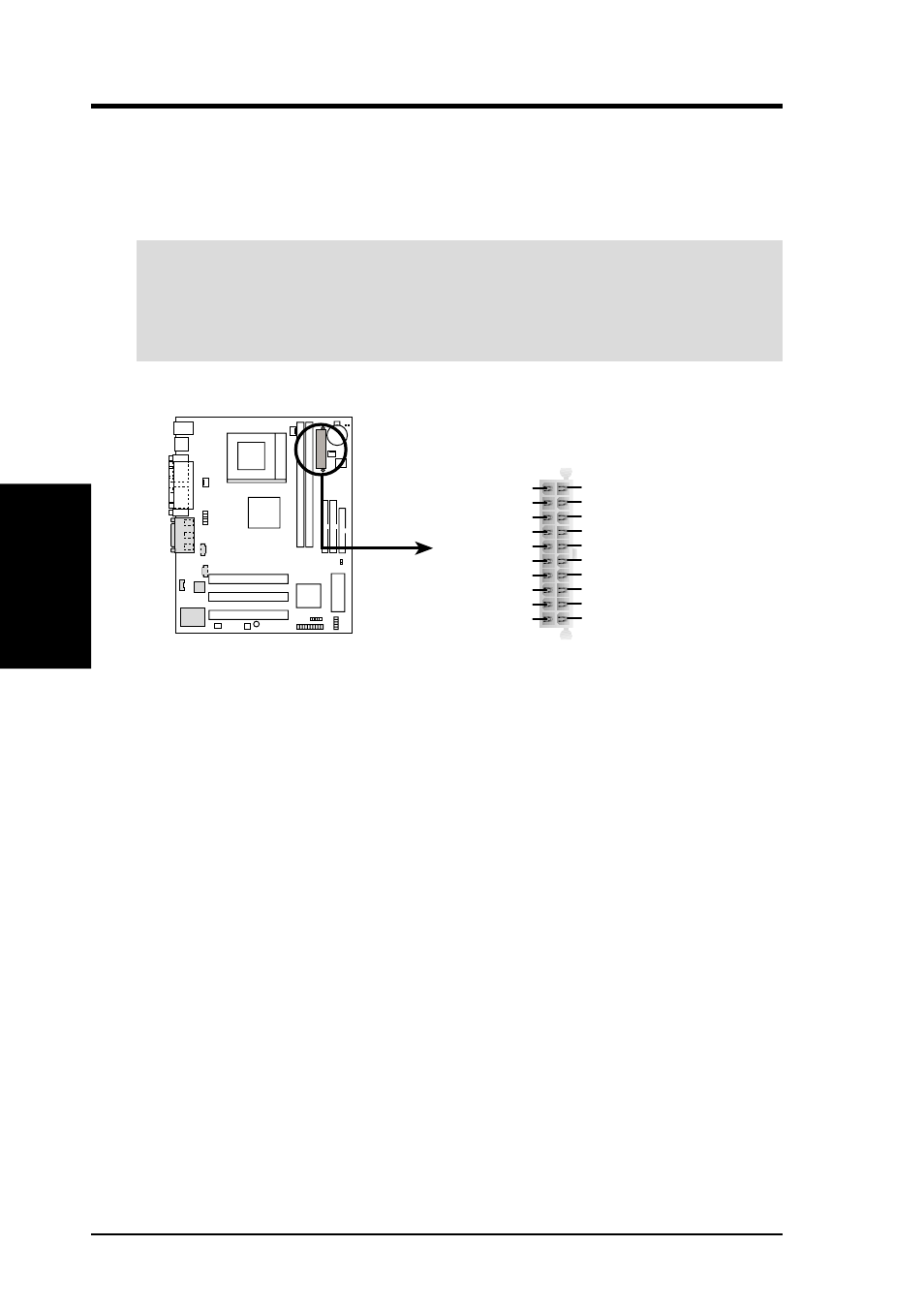

CUVL-VM ATX Power Connector
+3.3 Volts
-12.0 Volts
Ground
Power Supply On
Ground
Ground
Ground
-5.0 Volts
+5.0 Volts
+5.0 Volts
Power Good
+12.0 Volts
+3.3 Volts
+3.3 Volts
Ground
+5.0 Volts
Ground
+5.0 Volts
Ground
+5V Standby
