Technical specifications:
CheckPoint:Family CheckPoint:Gate™
Family member DnD-Portal™
electronics Industrial PC, hard disc, CD-RW disc drive, LC-display, keyboard with mouse, printer interface, USB device
Detectors 6 large volume plastic scintillation detectors
RPD 25/125-O
approx. 755x 670x 80 mm external dimensions; 32kg
Power requirements 230 V 0.63 A 50/60 Hz

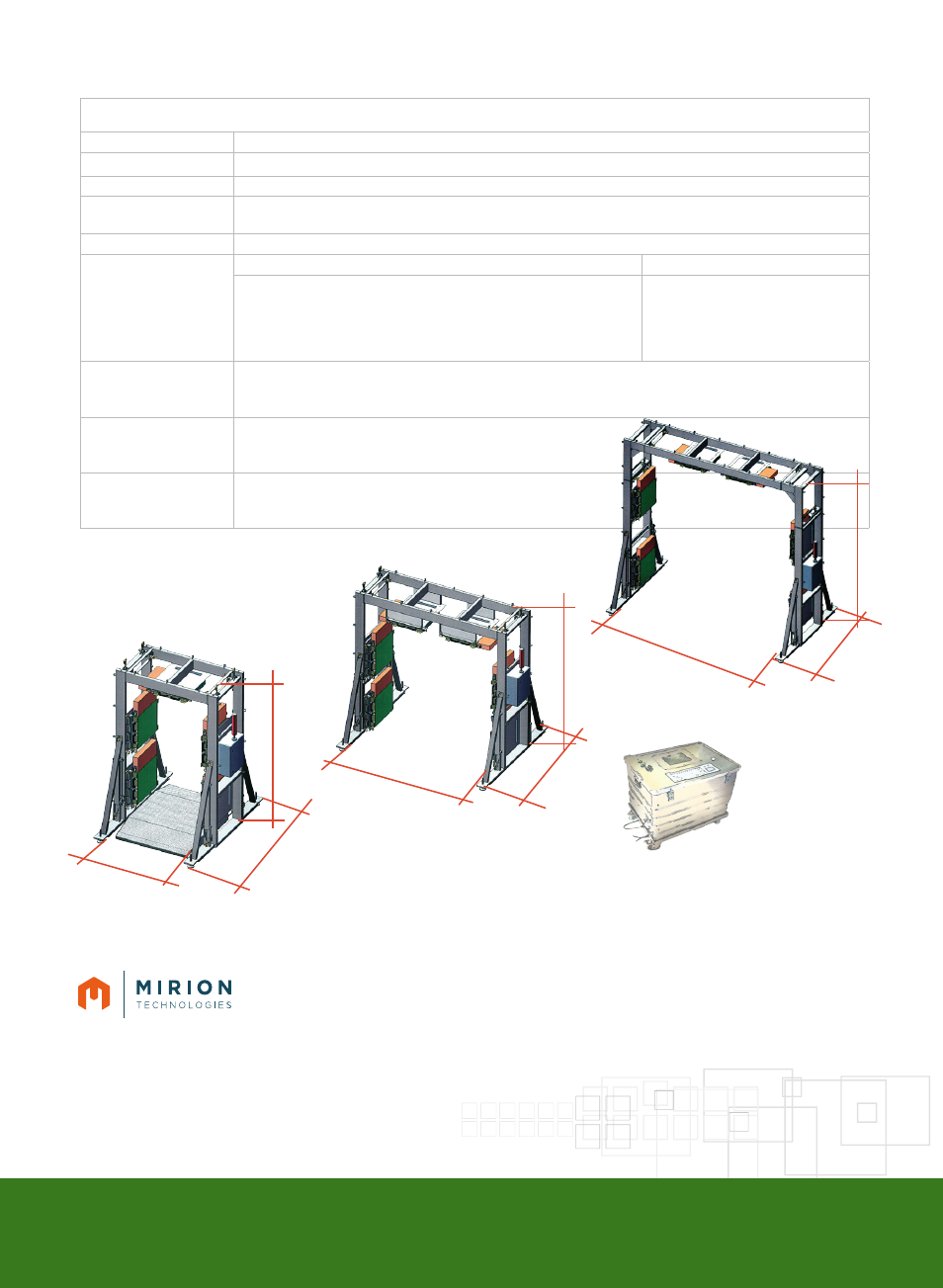

Dimensions
(see also figure)
external (WxHxD) internal (WxH)
Container 6058x2438x2896 mm
DnD-Portal™ Person 1700x2500x2070 mm
DnD-Portal™ Car 2700x2500x2070 mm
DnD-Portal™ Truck 4450x3300x2070 mm
Overall weight approx. 11,100kg (4,100 kg Monitor + 7,000 kg Container)
approx. 1000x2000 mm
approx. 2000x2000 mm
approx. 3000x3000 mm
Transport features The carriage and storage container of the DnD-Portal™ can transported with an adequate crane or fork lift truck.
The container provides 4 lifting accessories at the upper vertices for lifting via crane and 2 forklift tubes for lifting via
fork lift truck. On final destination of DnD-Portal™ can easily be assembled.
Deployment
requirements Plane and solid surface:
Weather protected space for PC work station cubicle for operator
Clean power supply
IP rating IP67 for portals
IP54 for PC workstation cubicle
7NUC_DnDPortal_Y016-019E_PDB
RADOS DnD-Portal™
CheckPoint:Gate™ family
4876
width
1000
height
min 2000
width
2000
height
min 2000
length
min 2000
length
min 2000
DnD-Portal™ work station cubicle
length
min 2000
width
3000
4876
height
min 3000
