Maintenance and Service
5.5 Side brooms
When completing any mainte-
nance and repair work, switch
the machine off via the key
switch to prevent the drive be-
ing started up inadvertently!
1 Seat console
2 Safety support
3 Adjusting bolt, side broom, right
4 Side broom
5 Retaining screws, side broom
Side broom, left (option)
The work to adjust and change
the optional left-hand side
broom must be completed in
the same sequence as for the
right-hand side broom.

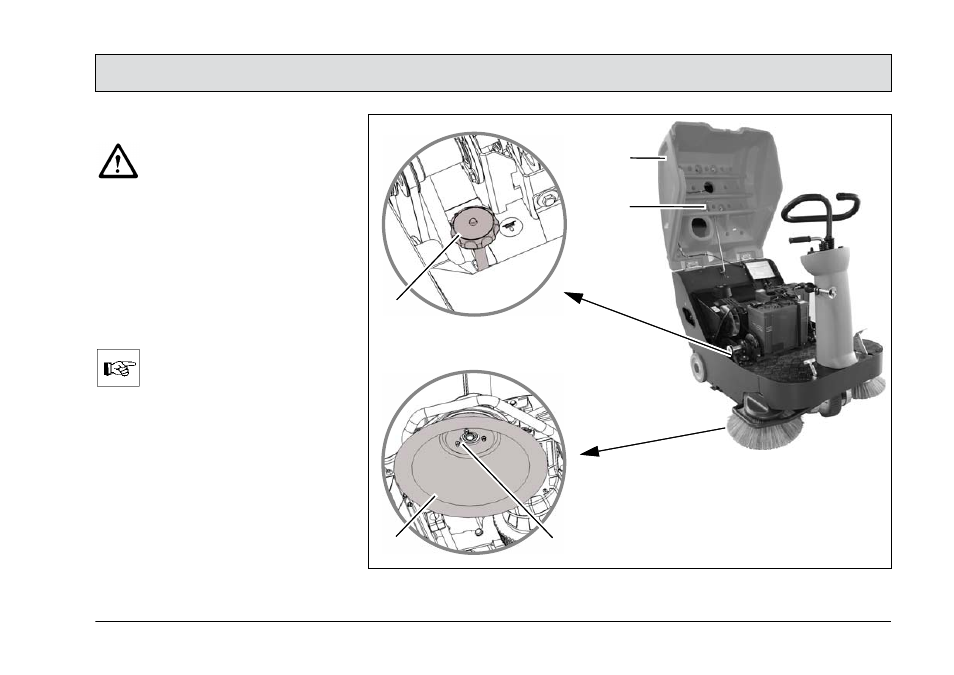

Fig. 19
1
1
2
3
4 5
