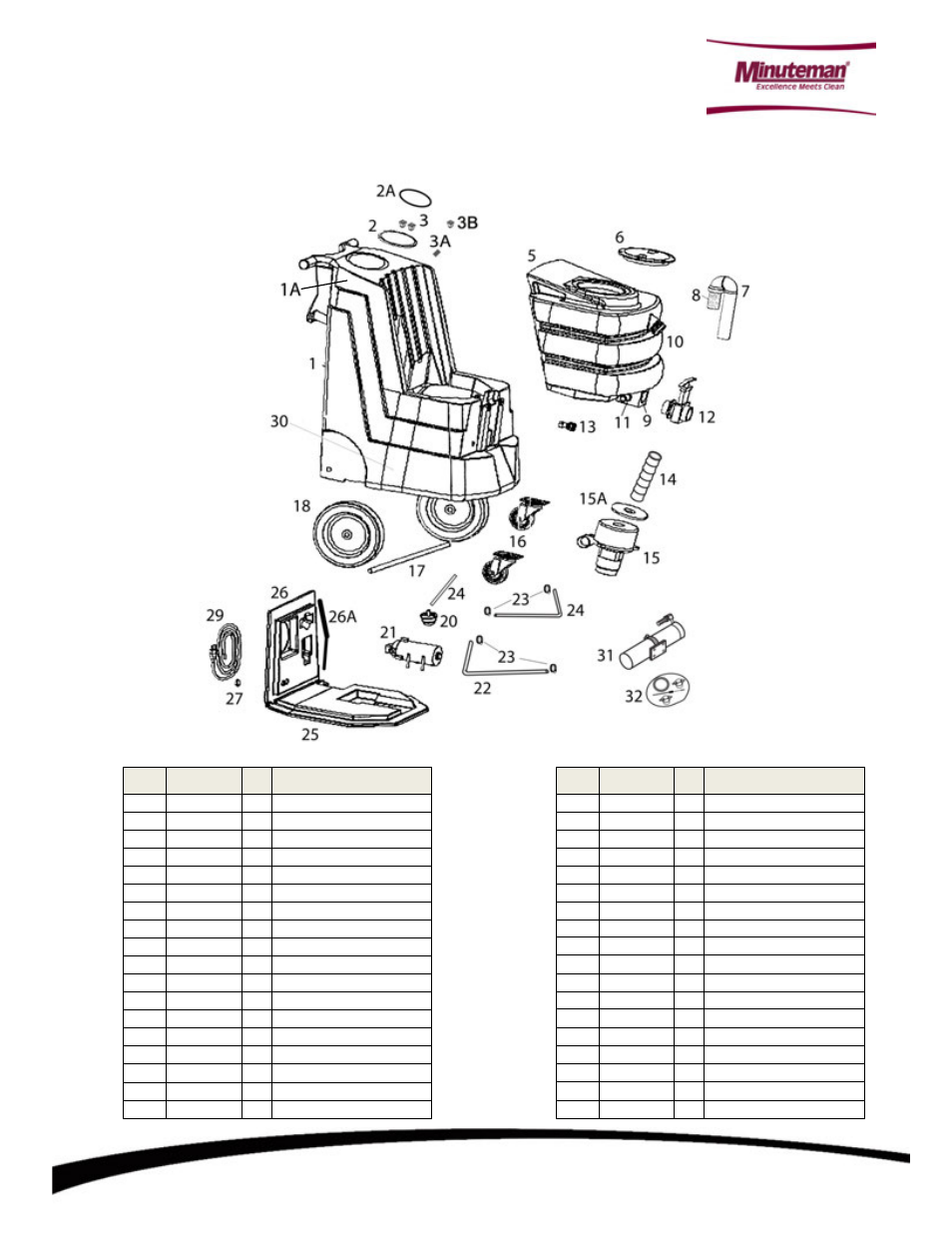

Minuteman H-BOX 200 User Manual
Page 9
Parts and Instruction Manual
9
Item
Part No. Qty Description
16
121307
2 Caster
17
121328
1 Axle
18
121308
2 Wheel, 10”
19
121309
2 Axle cap
20
121310
1 Filter, in‐line
21
121311
1 Pump, 100 psi
21A
121312
1 Pump, 200 psi
22
121329
1 Hose, pump outlet, 48”
23
121330
6 Hose clamp
24
121331
2 Hose, pump inlet, 6”
25
121332
1 Pallet, bottom
26
121333
1 Pallet back
26A
121334
1 Gasket, 45”
27
121313
1‐2 Retainer, cord
29
121314
1‐2 Power cord
30
121335
2 Decals
31
121315
Heater, complete
32
121316
Heater repair kit
Item
Part No. Qty Description
1
121317
1 Holding tank/Base
1A
131300
2 Power cord hanger
2
121318
1 Switch plate
2A
121319
1 Gasket, switch plate
3
121301
1 Plug on no‐ heated
3A
121320
1 Switch 2 HP
5
121321
1 Recovery tank
6
121302
1 Lid and ring, recovery tank
7
121322
1 Ball float holder
8
121303
1 Ball float
9
121323
1 Access plate
10
121324
1 Hose barb for vac hose
11
121325
2 Bracket, recovery tank
12
121326
1 Drain valve, recovery tank
13
121304
1 Quick disconnect, female
14
121327
1 Hose, wire reinforced, 24”
15
121305
1 Vacuum motor, 3‐stage
15A
121306
1 Gasket, vacuum
C100 & H200
Schematic and Part List
