22
• 390070 - Upholstery Tool (Requires Hose Assembly)
• 831255 Scrub/Vacuum Wand (Requires Hose Assembly)
• 828924 or 830750 - Hose assemblies for non-motorized tools.
Do not require QC coupler (G)
• 831019 Pump-Out Hose
• 17603 Vac Out Hose
C B
A
G
D
E
F

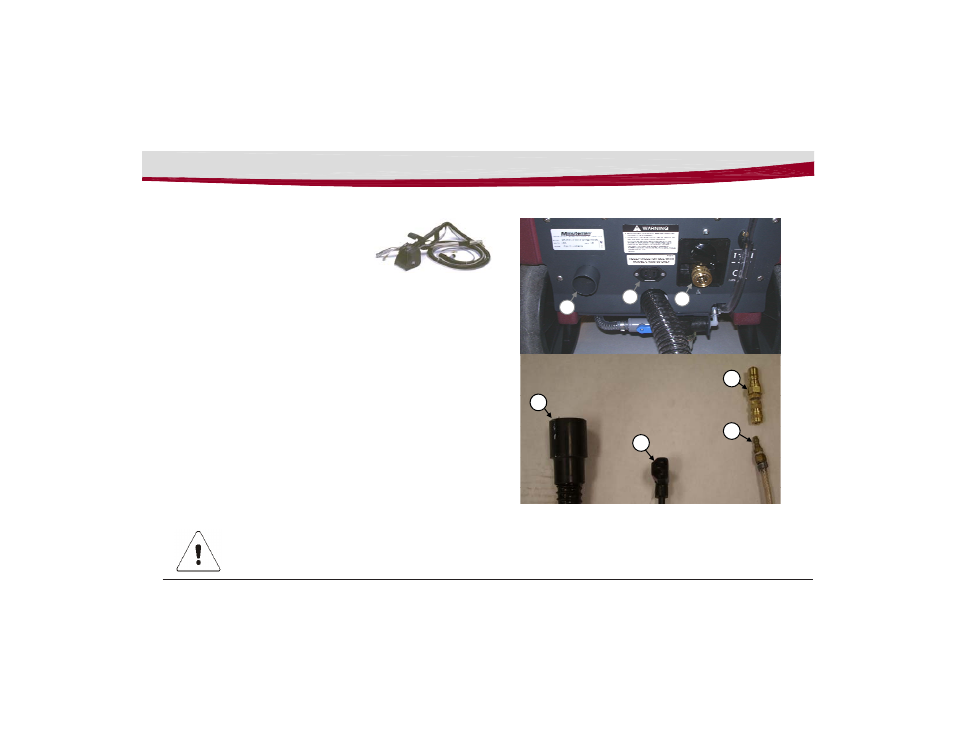

Accessories
• (X17115) C46300-00 - Motorized Tool
• (X17230) C46300-02 - Motorized Tool
Only this tool may plug into the Auxiliary
Power (B).
• The vacuum hose as shown on Page 13 Item (G) must be first
disconnected from the machine back panel. Connect the Suction Hose
(D) tool to the Vacuum Inlet (A).
• Connect the tool Power Cord (E) to the Auxiliary Power (B).
• A Coupler-Quick Connect (G) (p/n: 450295) is required to connect
the tool Solution Hose (F) to the quick-connect Solution Coupling (C).
To turn ON the tool, the auxiliary switch in the machine handle must be
in the (II) position as shown on Page 14 Item (D). The vacuum switch
must also be turned on when using the motorized tool.
Machine Overview
Caution! Brush motor must be turned OFF when using auxiliary function. If the brush motor is ON, damage to
carpet my occur.
