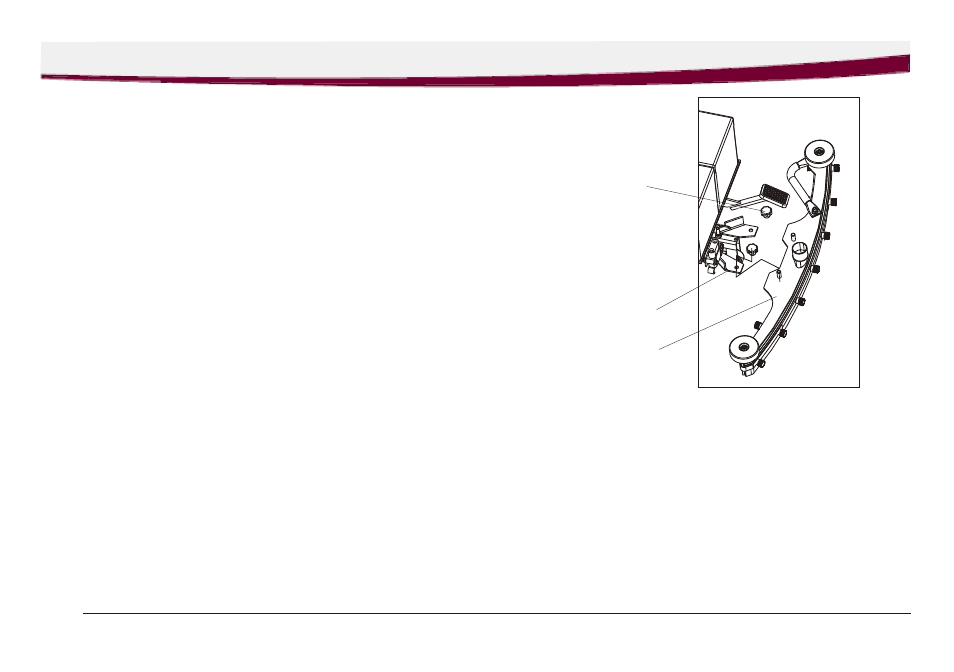

1.squeegee
2.squeegee knob
3.squeegee bracket group
Replacement of sealing strips
The sealing strips can be removed
Without needs of tools, as follows
Remove the squeegee (refer to section "Removal of squeegee")
Unscrew the knob lip.(1)
Remove the supporting strips (2)
And the sealing strips (3).
Removal of squeege
Lift the squeege
Un screw the squeege knob(2)
Removal the squeege towards the bottom side
Mount the new sealing strips by inverse sequence of operation.
Tightening of the knurled nuts (just slightly, by hand) has to be done starting from the center towards outside (sealing
strips with slots to frontside, and plain one to the rear)
Note: If worn, the rear sealing strip can be turned at the frontside edge.
Note: The supporting strip may
Modify the sealing strip effect, hard-soft, and thus be adapted to different floor conditions.
