20
Dirt Hopper Guiding Rail (Fig. 6/1)
The dirt hopper located at the cylindrical
brush deck is fastened by a guiding rail. This
dirt hopper may be easily removed for
cleaning.
Lever for Cylindrical Brush Seating
(Fig. 6/2)
This lever (both sides) is used to release/
lock the cylindrical brush seating. The
cylindrical brushes may be easily removed
without tools.
Swing Aside Squeegee
In the lifted position the squeegee can swing
to allow passage through tight spaces. This
can be done by foot or by hand by swinging
the squeegee to the left in the area of the
deflector bail / deflector roller until the locking
pin (Fig. 6/3) catches. In order to release
locking of the squeegee, actuate the hand
lever (Fig. 5/3) of the squeegee lift lever
(lowering).

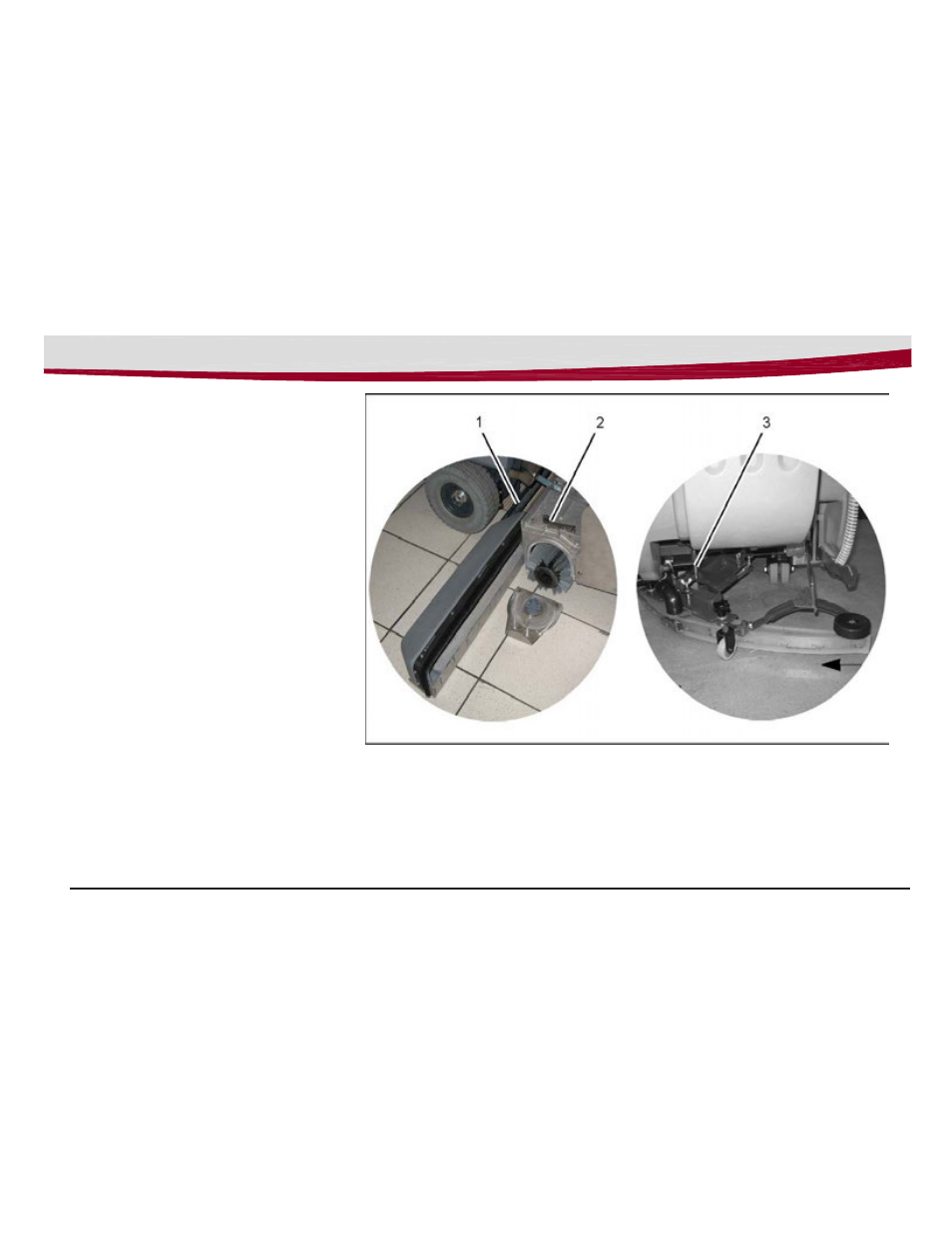

Fig.6
1 Dirt hopper guiding rail
2 Lever for cylindrical brush seating
3 Locking pin
Operation
