TDS_LPE_11U_6K0_10K_1UL_V010.doc Technical Data Sheet LP 11 924 Series 6 & 10 kVA
UPS Dimensions
Model
Dimensions Inch (mm) UPS weight
H W D lbs (kg)
LP 6-11U 924 26.8 (681) 12.3 (323) 28.7 (729) 198 (90)
LP 6-11U 924 /120 39.2 (996) 12.3 (323) 28.7 (729) 354 (161)
LP 6-11U 924 /277 39.2 (996) 12.3 (323) 28.7 (729) 304 (138)
LP 10-11U 924 26.8 (681) 12.3 (323) 28.7 (729) 251 (114)
LP 10-11U 924 /120 39.2 (996) 12.3 (323) 28.7 (729) 405 (184)
LP 10-11U 924 /277 39.2 (996) 12.3 (323) 28.7 (729) 354 (161)
External Battery
UPS Model
Battery Details
Battery cabinet dimension
Inch (mm)
Weight of
Cabinet
+
Batteries
lbs (kg)
No. of
batteries
Battery part
number
H W D
LP 6-11U 924
LP 6-11U 924 /120
LP 6-11U 924 /277
20 BATLP116-924
43
(1092)
40
(1076)
32.5
(826)
1538
(699)
LP 10-11U 924
LP 10-11U 924 /120
LP 10-11U 924 /277
20 BATLP1110-924
43
(1092)
40
(1076)
32.5
(826)
1764
(802)

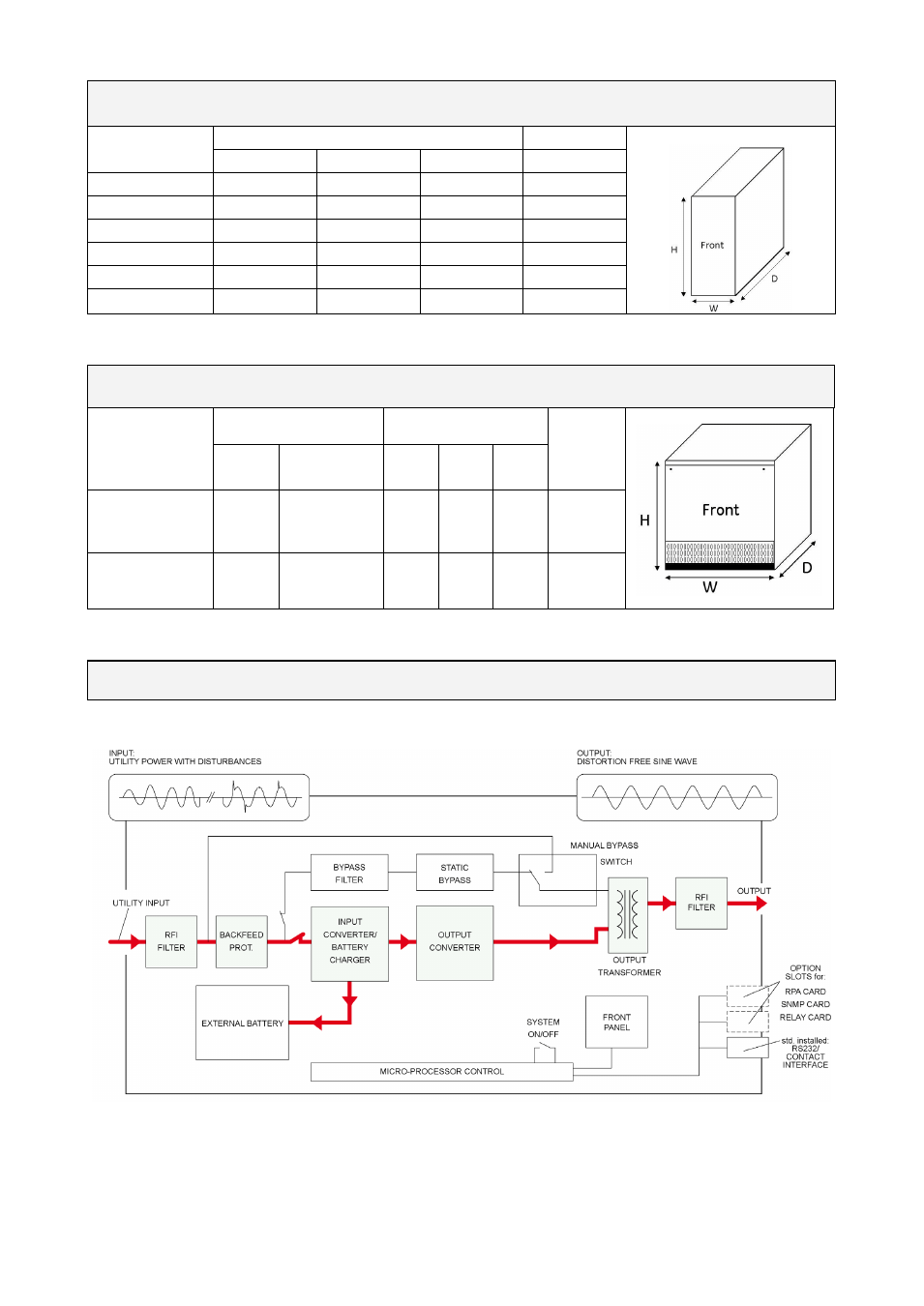

UPS block diagram, protections and cable sections
