Modifications reserved Page 4/5
TDS_LPE_11U_6K0_10K_1UL_V010.doc Technical Data Sheet LP 11 924 Series 6 & 10 kVA
Bypass
Primary components
- Thyristor switch
- Synchronization circuit inverter/bypass utility
Bypass voltage limits - 15% - +10% of nominal
Frequency tracking range +/- 2, 4 or 6% of nominal, selectable
Slew rate 1Hz/s or 5Hz/s, selectable
Bypass Miniature circuit breaker (MCB) A 32 63
Overload capability on bypass, 1 minute/10 minutes A 45/30 70/60
Customer interface connections
Potential free contacts
Four open-collector contacts signaling following alarms:
- bypass active
- mains failure
- battery low
- general alarm
Serial port (on Delta 9 pin connector) For serial communication
Input terminals for
- Emergency shutdown
- Battery extension Miniature Circuit Breaker alarm wiring
Controls, signals and alarms
Front Rear
Operation/Alarm : green/red LED
LCD screen : 2 x 16 characters
Push-buttons
Buzzer (resettable)
* = optional
3 optional slots for : RS232 interface card (std installed)
: Potential free contacts*
: SNMP*
: RPA* redundant parallel architecture
On/off switch
Manual bypass switch
Input/Output terminals
DC connector for external batteries
Line circuit breaker
Bypass circuit breaker
The LCD screen shows UPS system data, status messages, alarm messages, settings.

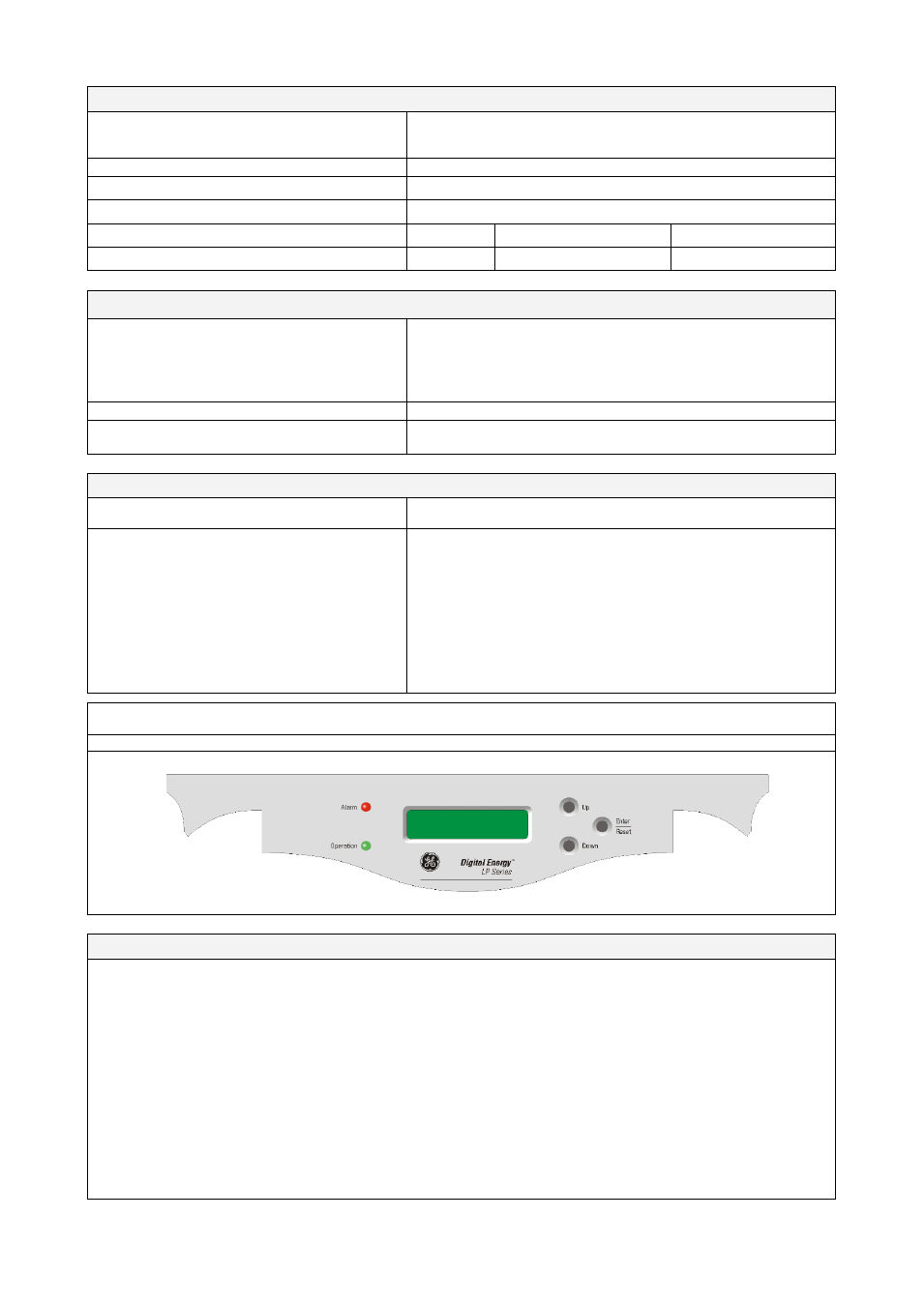

Front panel
Optional features
SNMP interface card
An SNMP interface card can be placed in the rear panel of the UPS, and allows the data interface to be connected directly to
an Ethernet network.
When this option is installed the serial communication link is no longer available to the user.
Relay card
The relay plug-in card can be installed in the rear panel of the UPS. The card is provided with four potential free contacts
representing: battery low, bypass active, utility failure and general alarm.
Connectivity products
Interface kits (cables and/or software) are available for operating systems supporting JAVA and most commonly used
network operating systems, including Novell, UNIX, VMS, Windows platforms, IBM AS/400, IBM OS/2, LINUX.
Please contact GE for specific information.
Note: all indicated values are typical. Variations may be found from one unit to another.
