RT-2000 Remote Trigger Manual
Rev. 12/2012 Page | 16
Making Connections:
To make the connections disassemble the connector plug attached to the side of the
control box. Use 1/4 inch poly tube, MVP number 01417 and Hose Clamp 7701-2-1 to
make connections between the connector plug and component. Connections are made
by sliding the Hose Clamp onto the correct poly tube pushing the poly tube onto the
correct barb fitting and thread the Hose Clamp over the poly tube and barb fitting. It is a
good idea to mark both ends of each piece of tubing to aid in trouble shooting and
plumbing.

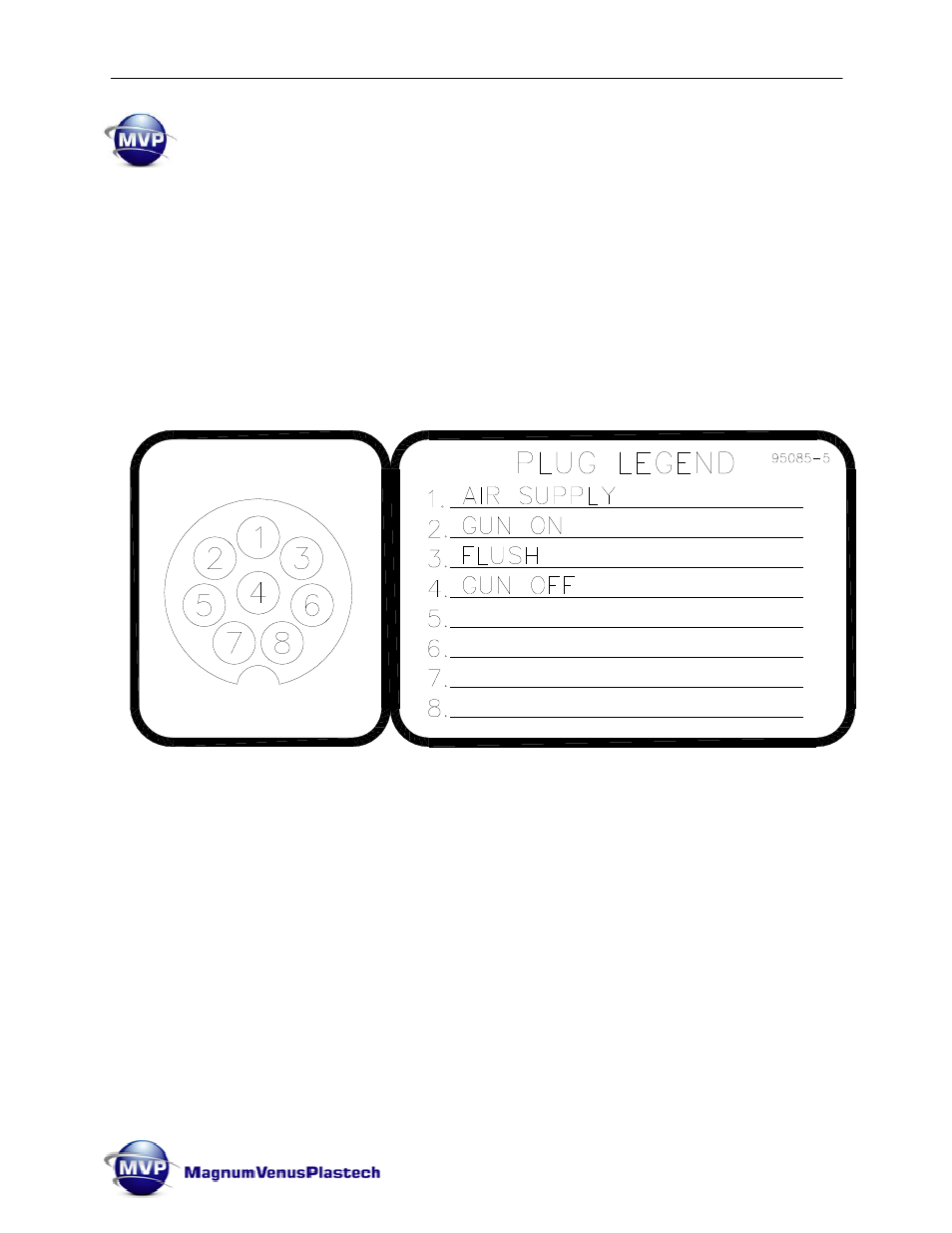

Below is a diagram of the signal connections for the RT-2000.
It is best to organize and plan the routing of the tubing as it is installed to make the
installation easier and look better. Use plastic ties or tape to pair similar tubing and
control the tubing bundle.
Plug Disassembly:
1. Remove the four screws holding the outer shell of the plug together.
2. Remove the inner guard from the plug shell. Remember to put the tubing
through the inner guard before connecting it to the barb fitting.
