Magnum Venus Plastech Powerhead MPH_VPH–3250 Series User Manual
Page 19
MPH / VPH – 3250 Series Manual
Rev. 05/2012
Page | 19
6. Install the Valve Exhausts (MPH-2522) onto the Upper and Lower Valve Blocks.
One side of the Valve Exhausts has three holes, one of the holes must line up with
the machined holes in the Upper and Lower Valve Block. (See Figure 4)

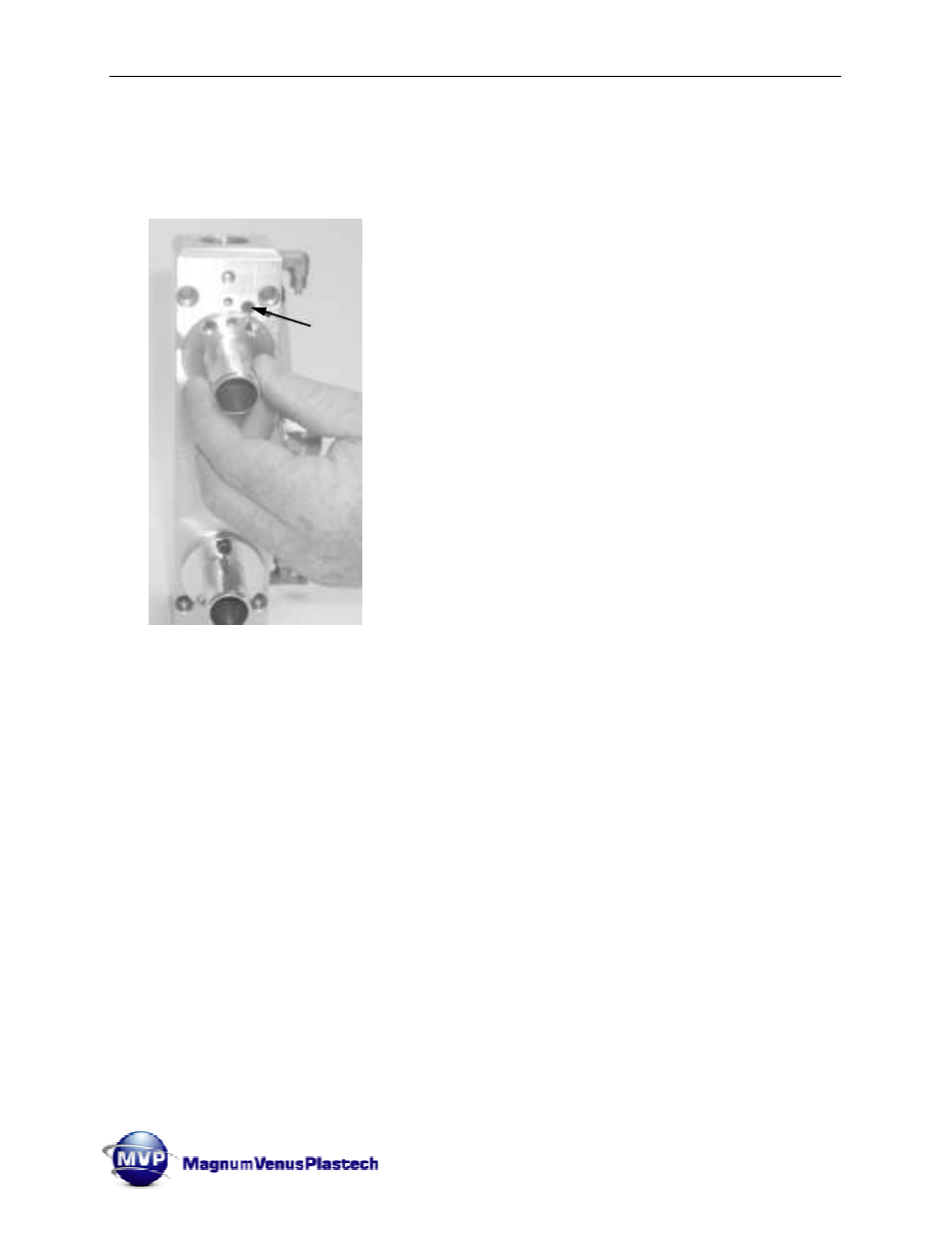

Figure 4:
Do not block the hole in the valve block when installing the
valve exhaust.
7. Install the two Socket Head Cap Screws (FCS-1024-06-SS) into each of the two
Valve Exhausts and snug tight.
8. Install Valve End Caps (MPH-2521) into the Upper and Lower Valve Blocks and
lightly snug tight.
Do not block hole
