TL – 4016 MEMORY CONTROL CONSOLE
Revision 1.4
OWNERS MANUAL
02/20/2005
www.lightronics.com
Lightronics
Inc.
509
Central
Drive
Virginia
Beach,
VA
23454
TEL
757
486
3588

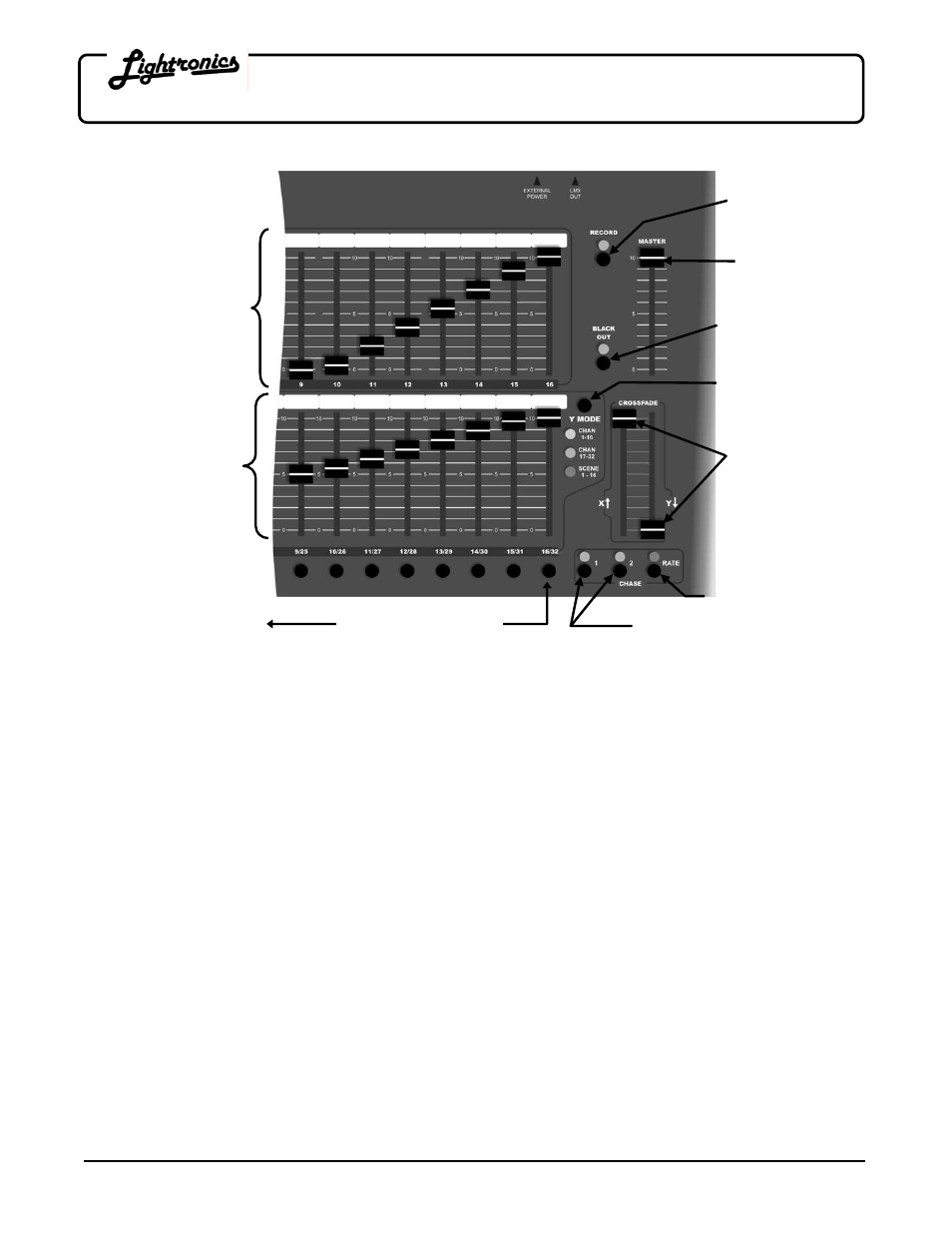

MOMENTARY
(BUMP) BUTTONS
CHASE
RATE
CHASE
SELECTORS
CROSS
FADERS
Y MODE
SELECT
BLACKOUT
GRAND
MASTER
RECORD
Y FADERS
X FADERS
INITIAL SETUP
CHASE RESET (Resets chases to the factory programmed defaults): Remove power from the unit. Hold down
the CHASE 1 and CHASE 2 buttons. Apply power to the unit while holding these buttons down. Continue to hold
down the buttons for approximately 5 seconds then release.
SCENE ERASE (Clears all scenes): Remove power from the unit. Hold down the RECORD button. Apply power
to the unit while holding this button down. Continue to hold down the button for approximately 5 seconds then
release.
You should check the address settings of the dimmers before proceeding with TL-4016 operation.
OPERATING MODES
The TL-4016 is capable of operating in three different modes concerning the Y faders. Pressing the "Y MODE"
button changes the function of the Y (lower sixteen) faders. The selected mode is indicated by the Y mode LEDs.
The X (upper sixteen faders) ALWAYS control the level of channels 1 through 16.
z "CH 1-16"
In this mode both the X and Y rows of faders control channels 1 through 16. The cross fader
is
used
to
transfer
control
between
X
and
Y.
z "CH 17-32"
In this mode the Y faders control channels 17 through 32.
z "SCENE 1-16" In this mode the Y faders control the intensity of 16 recorded scenes.
