Receiver rear panel – Lectrosonics UR190 User Manual
Page 7
RECEIVER REAR PANEL
12 VDC INPUT
Connects to the supplied CH-12 AC adapter for powering the receiver from a 110/120V AC source. The
receiver may also be powered from external 12 volt DC sources using the correct plug (Switchcraft
S-760 power plug). A diode bridge is used in the external power input, so that the UR190 will operate
properly from either polarity.
AUDIO OUTPUT
Supplies a balanced, low impedance output at microphone level. The audio signal is output on pins 2
and 3, while pin 1 is ground. The output level of this jack is controlled by the OUTPUT control on the
front panel of the receiver. The connector is a standard XLR type.
ANT
12V DC
IN
AUDIO OUT
1
2
3

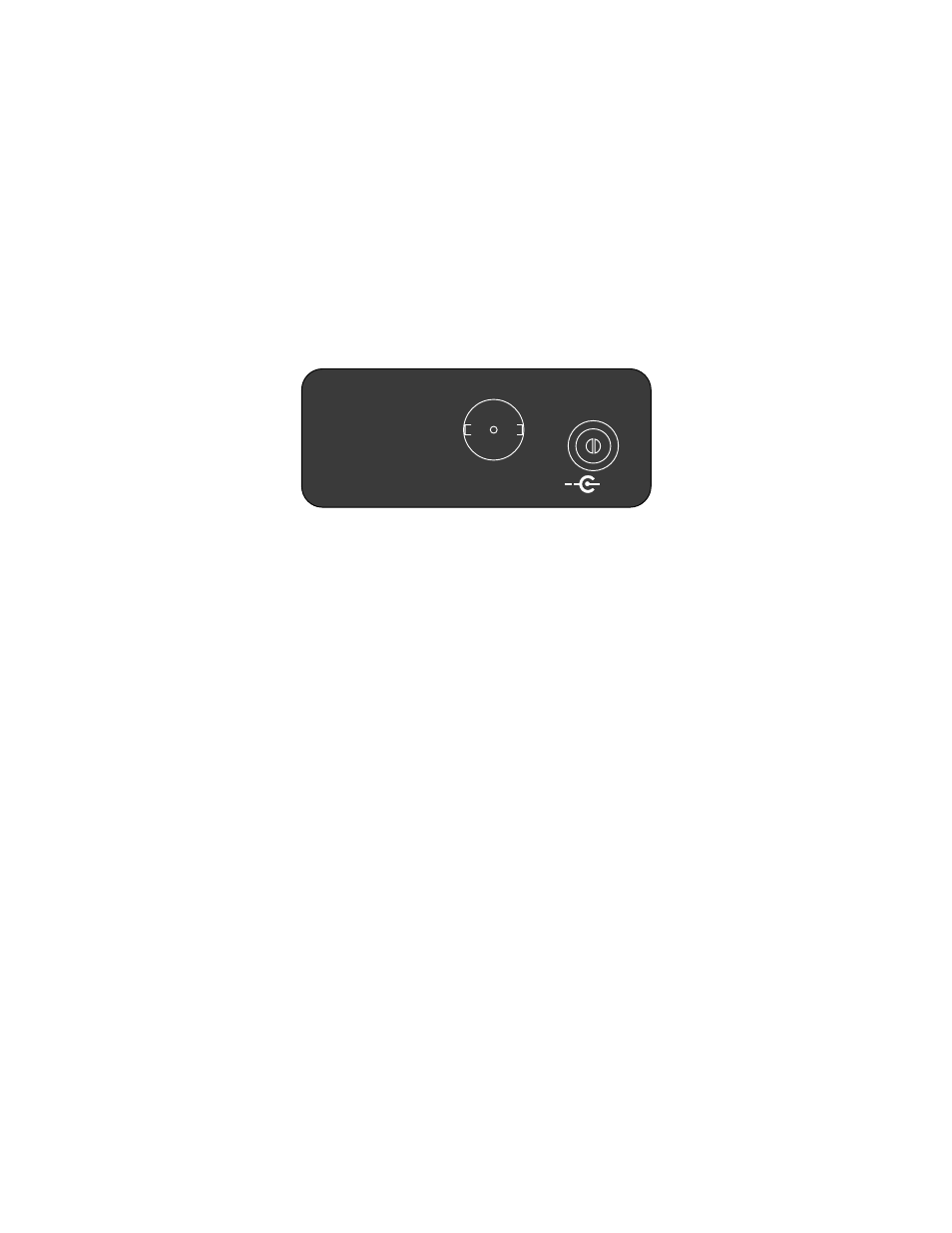

Figure 3 - UR190 Rear Panel
6
