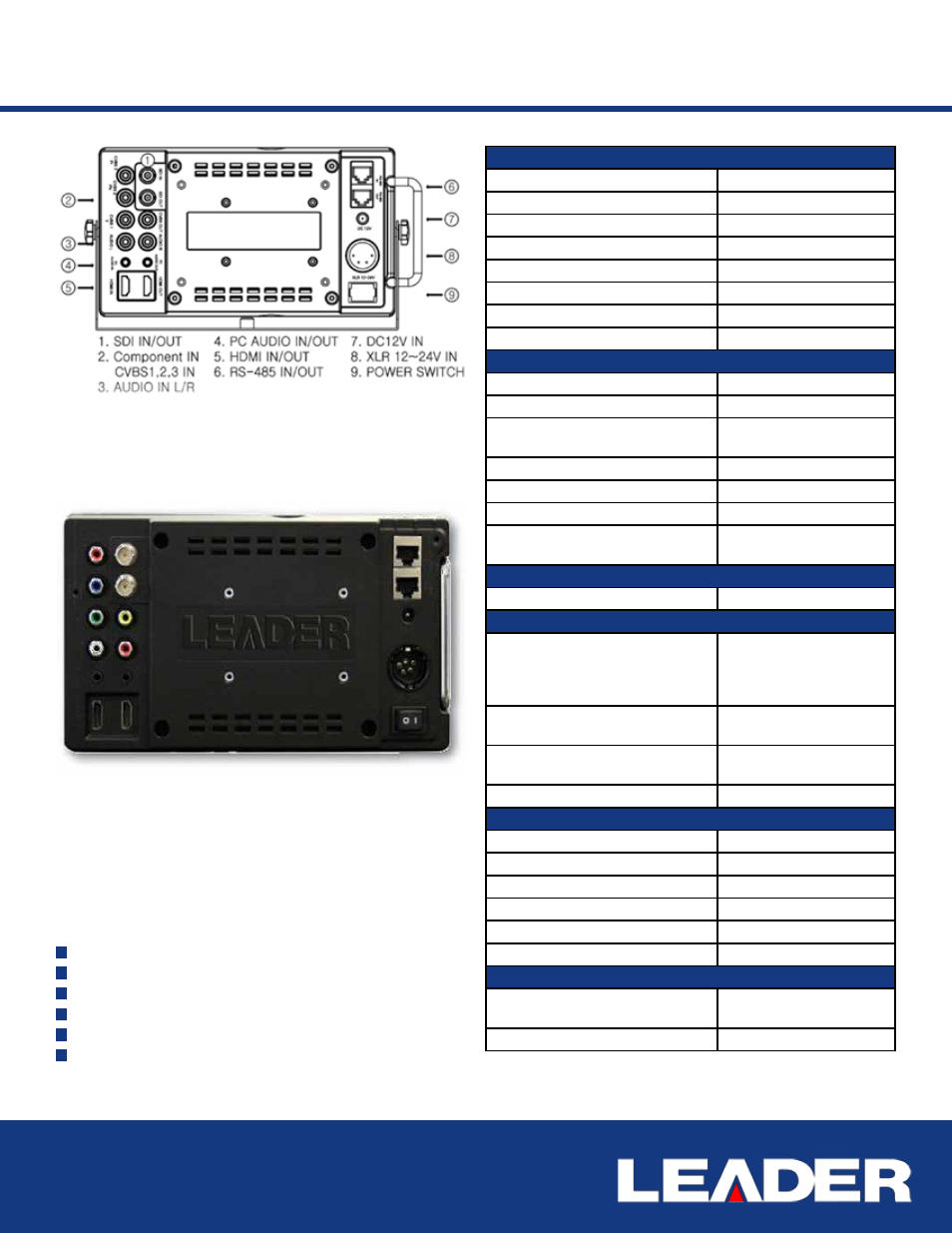

LV5307 Rear Panel with Available Connections
ACCESSORIES:
Rack Mount
Camera Mount
Front Panel Protective Cover
Sun Visor
Battery Adaptor
Carrying Bag
DISPLAY
Screen Size
7”
Max. Resolution
1024 x 600
Pixel Pitch
TBD
Brightness
400cd/m
2
(typical)
Contrast Ratio
800:1
Aspect Ratio
16:9
Viewing Angle (H/V)
170
o
/170
o
Color Depth
16.7M
INTERFACE
SDI In/Out
1/1
HDMI In/Out
1/1
Component (Y, Pb, Pr) In (RCA
Jack)
3
AV (Composite) In/Out (RCA Jack) 3/1
RS-485 In/Out
1/1
PC Audio In/Out
1/1
Audio In L/R (16ch de-embedded
Audio Selected Output)
1/1
AUDIO
Built-in Speaker
2W x 1
SDI INPUT SIGNAL FORMAT
SMPTE 274M
1920 x 1080p / 30, 29.97,
25, 24, 23.98 fps
1920 x 1080i / 60, 59.94,
50
SMPTE 296M
1280 x 720p / 60, 59.94,
50
SMPTE 260M
1280 x 1035i / 60, 59.94,
50
ITU-R BT.656
720 x 576i / 50
GENERAL
Transmitter - IR Remote Control TBD
Power - Electrical Ratings
DC 12V / XLR-4p
- Consumption
12V 1.2A / 14.4W
Warranty - Parts / Labor
2 Years / 3 Months
- MTBF (approx.)
33,000 hours
Operating Temperature
0-40
o
C (32-104
o
F)
DIMENSIONS
Outline Dimensions
(W x H x D)
8.7” x 5.0” x 1.9”
(221mm x 126mm x 48.3mm)
Net Weight
2.02 lbs (916.5 g)
