LEADER LV5330 User Manual
Page 2
LEADER INSTRUMENTS CORPORATION
11095 Knott Avenue, Suite B - Cypress, CA 90630
www.LeaderAmerica.com
Revision 01/13
e
f
g
a
b
c
d
(a) EXT REF:
External loop-through
reference input connectors.
(b) INPUT VIEWFINDER:
Composite
video signal input connector.
(c) REMOTE:
Remote connector
provides remote control of preset
selections.
(d) DC INPUT:
Input XLR connector
for the DC power supply.
(e) SDI INPUT:
HD/SD SDI (A and B)
input connectors.
(f) SDI OUTPUT:
Reclocked SDI
signal output connector.
(g) ETHERNET:
Ethernet remote
control to execute panel operations.
It supports TELNET, FTP and SNMP.
AVAILABLE OPTIONS:
HISTOGRAM & USER GAMMA DISPLAY - OP01: This software option enables to show video signals on
the LV5330 histogram display. It also enables to convert the user-defined gamma to ITU-R BT709 gamma
and S-log, and show the converted signal on the LV5330 picture display.
GAMUT & LEVEL ERROR - OP02: This option allows to identify the area and time specification in gamut
error detection and detection of luminance and chrominance signal level errors.

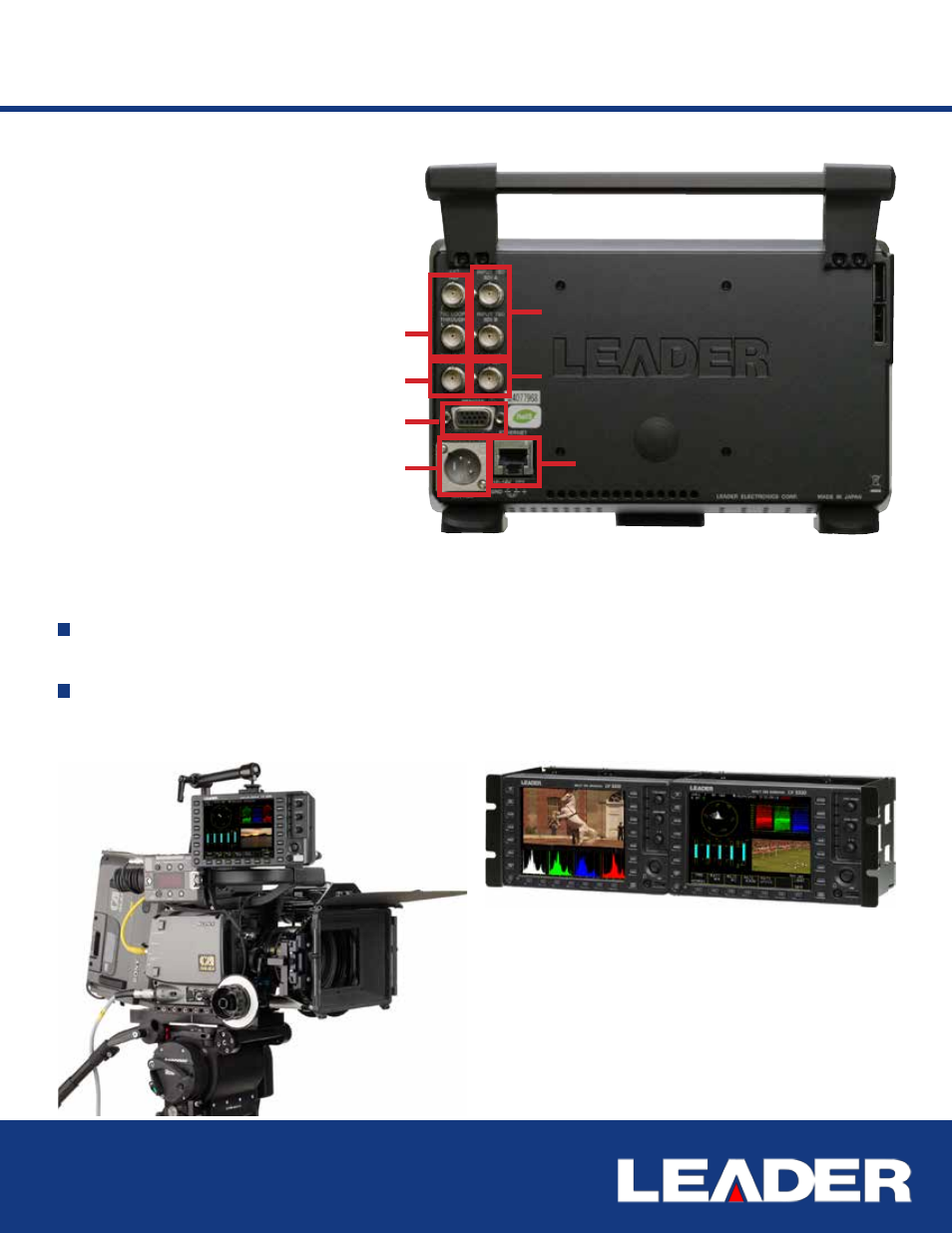

LV5330 Rear Panel
(left) LV5330 mounted on a camera.
(above) Two LV5330 mounted on a rack.
