AC Power Supply and Carrying Case as standard

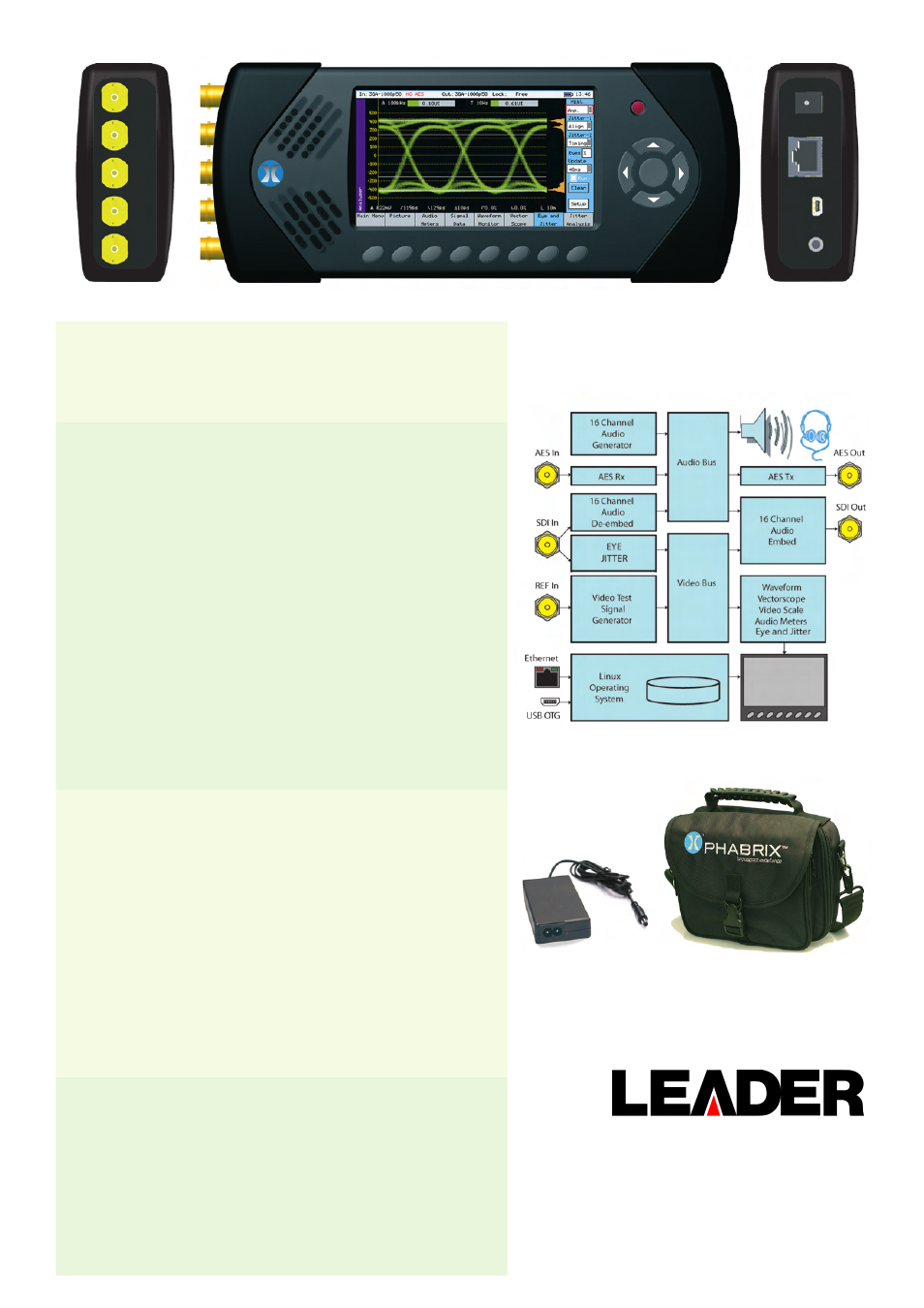

Schematic of the PHABRIX SxE (EYE & JITTER version)
Eye Display with Jitter Thermometers
PHABRIX® SxE
3 in1 Generator/Analyzer/Monitor with Eye and
Jitter
AUDIO USB
LAN
DC 5V
SDI
AES SDI
AES REF
OUT
OUT
IN IN
IN
Phabrix®
Sx
OK
MONITOR
Display resolution
Display type
Display size
Processing
480 x 272 pixels auto
scaling 16:9 24 bit color TFT
95 x 54 mm
All digital
VIDEO
SDI
Outputs
Inputs
Genlock
Adjustable timing
Text Ident
Logo ident
EDH
3G-SDI, HD-SDI, SD-SDI
1 x 75 Ohm BNC
1 x 75 Ohm BNC
Bi/Tri/SDI with cross lock
0 to 1 Frame
Yes with font, color, point size
Yes
Yes (SD-SDI)
VIDEO TEST SIGNALS
Resolution
Static Test patterns
User defined
Zone plate
10 bits
32+ including full frame
DPX, YUV, TGA, BMP
Yes
VIDEO INPUT/OUTPUTS
SMPTE formats supported See ww.phabrix.com
3Gbps,1.485Gbps, 270 Mbps Eye bit rates
Jitter
Jitter thermometers
SMPTE specification filters
Alignment, Timing
AUDIO
0.5 watts Internal speaker
Audio DAC
Headphone socket
Generator/Monitor
24 bit stereo
3.5 mm with auto line out
48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 channel embedded audio Yes
1 x 75 Ohm BNC AES output
AES onput 1 x 75 Ohm BNC
17
1Hz-24Khz in 1Hz steps
AUDIO TEST SIGNAL
Fixed tones
Variable tones
Intermittent Tone
White noise generation
Audio levels variable
Audio phase invert
Yes
Yes
0 to -100dB in 1dB steps
Yes
GENERAL
Navigation panel
Integral battery supply
Internal Storage
Remote control
Ethernet/USB
Carry case
AC power supply
Security
Size
5 menu keys, 8 custom select
3 hours lithium polymer
1GB (upgradable)
Web Browser Interface
Yes
Included
Included (universal)
Kensington™ lock fitting
H: 92mm W: 225mm D: 42mm
