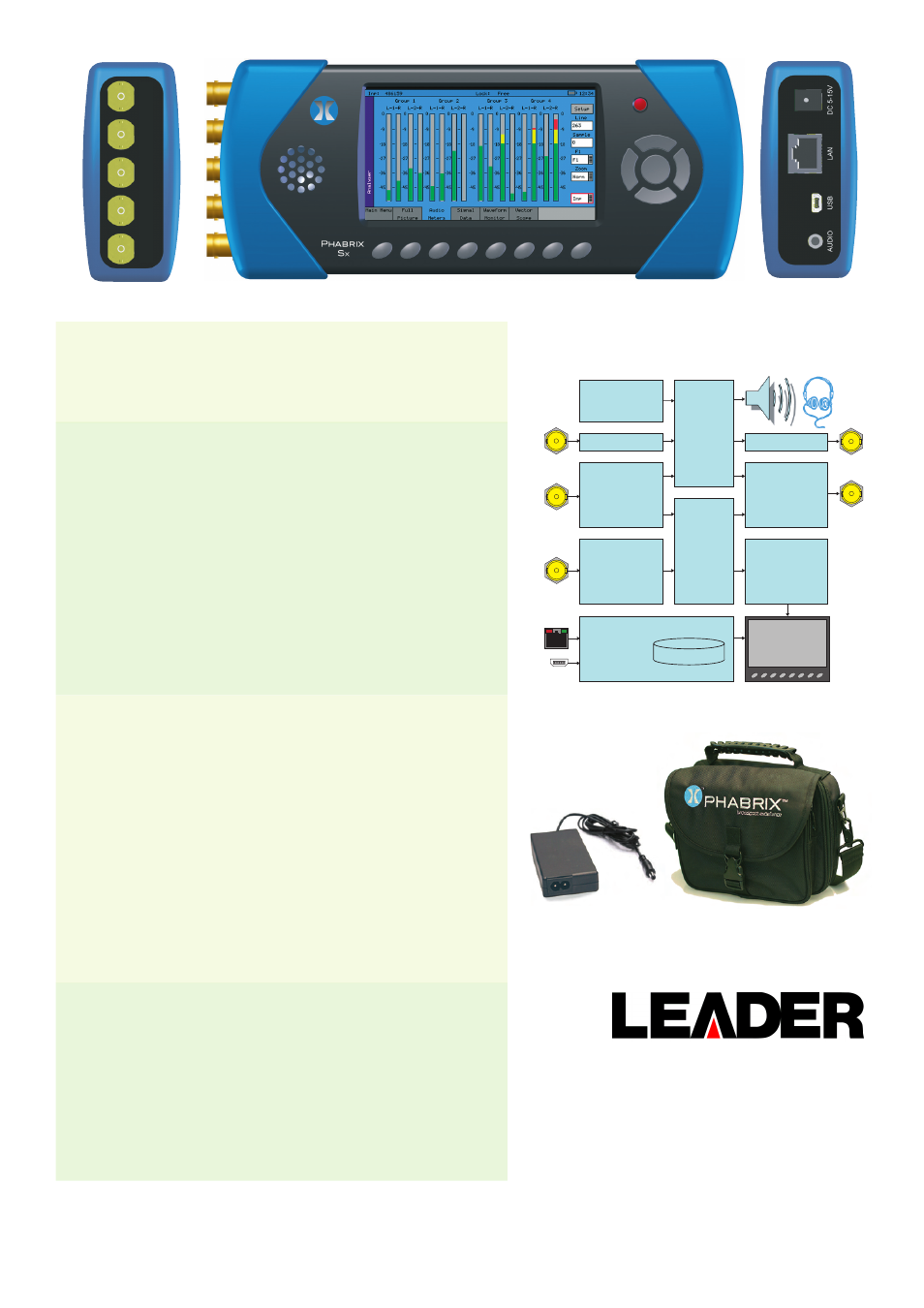

AC Power Supply and Carrying Case as standard
Schematic of the PHABRIX SxA (AES version)
PHABRIX® Sx A
3 in1 Generator/Analyzer/Monitor with AES
MONITOR
Display resolution
Display type
Display size
Processing
480 x 272 pixels auto scaling
16:9 24 bit color TFT
95 x 54 mm
All digital
VIDEO
SDI
Outputs
Inputs
Genlock
Adjustable timing
Text Ident
Logo ident
EDH
3G-SDI, HD-SDI, SD-SDI
1 x 75 Ohm BNC
1 x 75 Ohm BNC
Bi/Tri/SDI with cross lock
0 to 1 Frame
Yes with font, colour, point size
Yes
Yes (SD-SDI)
VIDEO TEST SIGNALS
Resolution
Static Test patterns
User defined
Zone plate
10 bits
32+ including full frame
DPX, YUV, TGA, BMP
Yes
AUDIO
Internal speaker
Audio DAC
Headphone socket
Generator/Monitor
0.5 watts
24 bit stereo
3.5 mm with auto line out
48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 channel embedded audio Yes
1 x 75 Ohm BNC AES output
AES onput 1 x 75 Ohm BNC
12
1Hz-20Khz in 1Hz steps
AUDIO TEST SIGNAL
Fixed tones
Variable tones
Intermittent Tone
White noise generation
Audio levels variable
Audio phase invert
Pulse
Yes
0 to -60dB in 1dB steps
Yes
GENERAL
Navigation panel
Integral battery supply
Internal Storage
Remote control
Ethernet/USB
Carry case
AC power supply
Security
Size
5 menu keys, 8 custom select
3 hours lithium polymer
1GB (upgradable)
Web Browser Interface
Yes
Included
Included (universal)
Kensington™ lock fitting
H: 92mm W: 225mm D: 42mm
Represented in the Americas by
LEADER INSTRUMENTS CORPORATION
Email: [email protected]
Phone: (714) 527-9300
Toll Free: (800) 645-5104
www.LeaderAmerica.com
16 Channel embedded audio testing screen
SDISDI
AES
SDI
AES
REF SDI AES SDI AES REF
OUT OUT IN IN IN
16 Channel embedded audio testing screen
SDISDI AES AES SDI
REF
16 Channel
Audio
Generator
AES Rx AES Tx
Audio Bus
Video Bus
16 Channel
Audio
De-embed
16 Channel
Audio
Embed
Video Test
Signal
Generator
Linux
Operating
System
SDI In
AES In
SDI Out
AES Out
REF In
Ethernet
Waveform
Vectorscope
Video Scale
Audio Meters
USB OTG
