Impulse AGP-3125 - Manual

03-5
03
Features
Specifications
Ru
gg
ed E
xp
an
da
ble T
ouc
h P
ane
l S
olu
tio
ns
12.1” XGA (1024 x 768) TFT LCD Display ■ ■
Intel® Core™ i7/i5/P4500 Processor ■ ■
Easy-To-Expand: Two PCI/PCIe Slots ■ ■
IP-65 Aluminum Die Cast Front Bezel ■ ■
Two Easy Access Front USB Ports ■ ■
12.1” 500 Nits XGA LED Backlight ■ ■
12.1” 1000 Nits XGA LED Backlight
Modular Design For CPU Board
■ ■
12.1” Rugged Touch Panel Computer With Intel® Core™ i7/i5/P4500 Processor
System
Processor
Intel® Core™ i7/i5/P4500 Processor, Core™ i7 -620M, Core™ i5-520M,
P4500
Memory DDR3 800/1066MHz SODIMM x 2, up to 8 GB
Chipset Intel® Core™ i7/i5 + QM57
LCD/CRT Controller Integrated in Intel® QM57
Ethernet 10/100/1000Base-TX, RJ-45 x 2
I/O Port
USB2.0 x 6 (2 on front, 4 on rear), Line-out/MIC-in/Line-in x 1, PS-2 x 1 for KB/
Mouse, DVI-I x 1, RS-232 x 1
Storage Disk Drive 2.5" SATA Hard Disk Drive x 1
Expansion Slot Mini card x 1, PCI slot x 2 or PCIe x 2
OS support Windows® XP, Windows® 7, Linux Fedora
Mechanical
Construction IP-65/ NEMA4 for aluminum die cast front bezel & Steel chassis
Mounting Panel/ Desktop
Dimension 13.61” x 10.46” x 4.28” (345.8mm x 265.8mm x 108.8mm)
Carton Dimension 18.5” x 16.53” x 13.78” (470mm x 420mm x 350mm)
Gross Weight 15.86 lb (7.2 kg)
Net Weight 11.89 lb (5.4 kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C)
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity 10%~95% @ 40°C; non-condensing
Vibration 1 g rms/ 5~500 Hz/ Random operation (HDD)
Shock 20 G peak acceleration (11 msec. Duration)
EMC CE/FCC Class A
Power Supply
AC input 250W 110/230V AC power
LCD
Display type 12.1" TFT-LCD
Max Resolution 1024 x 768
Max. Colors 16.2M
Luminance HTT: 500 cd/m 2 , STT: 1000 cd/m 2
Viewing Angle HTT: 160°(H)/140°(V), STT: 160°(H)/140°(V)
Back Light HTT: LED, STT: LED
Back Light MTBF (hours) HTT: 50,000, STT: 60,000
Touchscreen
Type 5-wire resistive
Light Transmission 80%
Lifetime (times) 35 Million activations

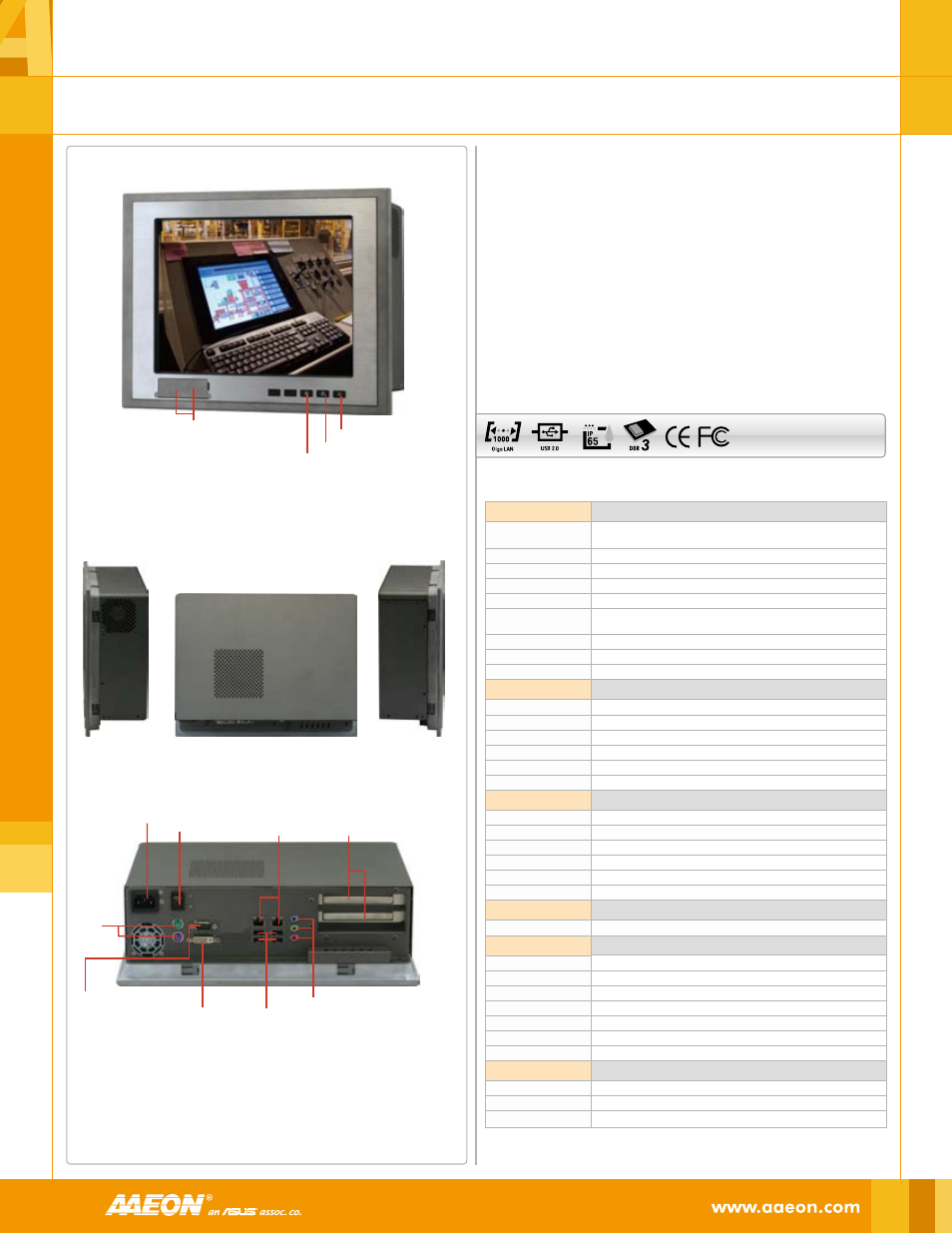

AGP-3125
Brightness -
Brightness +
LCD On/Off
Power Input
Power Button
PS/2
RS-232
USB x 4 DVI-I
LAN x 2 PCI/PCIe
Line-in/ Line-out/ Mic-in
USB x 2
