Features
Specifications
In
dus
tri
al H
M
I T
ouc
h P
ane
l S
olu
tio
ns
Onboard Intel® Atom™ D510 1.66 GHz ■ ■
12.1” 500 Nits XGA LED Backlight ■ ■
12.1” 1000 Nits XGA LED Backlight
Fanless Operation
■ ■
Slim Design: 64mm ■ ■
WiFi (Optional) ■ ■

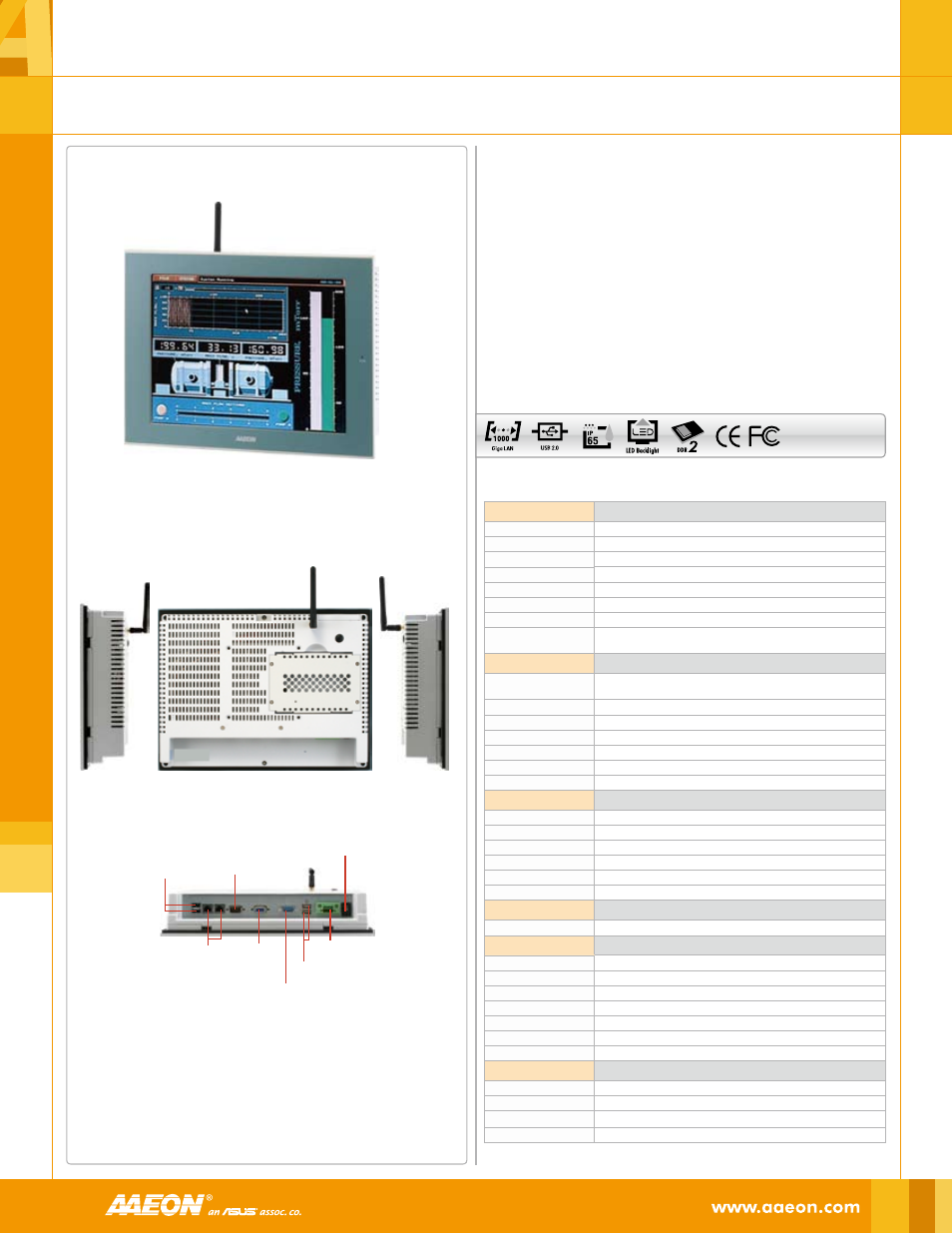

12.1” XGA HMI Touch Panel Computer with Onboard Intel® Atom™ D510 1.66 GHz Processor
System
Processor Intel® Atom™ D510, 1.66 GHz
System Memory DDR2 SODIMM, Up to 2 GB
LCD/CRT Controller Integrated in Processor, shared memory up to 224MB
Ethernet 10/100/1000Base-TX, RJ-45 x 2
I/O Port USB2.0 x 4, RS-232 x 1, RS-232/422/485 x 1, LAN x 2, VGA x 1
Storage Disk Drive 2.5" SATA Hard Disk Drive/ CompactFlash™ Slot (Internal)
Expansion Slot Mini Card x 2
OS support
Windows® CE 6.0, Windows® XP Embedded, Windows® XP, Windows® 7,
Windows® Embedded Standard 7, Linux Fedora
Mechanical
Construction
IP-65 certified Plastic front panel
Plastic back panel
Color PMS 5425C + Gray
Mounting VESA 100/ Panel
Dimension 12.5"(W) x 9.6"(H) x 2.5"(D) (317mm x 243mm x 64mm)
Carton Dimension 16.6"(W) x 7.7"(H) x 15.9"(D) (422mm x 196mm x 404mm)
Gross Weight 9.3 lb (4.2 kg)
Net Weight 7 lb (3.2 kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~ 50 °C) (Ambient with airflow)
Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Storage Humidity 5%~90% @ 40°C; non-condensing
Vibration 3 g rms/ 5~ 500Hz/ operation – With HDD
Shock 20 G peak acceleration (11 msec. duration)
EMC CE/FCC class A
Power Supply
DC input DC 12V w/ 3-pin terminal block
LCD
Display Type 12.1" TFT-LCD
Max Resolution 1024 x 768
Max. Colors 16.2M colors
Luminance HTT: 500 cd/m 2 / STT: 1000 cd/m 2
Viewing Angle HTT: 160°(H), 160°(V)/ STT: 160°(H), 140°(V)
Back Light LED
Back Light MTBF (hours) HTT: 50,000/ STT: 60,000
Touchscreen
Type 5-wire,Analog Resistive
Resolution 2048 x 2048
Light Transmission >80%
Life time 35 Million activations
AHP-1122
Power Button
USB x 2
USB x 2
LAN x 2
VGA
RS-232
RS-232/422/485
DC 12V input
