Impulse AGP-3155 - Manual

03-3
03
Features
Specifications
Ru
gg
ed E
xp
an
da
ble T
ouc
h P
ane
l S
olu
tio
ns
15” XGA (1024 x 768) TFT LCD Display ■ ■
Intel® Core™ i7/i5/P4500 Processor ■ ■
Easy-To-Expand: Two PCI/PCIe Slots ■ ■
IP-65 Aluminum Die Cast Front Bezel ■ ■
Two Easy Access Front USB Ports ■ ■
15” 250 Nits XGA CCFL Backlight ■ ■
15” 800 Nits XGA LED Backlight
Modular Design For CPU Board
■ ■
15” Rugged Touch Panel Computer With Intel® Core™ i7/i5/P4500 Processor
System
Processor
Intel® Core™ i7/i5/P4500 Processor, Core™ i7 -620M, Core™ i5-520M,
P4500
Memory DDR3 800/1066MHz SODIMM x 2, up to 8 GB
Chipset Intel® Core™ i7/i5 + QM57
LCD/CRT Controller Integrated in Intel® QM57
Ethernet 10/100/1000Base-TX, RJ-45 x 2
I/O Port
RS-232 x 2, RS-232/422/485 x 1, USB2.0 x 6 (2 on front, 4 on rear), Line-out/
MIC-in/Line-in x 1, PS/2 x 1 for KB/Mouse, DVI-I x 1
Storage Disk Drive 3.5" SATA Hard Disk Drive x 2, Slim DVD-Combo (optional)
Expansion Slot Mini card x 1, PCI slot x 2 or PCIe x 2
OS Support Windows® XP, Windows® 7, Linux Fedora
Mechanical
Construction IP-65/ NEMA4 for aluminum die cast front bezel & Steel chassis
Mounting Panel/ Desktop/ Rack
Dimension 15.36” x 12.76” x 4.91” (390mm x 323.5mm x 124.7mm)
Carton Dimension 24.21” x 20.47” x 12.99” (615mm x 520mm x 330mm)
Gross Weight 18.04 lb (8.2 kg)
Net Weight 14.74 lb (6.7 kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C) (Ambient with airflow)
Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C)
Storage Humidity 10%~95% @ 40°C; non-condensing
Vibration 1 g rms/ 5~500Hz/ Random operation (HDD)
Shock 20 G peak acceleration (11 msec. Duration)
EMC CE/FCC Class A
Power Supply
AC input 250W 110/230V AC power
LCD
Display type 15" TFT-LCD
Max Resolution 1024 x 768
Max. Colors 16.2M colors (6/8-bit for R,G,B)
Luminance HTT: 250 cd/m 2 , STT: 800 cd/m 2
Viewing Angle HTT: 170°(H)/160°(V), STT: 160°(H)/140°(V)
Back Light HTT: CCFL, STT: LED
Back Light MTBF (hours) HTT: 30,000, STT: 60.000
Touchscreen
Type 5-wire resistive
Light Transmission 80%
Lifetime (times) 35 Million activations

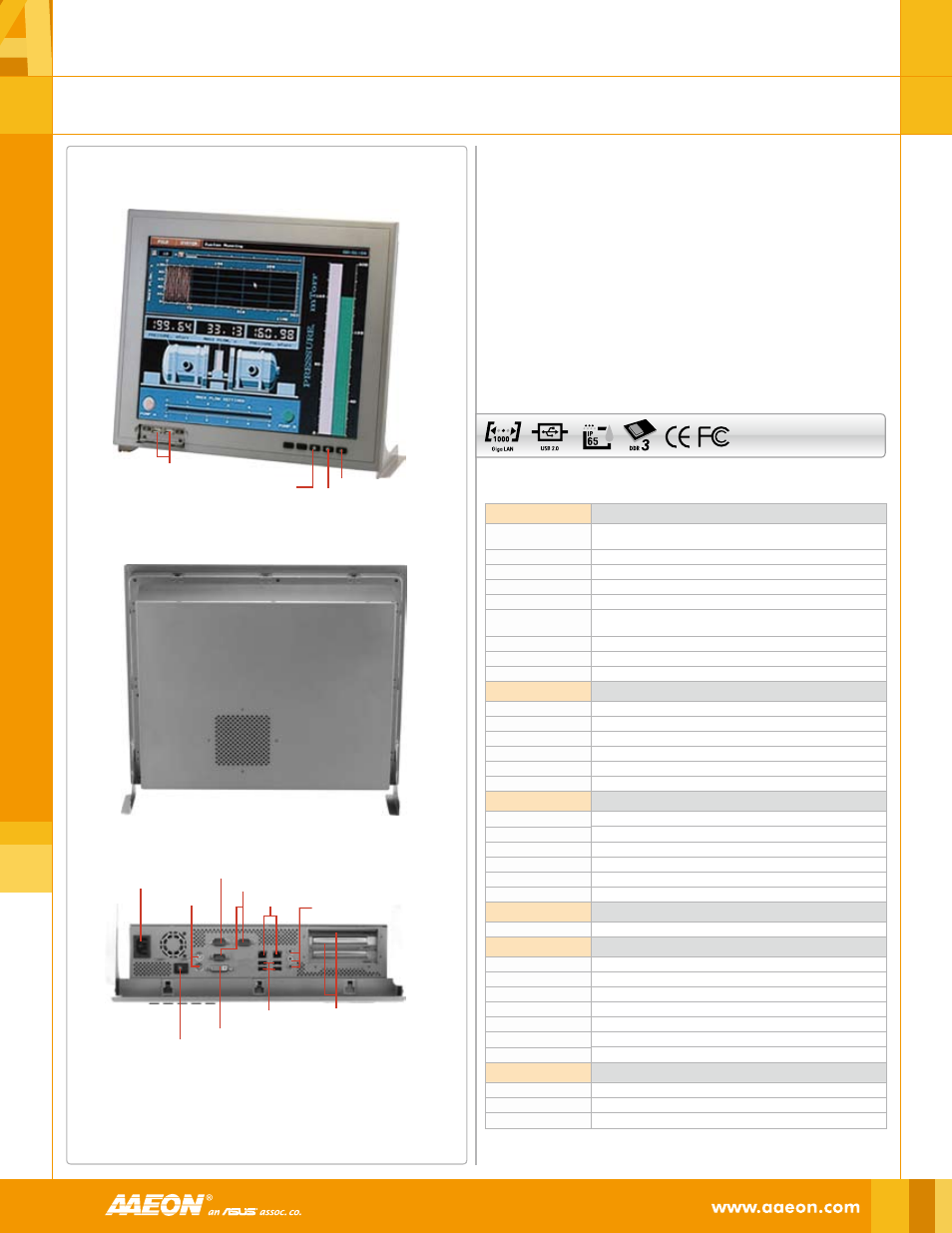

AGP-3155
Power Input
Power Button
PS/2
RS-232/422/485
RS-232 x 2
Mic-in/ Line-in/ Line-out
PCI/ PCIe x 2 USB x 4
DVI-I
LAN x 2
USB x 2
Brightness -
Brightness +
LCD On/Off
