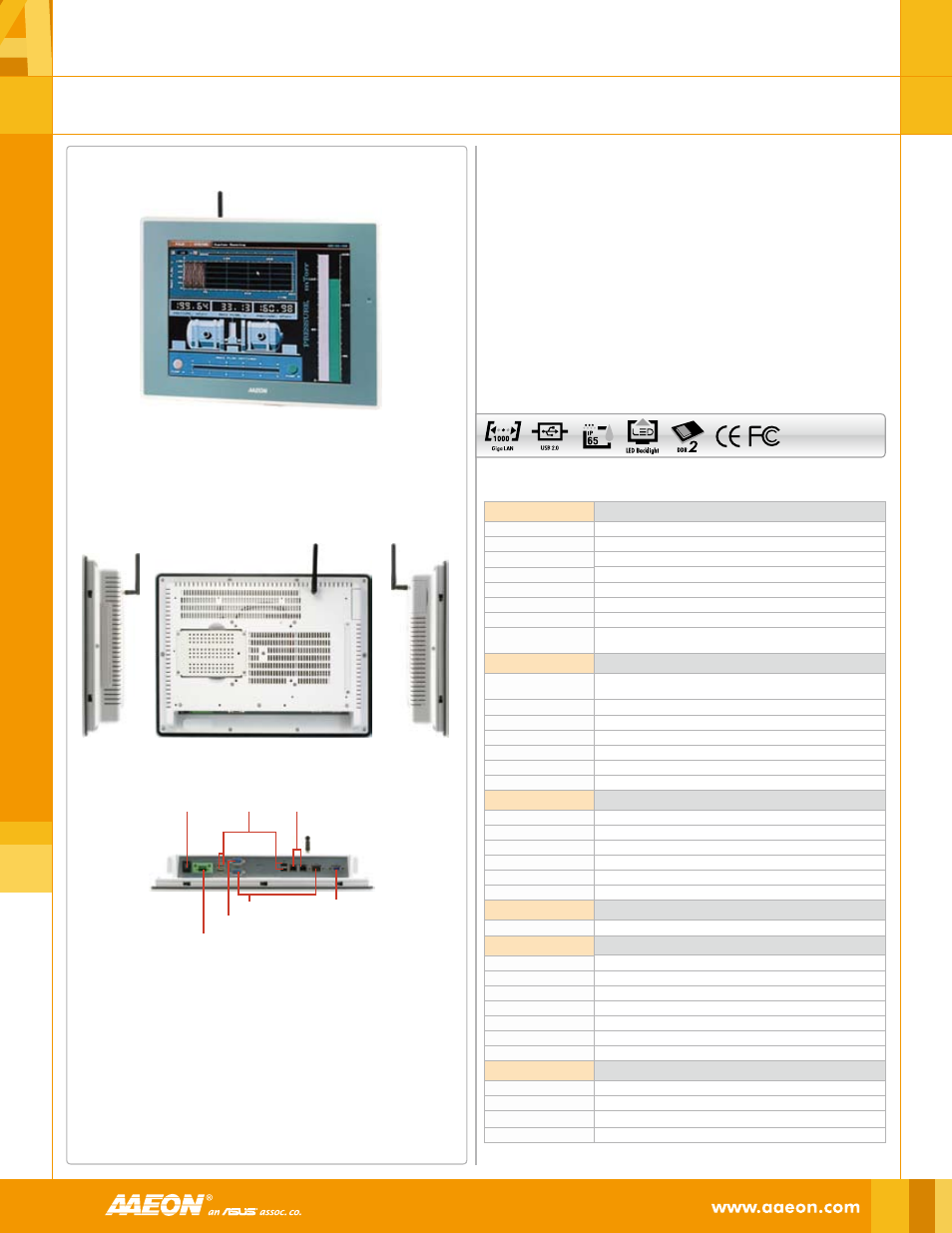

Impulse AHP-1152 - Manual

01-1
01
Features
Specifications
In
dus
tri
al H
M
I T
ouc
h P
ane
l S
olu
tio
ns
Onboard Intel® Atom™ D510 1.66 GHz ■ ■
15” 250 Nits XGA CCFL Backlight ■ ■
15” 800 Nits XGA LED Backlight
Fanless Operation
■ ■
Slim Design: 65mm ■ ■
WiFi (Optional) ■ ■
15” XGA HMI Touch Panel Computer With Onboard Intel® Atom™ D510 1.66 GHz Processor
System
Processor Intel® Atom™ D510, 1.66 GHz
System Memory DDR2 SODIMM, Up to 2 GB
LCD/CRT Controller Integrated in Processor, shared memory up to 224MB
Ethernet 10/100/1000Base-TX, RJ-45 x 2
I/O Port USB2.0 x 4, RS-232 x 2, RS-232/422/485 x 1, LAN x 2, VGA x 1
Storage Disk Drive 2.5" SATA Hard Disk Drive /CompactFlash™ Slot (Internal)
Expansion Slot Mini card x 2
OS support
Windows® CE 6.0, Windows® XP Embedded, Windows® XP, Windows®
7,Windows® Embedded Standard 7 , Linux Fedora
Mechanical
Construction
IP-65 certified plastic front panel
Plastic Gray panel
Color PMS 5425C + Gray
Mounting VESA 100/ Panel
Dimension 16"(W) x 12.2"(H) x 2.6"(D) (407mm x 310.5mm x 65mm)
Carton Dimension 20.67"(W) x 18.31"(H) x 9.1"(D) (525mm x 465mm x 230mm)
Gross Weight 11.9 lb (5.4 kg)
Net Weight 9.7 lb (4.4 kg)
Environmental
Operating Temperature 32°F ~ 122°F (0°C ~ 50°C )
Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C)
Storage Humidity 5%~90% @ 40°C; non-condensing
Vibration 3 g rms/ 5~ 500Hz/ operation – With HDD
Shock 20 G peak acceleration (11 msec. duration)
EMC CE/FCC class A
Power Supply
DC input DC 12V w/ 3-pin terminal block
LCD
Display Type 15" TFT-LCD
Max Resolution 1024 x 768
Max. Colors 16.2M colors
Luminance HTT: 250 cd/m 2 , STT: 800 cd/m 2
Viewing Angle HTT: 170°(H), 160°(V)/ STT: 160°(H), 140°(V)
Back Light HTT: CCFL/ STT: LED
Back Light MTBF (hours) HTT: 30,000/ STT: 60,000
Touchscreen
Type 5-wire,Analog Resistive
Resolution 2048 x 2048
Light Transmission >80%
Life time 35 Million activations
AHP-1152
Power Button USB x 4 LAN x 2
VGA
RS-232/422/485
RS-232 x 2
DC 12V input
