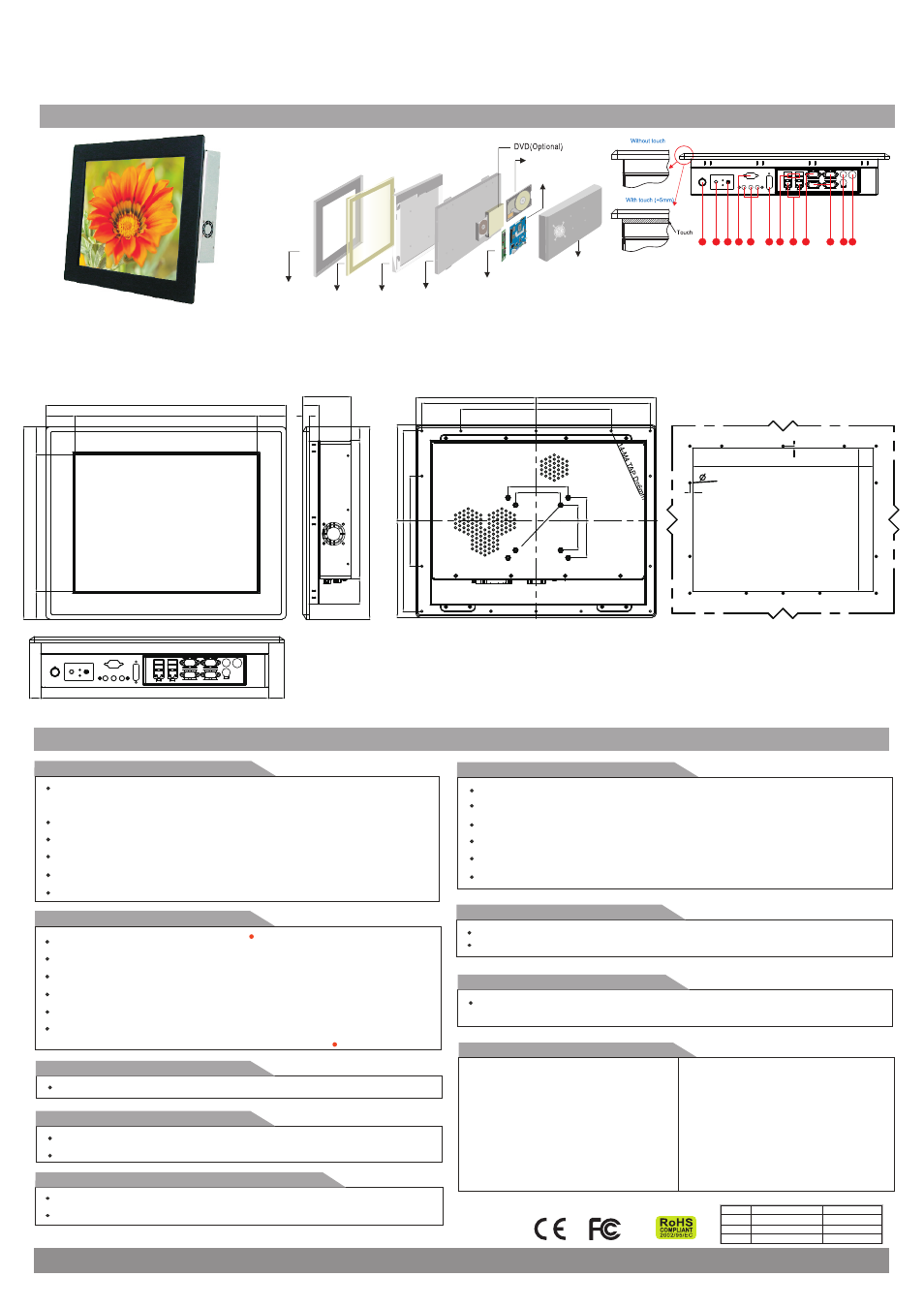

Impulse R15IC7T-IPC3 - Manual

Specifications
Operating Temperature
Operating Humidity
Environment Considerations :
:
:
Mechanical Design
Note: All Specifications are subject to change without prior notice!
0 deg.C to 50 deg.C
30% to 90% (non condensing)
R15IC7T-IPC3
15" Panel PC
( ) Intel® Core™ i7-620M/i5-520M
Front bezel
(Optional)
Inverter
SBC Board
Panel
Storage (HDD/CF)
Touch/Glass
(Optional)
Metal Frame Housing
Back Cover
IP65 (10 mm front bezel)
1.
2.
3.
4.
5.
6. 7.
8.
9.
10.
11.
12.
Brightness Adjustment Knob
Power On Button
Power Reset Button
RS-232 Conn. (Optional)
Audio Jack
DVI (Optional) USB
RJ-45
VGA Out
RS-232 Conn.
PS/2
DC IN Power Jack
Serial Ports
USB Ports
Keyboard / Mouse
Ethernet
VGA
Audio
:
:
:
:
:
:
Input / Output :
Default setting:RS232
2 x RS232, 1 x RS232/422/485
4 x USB
2 x PS/2
2 x RJ 45-10/100/1000 Mbps
1 x VGA (female)
Line-Out, Line-In, Mic in
Panel Spec :
Size/Type
Resolutions
Brightness
Contrast Ratio
Viewing Angles
Max Colors
:
:
:
:
:
:
15" TFT
1024 x 768
2 250 cd/m (typ.)
500 : 1(typ.)
-70~70(H);-60~60(V)
16.2M
RAM
OS
DVD
Storage :
:
:
:
Order Options :
(A customized housing is needed if you
have demands of SAW/IR/IT/SC touch)
3.5" HDD/CF/Both
SO-DIMM DDR3 1066/800
Windows XPE (Optional)
Windows XPPE (Optional)
Windows 7 (Optional)
Linux (Optional)
Yes(Optional)
Mechanical
Touch
Open Frame
Panel Mount(5 mm bezel)
IP65(10 mm bezel)
5 Wires Resistive(Optional)
:
:
Revised Date:04/28/2011
Rev. Reasons Revised Date
1.0 New Add Nov-06-08
Rev. Reasons Revised Date
1.0 First release Apr-28-11
Fully Integrated I/O Dimensions
Mechanical design
OS BSP / Driver Support :
Support Windows 7 / Windows XP Embedded /
Windows XPP Embedded / Linux
Measurements shown in mm
Tolerance of all dimensions is shown as follow 0~30 mm ± 0.1 mm,
30~50 mm ± 0.15 mm, 50~120 mm ± 0.2 mm, above 120 mm ± 0.25 mm
Note: this is a simplified drawing and some components are not marked in detail.
Please contact our sales representative if you need further product information.
*
*
*
System :
CPU
Memory
System Chipset
Storage
LAN
Audio Codec
:
:
:
:
:
:
Intel® Core™ i7-620M/i5-520M Processor
(2.66GHz / 2.4GHz)
2 x SO-DIMM, Max 8GB DDR3 1066/800
Intel® HM55 Chipset
2 x SATA II (Default 3.5" 250G)
Dual Broadcom BCM57780 GbE
Realtek ALC886 HD Audio Codec
Power Specifications :
Power Input
Power Consumption 12V DC IN (Lockable Power Jack)
107W (typ.)(Max.backlight & high CPU load) :
:
Accessori es :
Mounting Kit (for Panel Mount 5 mm)
Externa l Power Supply 150W/po wer cord
Expansion Slot :
1 x PCI-E(x16), 2 x Mini PCI-E
1 2 3 4 5 6 7 8 9 10 11 12
FRONT VIEW SIDE VIEW BACK VIEW
BOTTOM VIEW
8-
M
4
T
A
P D
=3
m
m
48 304 48
400
4
6
2
2
8
4
6
3
2
0
10
26.8
79.8
2
3
.2
2
3
0
4
2
.1
3
2
0
125
190
200
125
190
200
7
5
1
5
0
1
6
0
7
5
1
5
0
1
6
0
75
100
2
6
.7
4
8
.3
3
9
.2
6
0
.8
US B
US B
RJ 45
US B
US B
RJ 45
VG A
RS 23 2
RS 23 2
RS 23 2
PS 2
PS 2
DC IN
Au di o
SD VO VR
RS 23 2
24.7 357.6 17.7
IP65 CUT OUT
2
9
2
368
4
6
4.5
1:2
