Impulse W22IC7T-IPA3 - Manual

Specifications

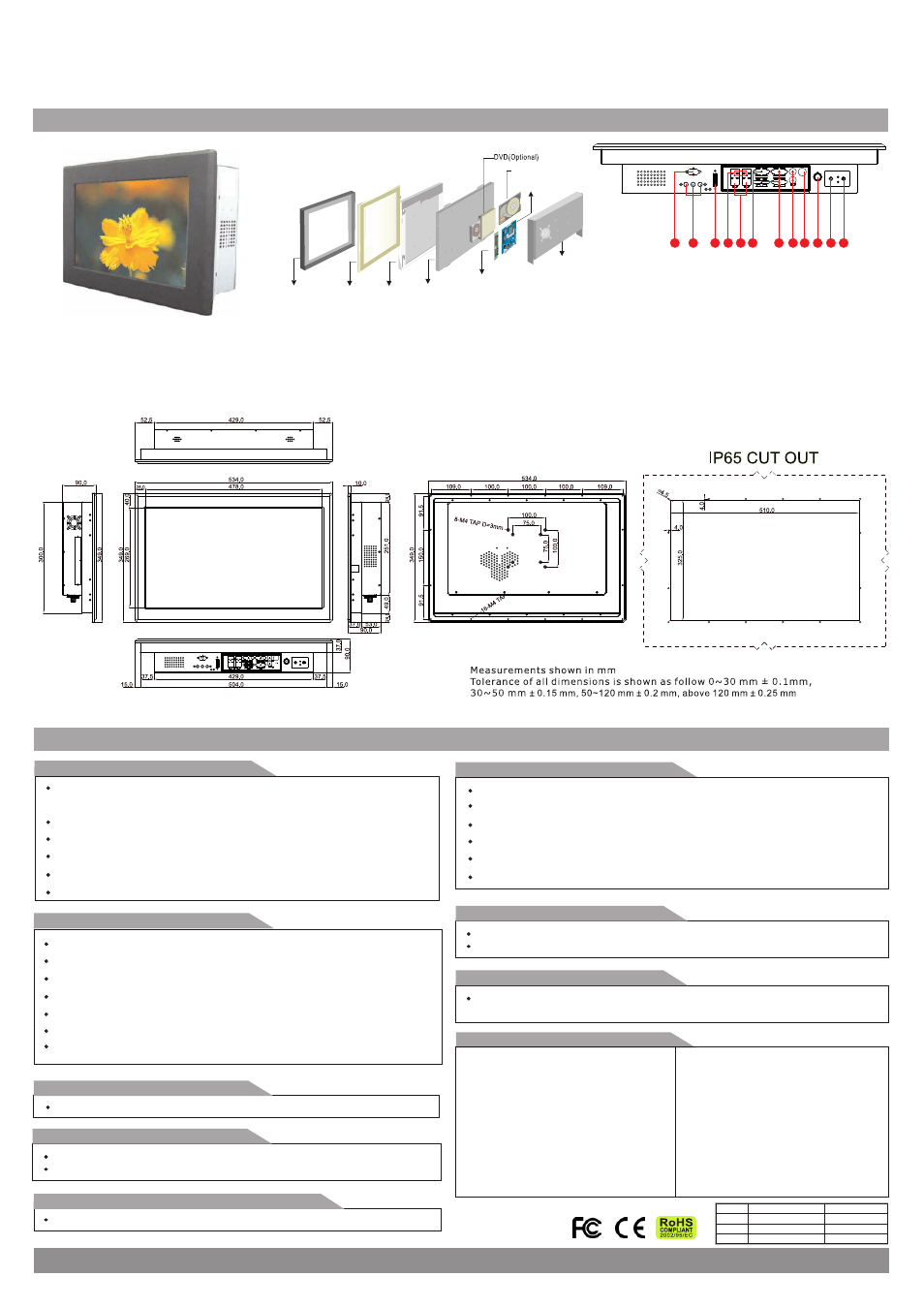

Mechanical Design
Note: All Specifications are subject to change without prior notice!
SIDE VIEW BACK VIEW
BOTTOM VIEW
IP65 (10 mm front bezel)
TOP VIEW
W22IC7T-IPA3
21.5" Panel PC
( ) Intel® Core™ i7-620M/i5-520M
1.
2.
3.
4.
5.
6. 7.
8.
9.
10.
11.
12.
RS-232 (Optional)
Audio Jack
DVI (Optional)
USB
LAN
VGA RS-232 Conn.
PS/2
12V DC-in Power Jack
Brightness Adjustment Knob
Power On Button
Power Reset Button
Front Cover
Inverter
SBC Board
Panel Metal Frame Housing
Back Cover
Storage (HDD/CF)
Touch/Glass
(Optional)
Rev. Reasons Revised Date
1.0 First release Apr-28-11
Power Specifications :
Power Input
Power Consumption 12V DC IN (Lockable Power Jack)
139W (typ.)(Max.backlight & high CPU load) :
:
Accessori es :
Externa l Adapter : 110~230V Ac-in power adapter
Serial Ports
USB Ports
Keyboard / Mouse
Ethernet
VGA
Audio
DVI
:
:
:
:
:
:
:
Input / Output :
2 x RS232, 1 x RS232 (Default) / 422 / 485
4 x USB
2 x PS/2
2 x RJ 45 Gbit
1 x VGA (female)
Line-Out, Line-In, Mic in
1 x DVI (optional)
Panel Spec :
Size/Type
Resolutions
Brightness
Contrast Ratio
Viewing Angles
Max Colors
:
:
:
:
:
:
21.5"TFT
1920 x 1080
2 250 cd/m (typ.)
1000 : 1(typ.)
-85~85(H);-80~80(V)
16.7M(8bits/colors)
Operating Temperature
Operating Re alative Humidity
Environment Considerations :
:
: 0 deg.C to 50 deg.C
30% to 90% (non condensing)
Fully Integrated I/O
Dimensions
Mechanical design
SIDE VIEW
Revised Date:08/13/2012
CPU
RAM
Storage
DVD
OS
:
:
:
:
:
Order Options :
(A customized housing is needed if you
have demands of SAW/IR/IT/SC touch)
Check with Sales
SO-DIMM DDR3 1066/800
3.5" HDD/SSD/CF
Optional
Windows XPE (Optional)
Windows XPPE (Optional)
Windows 7 (Optional)
Linux (Optional)
Mechanical
Touch
Open Frame
IP65 (10 mm bezel)
Panel Mount(5 mm bezel)
5 Wires Resistive(Optional)
:
:
OS BSP / Driver Support :
Support Windows 7 / Windows XP Embedded /
Windows XPP Embedded / Linux 2.6
Note: this is a simplified drawing and some components are not marked in detail.
Please contact our sales representative if you need further product information.
*
*
*
System :
CPU
Memory
System Chipset
Storage
LAN
Audio Codec
:
:
:
:
:
:
Intel® Core™ i7-620M/i5-520M Processor
(2.66GHz / 2.4GHz)
2 x SO-DIMM, Max 8GB DDR3 1066/800
Intel® HM55 Chipset
2 x SATA II (Default 3.5" 250G)
Dual Broadcom BCM57780 GbE
Realtek ALC886 HD Audio Codec
Expansion Slot :
1 x PCI-E(x16), 2 x Mini PCI-E
1 2 3 4 5 6 7 8 9 10 11 12
1.1 Spec change Aug-13-12
