Features

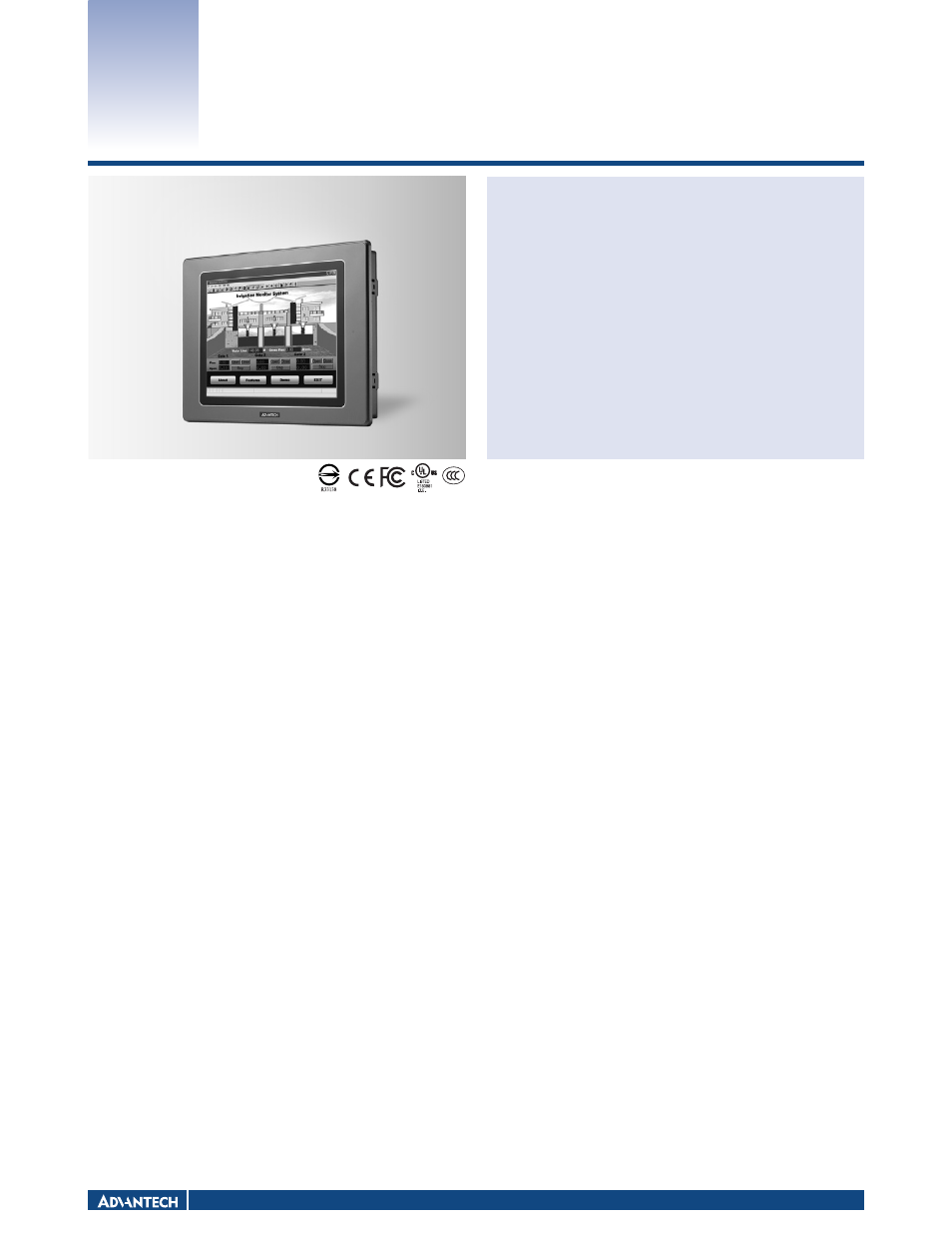

WebOP-2080T
Specifications
General
ƒ Certification CE, BSMI, CCC, UL, FCC Class A
ƒ Dimensions (WxHxD) 231.5 x 174.6 x 37 mm (9.11" x 6.87" x 1.46")
ƒ Cut-out Dimensions 221 x 164 mm (8.70" x 6.46")
ƒ Front Panel Thickness 6 mm
ƒ Operating System HMI RTOS, WebOP Designer
ƒ Power Supply Voltage 24V
DC
±10%
ƒ Power Consumption 10W
ƒ Enclosure Housing Plastic
ƒ Mounting Panel
ƒ Weight (Net) 0.93 kg (2.05 lbs)
System Hardware
ƒ CPU RISC 32bits, 200MHz
ƒ Battery Backup Memory 128KB
ƒ Flash Memory 8MB/ 8MB + 128M NAND flash
ƒ Power-On LED Yes
ƒ Communication LED No
ƒ Front USB Access No
Communication Interface
ƒ COM1 RS-232/422/485 (DB9 Female)
ƒ COM2 RS-422/485 (5-Pin Plug Connector)
ƒ COM3 RS-232 (Com1: Pin5;7;8)
ƒ Ethernet (RJ45) 10/100-BaseT (for N2AE model)
ƒ I/Os USB Client Yes
USB Host Yes
Micro-SD Slot Yes (for N2AE model)
LCD Display and Touchscreen
ƒ Display Type SVGA TFT LCD
ƒ Display Size 8"
ƒ Max. Resolution 800 x 600
ƒ Max. Colors 65,536 colors
ƒ Luminance (cd/m 2 ) 250
ƒ Backlight Life LED, 30,000 hrs
ƒ Dimming Adjustable by touch panel
ƒ Touchscreen 4 wire analog resistive
Environment
ƒ Operating Temperature 0 ~ 50°C (32 ~ 122°F)
ƒ Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
ƒ Humidity 10 ~ 90% RH @ 40°C, non-condensing
ƒ Ingress Protection Front panel: IP66
ƒ Vibration Protection Operating, radom vibration 1 Grms (5 ~ 500 Hz)
Ordering Information
ƒ WOP-2080T-S2AE 8" SVGA, 64MB (SDRAM), 8MB (NOR)
ƒ WOP-2080T-N2AE 8" SVGA, 64MB (SDRAM), 8MB (NOR) &
128MB (NAND)
ƒ Various LCD sizes (4.3", 5.6", 7", 8", 10.1")
ƒ Supports ARM9-based CPUs with 200MHz and 128MB flash memory
ƒ Supports RTC, battery backup RAM, and Ethernet-based operator panels
ƒ Supports runtime data downloads through Serial, Ethernet, USB
ƒ Supports adjustable brightness controls via touch panel
ƒ Reliable firmware for 24/7 operation
ƒ Supports Windows XP/7/Vista-based WebOP Designer development tool
ƒ Easy to switch one application to different LCD sizes in seconds
ƒ Supports vertical and horizontal application screen rotation
ƒ Supports over 300 PLC industrial communication protocols
ƒ Communicates with up to four types of devices
ƒ Panel mounting for machinery
ƒ Front panel is IP66 compliant
8" SVGA Operator Panel with
WebOP Designer Software
Introduction
To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000T series
with 200MHz ARM9-based RISC CPU's and 128MB flash memory for application software. The WebOP-2000T series also support a variety of LCD sizes from 4.3" to 10.1" for different
applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. The WebOP-2000T series is bundled with WebOP Designer: a software development kit
which helps create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. WebOP Designer offers an outstanding
price performance ratio for various markets such as conventional operator panels, HMI + Low mini SCADA systems, and HMI + communication gateways.
