Marine Displays and Computers
HardwareSpecifications

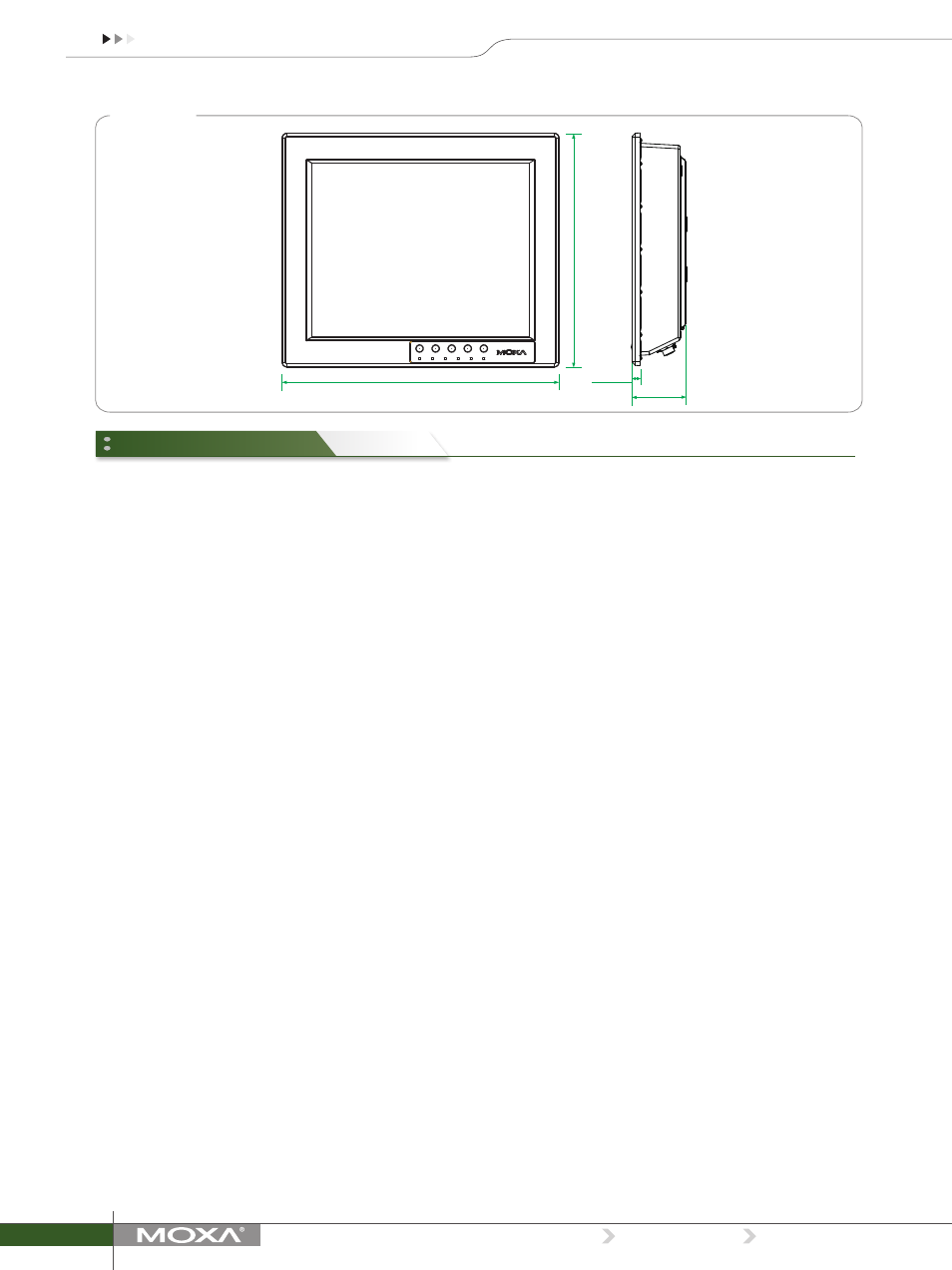

Dimensions
Unit: mm (inch)
Computer
CPU: Intel Atom D525 dual core 1.8 GHz processor
OS: Windows Embedded Standard 7
System Chipset: Intel Pineview-D+ ICH8M
BIOS: 16 Mbit Flash BIOS, SPI type with ACPI
Graphics Controller: Intel GMA3150 integrated graphics controller
Video Output: VGA output, waterproof DB-15 (female) connector
System Memory: 4 GB capacity, 2 GB pre-installed: 2 slots of 2 GB
DDR3-800 SO-DIMM SDRAM
Automatic Reboot Trigger: Built-in software-programmable watchdog
timer for system resets, configurable from 1 to 255 second timeout
intervals
Expansion Bus: 1 PCI-104 slot, 1 mini PCIe socket
USB: 2 USB 2.0 hosts, waterproof circular type A connector
KB/MS: PS/2 interface supports both keyboard and mouse via Y type
cable, waterproof connector (optional)
Storage
Storage Expansion:
• On-board CompactFlash socket x 1
• One extra on-board SATA interface, supporting configurable RAID 0/1
Storage Support: Removable 32 GB industrial grade SSD (operating
temperature: -40 to 85°C) to store OS; supports up to 256 GB
Display
Panel Size: 19-inch SXGA, 1000 nits LED backlit LCD
Aspect Ratio: 5:4
Response Time: 5 ms
Contrast Ratio: 1000:1
Viewing Angles:
• Horizontal: 170° (left to right)
• Vertical: 160° (up to down)
Max Colors: 16.7 M colors
Graphics Controller: Integrated Intel GMA3150 graphics controller
Video Output: VGA output, waterproof DB15 (female) connector
Resolution:
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024
Touchscreen
EXPC-1319-STS: Resistive single point glass-film-glass
EXPC-1319-MTS: Capacitive multi point (available on request)
Note: All EXPC-1319 touchscreens are scratch resistant and anti-glare, suitable
for use outdoors around heavy equipment.
Ethernet Interface
Hardware Interface: Waterproof RJ45 connector
LAN: 2 auto-sensing 10/100/1000 Mbps ports
Optical Fiber Interface: 2 multimode 100M fiber optic ports with
waterproof Q-ODC connector (available on request)
WLAN: 1 802.11b/g/n interface (available on request)
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards: 2 RS-232/422/485 ports, software-selectable
Connector Type: Waterproof DB-9 (male)
Baudrate: Up to 38,400 bps
Isolation Protection: 2 kV
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: Up to 38,400 bps
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
LEDs and Buttons
LEDs: Power on/off, heater on/off, storage, LAN port communication x
2, fiber communication
Control Buttons: System on/off, brightness adjustment x 2,
touchscreen on/off, programmable “Fn” button
Physical Characteristics
Housing: Aluminum
Weight:
• 10.7 kg (without Intelligent Heating Solution)
• 11.9 kg (with Intelligent Heating Solution)
Dimensions: 483 x 408 x 99 mm (19.02 x 16.06 x 3.90 in)
Mounting: Mounting holes for VESA 75/100, yoke mounting, and panel
mounting
Environmental Limits
Operating Temperature:
• Without Intelligent Heating Solution: -20 to 60°C (-4 to 140°F)
• With Intelligent Heating Solution: -40 to 60°C (-40 to 140°F)
Storage Temperature: -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
483 (19.01)
408 (16.06)
99 (3.90)
14 (0.55)
