Page 8
November, 2003
455 D Control Panel Installation Instructions
P
ROGRAMMING
To program the automated system, the “Programming
Mode” must be accessed.
Programming is split into two parts: BASIC and
ADVANCED.
B ASIC P ROGRAMMING
To access BASIC PROGRAMMING, press the “F” key.
• If you press it (and hold it down), the display
shows the name of the first function.
• If you release the key, the display shows the value
of the function that can be modified with keys +
and — .
• If you press and hold down the “F” key again (and
hold it down), the display shows the name of the
next function, etc.
• When you reach the last function, press “F” to exit
the program, and the display resumes showing
the status of the inputs.
The table on the right shows the sequence of
functions accessible in BASIC PROGRAMMING.
A DVANCED P ROGRAMMING
To access ADVANCED PROGRAMMING, press the “F”
key and, as you hold it down, press the “+” key:
• If you release the “+”, the display indicates the
name of the first function.
• If you release the “F” key, too, the display shows
the value of the function that can be modified
with keys “+” and “—”.
• If you press the “F” key (and hold it down), the
display shows the name of the next function, and
if you release it, the value that can be modified
with keys “+” and “—”.
• When you reach the last function, press the “F”
key to exit the program, and the display resumes
showing the status of the inputs.
The table on page 9 shows the sequence of functions
accessible in ADVANCED PROGRAMMING:

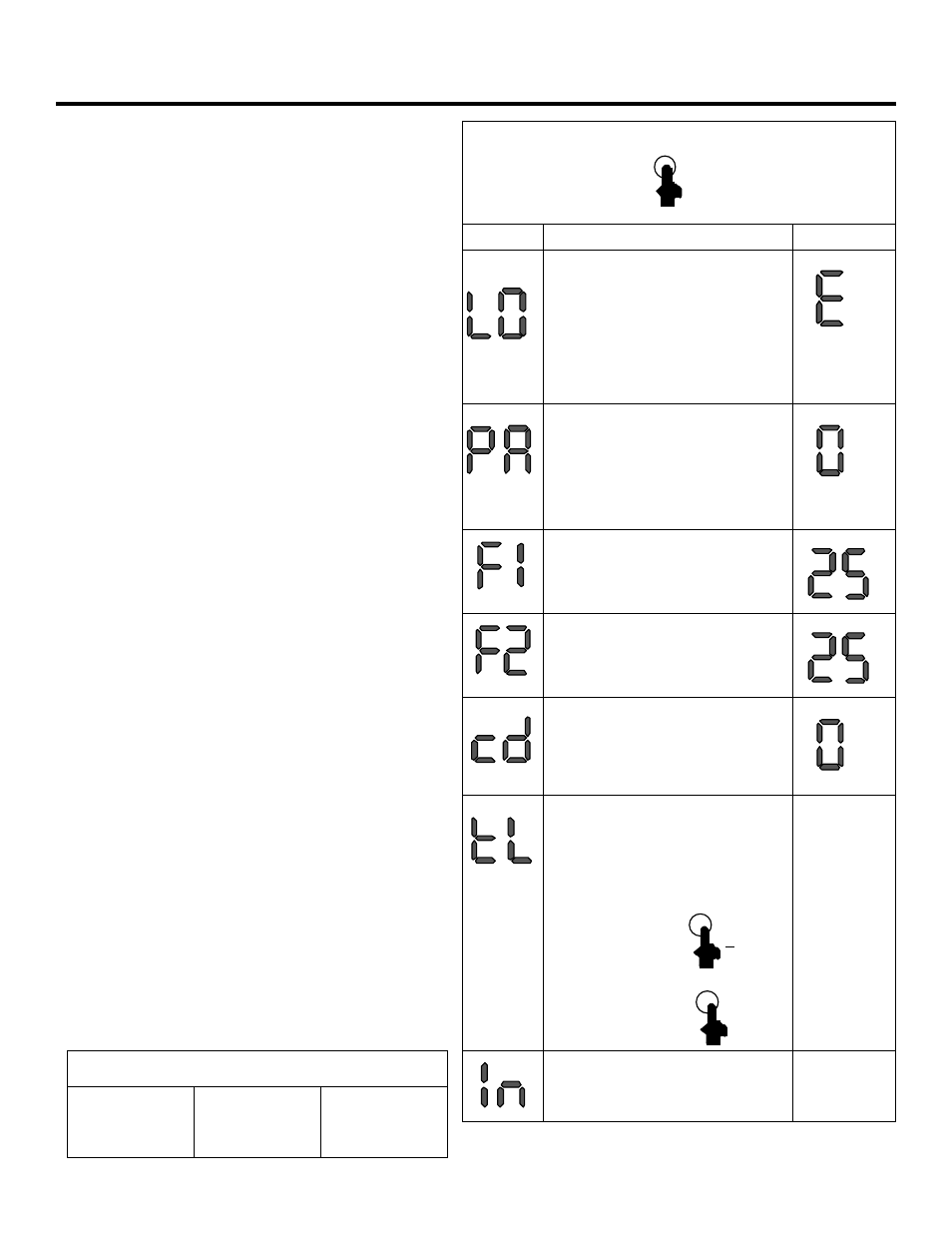

Display Function Default
O PERATING L OGICS
A = Automatic (Timer to Close)
E = Semi Automatic
S = Security
EP = (Semi-Automatic) Step by Step
B = Manned, Pulsed
C = Manned, constant
P AUSE T IME
This is the time between open and
closing and is adjustable from 0 to
4 min. This is only true in “A”
Mode. (see pause time description)
F ORCE /T ORQUE M OTOR 1
This adjusts the force / torque that
motor 1 is applying to the gate
leaf. Setting is 0 to 50.
*
F ORCE /T ORQUE M OTOR 2
This adjusts the force / torque that
motor 2 is applying to the gate
leaf. Setting is 0 to 50.
*
C LOSING L EAF D ELAY
Delays the closing of operator
wired into motor one outputs.
Adjustable from 0 to 4 minutes
(Same as pause time)
M OTOR R UN T IME
This enables where you choose
from “simple” learning or
“complete” learning of the motor
run time. See page 10 & 11 for
complete details.
Simple Learning
~ 1 s.
Complete Learning
> 3 s.
E XIT P ROGRAMMING
Exit from programming and return
to display of inputs status.
BASIC PROGRAMMING
+
F
+
PROGRAM BUTTONS
+ - F
LEFT MIDDLE RIGHT * With Hydraulic operators the Force/Torque must be set to
the maximum setting of 50.
