VS-GSLG Slide Gate Operator Installation Guide
- 30 -
P1255 Revision X5 7-7-2011

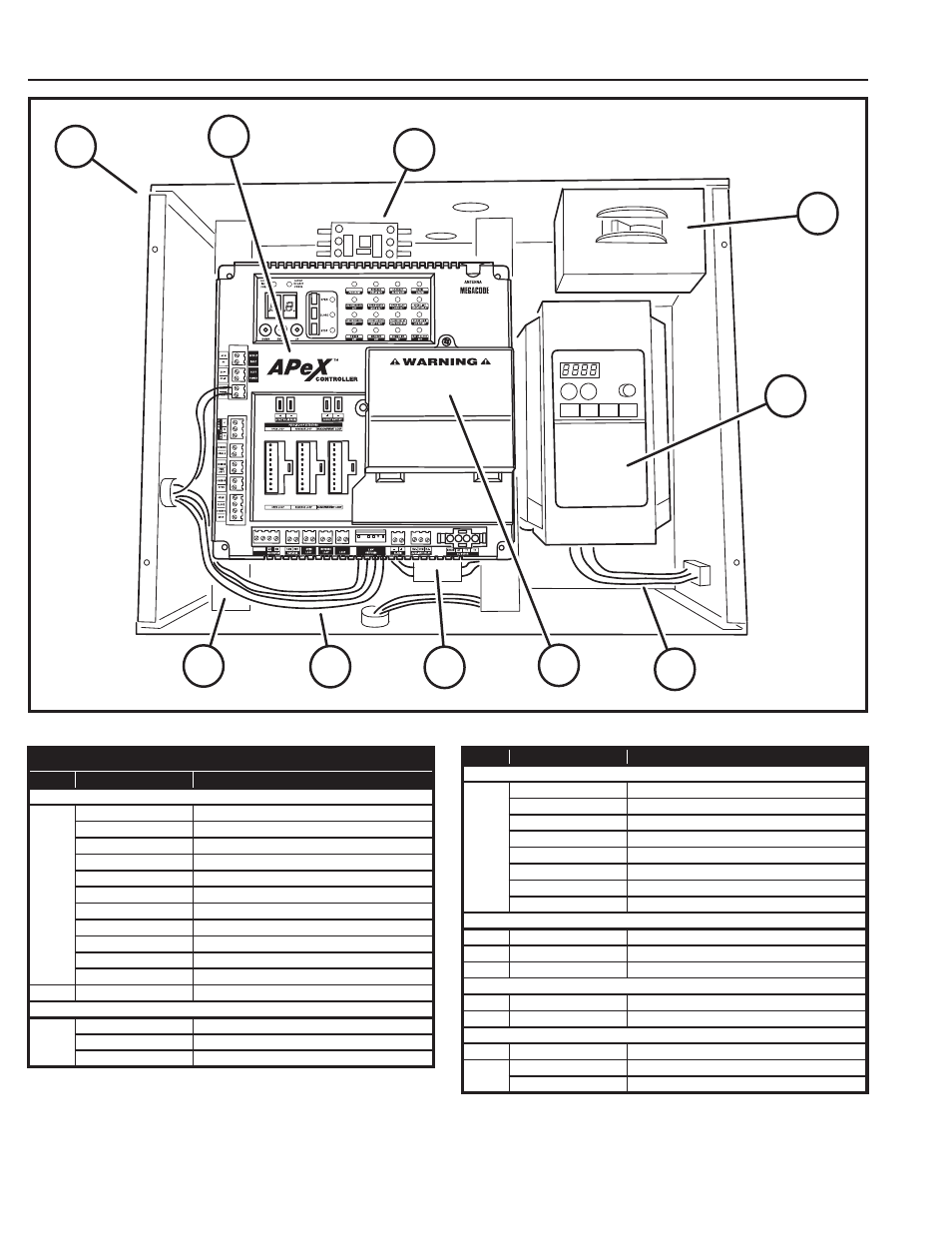

Controller Parts List
SHADOW/RESET
OPEN/RESET
6
8
3
7
1
4
9
5
10
2
VS-GSLG CONTROLLER MECHANICAL PARTS LIST
REF. #
PART #
DESCRIPTION
Variable Speed Control Box Assemblies
2520-532
1/2 HP, 115V, 1-Phase Controller
2520-533
1/2 HP, 208/230V, 1-Phase Controller
2520-534
1/2 HP, 208/230V, 3-Phase Controller
2520-535
1/2 HP, 460V, 3-Phase Controller
2520-536
1 HP, 115V, 1-Phase Controller
2520-537
1 HP, 208/230V, 1-Phase Controller
2520-538
1 HP, 208/230V, 3-Phase Controller
2520-539
1 HP, 460V, 3-Phase Controller
2520-540
2 HP, 208/230V, 1-Phase Controller
2520-541
2 HP, 208/230V, 3-Phase Controller
2520-542
2 HP, 460V, 3-Phase Controller
1
2120-447
Enclosure with Cover
Transformers
2
2500-212
115V to 24V, 40VA
2500-791
208/230V to 24V, 40VA
2500-214
460V to 24V, 40VA
REF. #
PART #
DESCRIPTION
Hitachi Controllers
3
2500-2244
1/2 HP, 115V, 1-Phase
2500-2246
1/2 HP, 208/230V, 1-Phase or 3-Phase
2500-2249
1/2 HP, 460V, 3-Phase
2500-2245
1 HP, 115V, 1-Phase
2500-2247
1 HP, 208/230V, 1-Phase or 3-Phase
2500-2250
1 HP, 460V, 3-Phase
2500-2248
2 HP, 208/230V, 1-Phase or 3-Phase
2500-2251
2 HP, 460V, 3-Phase
Apex Parts
4
2500-1980
3-Phase Motor Board
5
2100-2149
Apex Mounting Straps
6
2500-2393
Apex Module
7
2500-2084-HALF
Brake Contactor (1/2)
8
2500-2291
Power On/Off Switch, 30 Amp, 600VAC
Wiring Harnesses
9
2510-494
Limit Switch Harness
10
2510-500
Control Box Motor Harness, 115/230V
2510-501
Control Box Motor Harness, 460V
