Corner opposite
of the yoke

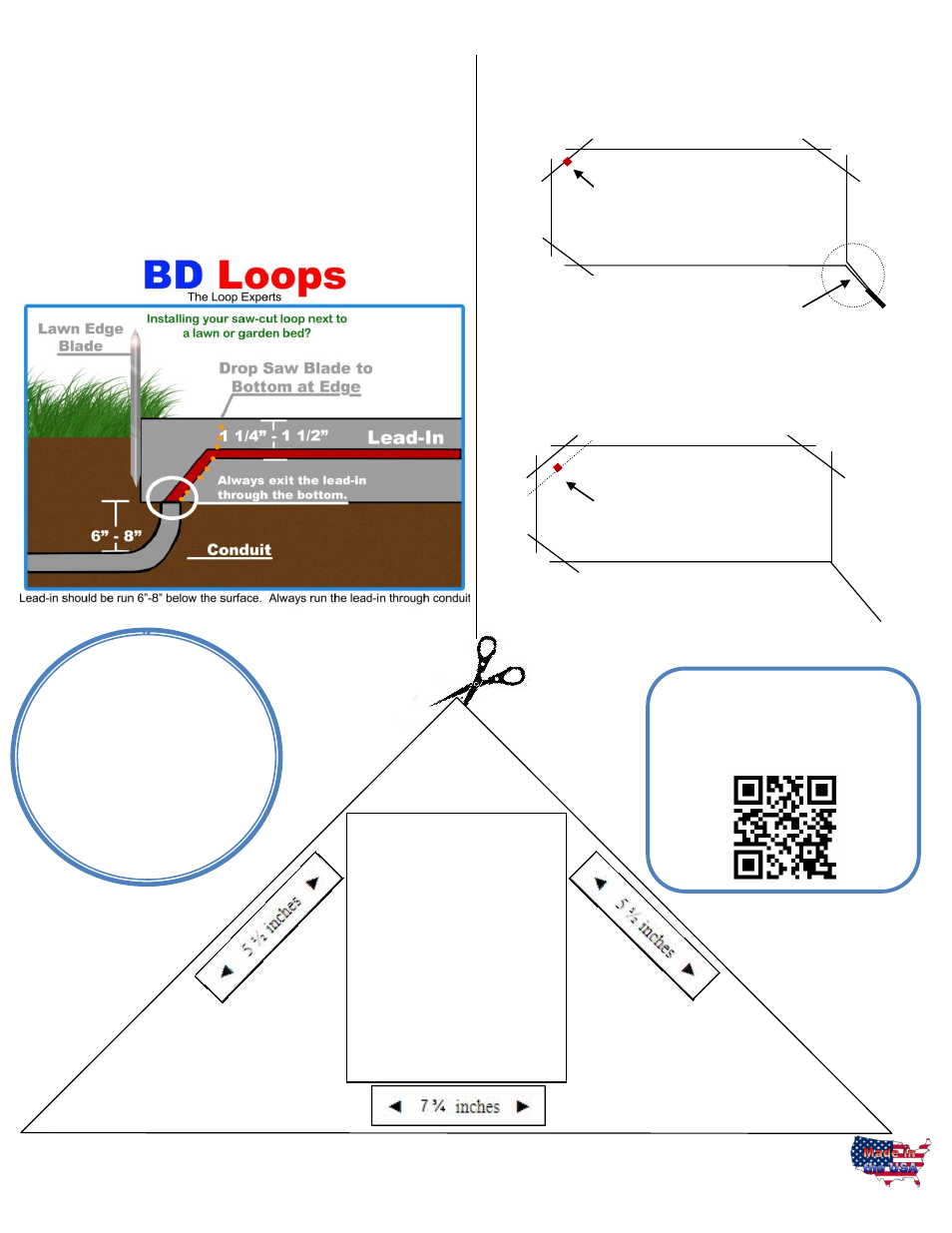

How to properly exit the
roadway

Drop the blade to the bottom at the edge
of the roadway.

Always exit lead-in through the bottom.

6-8 inches below the bottom of the
surface material.

Always run lead-in through PVC conduit.
If you have a gopher problem lead-in
can be run in metallic conduit.
Made the cut too small?

Push the yoke down the lead-in run,
up to 2 ft.
Made the cut too large?

Cut the dog ear corner opposite of
the yoke to make the loop’s
perimeter shorter.
BD Loops
Dog-ear 45º cut-out
template
5 ½ x 5 ½ x 7 ¾ inches.
Cut out the picture and
use to mark the
corners for the saw-cut
or make a wood block
the same size.
vC2
Place loop’s red mark
in the center
Pull the excess loop into the
lead-in run. Up to 2ft ok.
Place loop’s red mark
in the center
Corner opposite
of the yoke
NEVER stretch the loop if it does not fit
the groove, follow the instructions above
and cut the corner opposite of the yoke.
