Wiring instructions, Left or right hand operation – Controlled Products Systems Group 7200ETL-IL User Manual
Page 11
11
Left or Right Hand Operation
operator
Gate in closed position
operator
Gate in closed position
Wiring Instructions

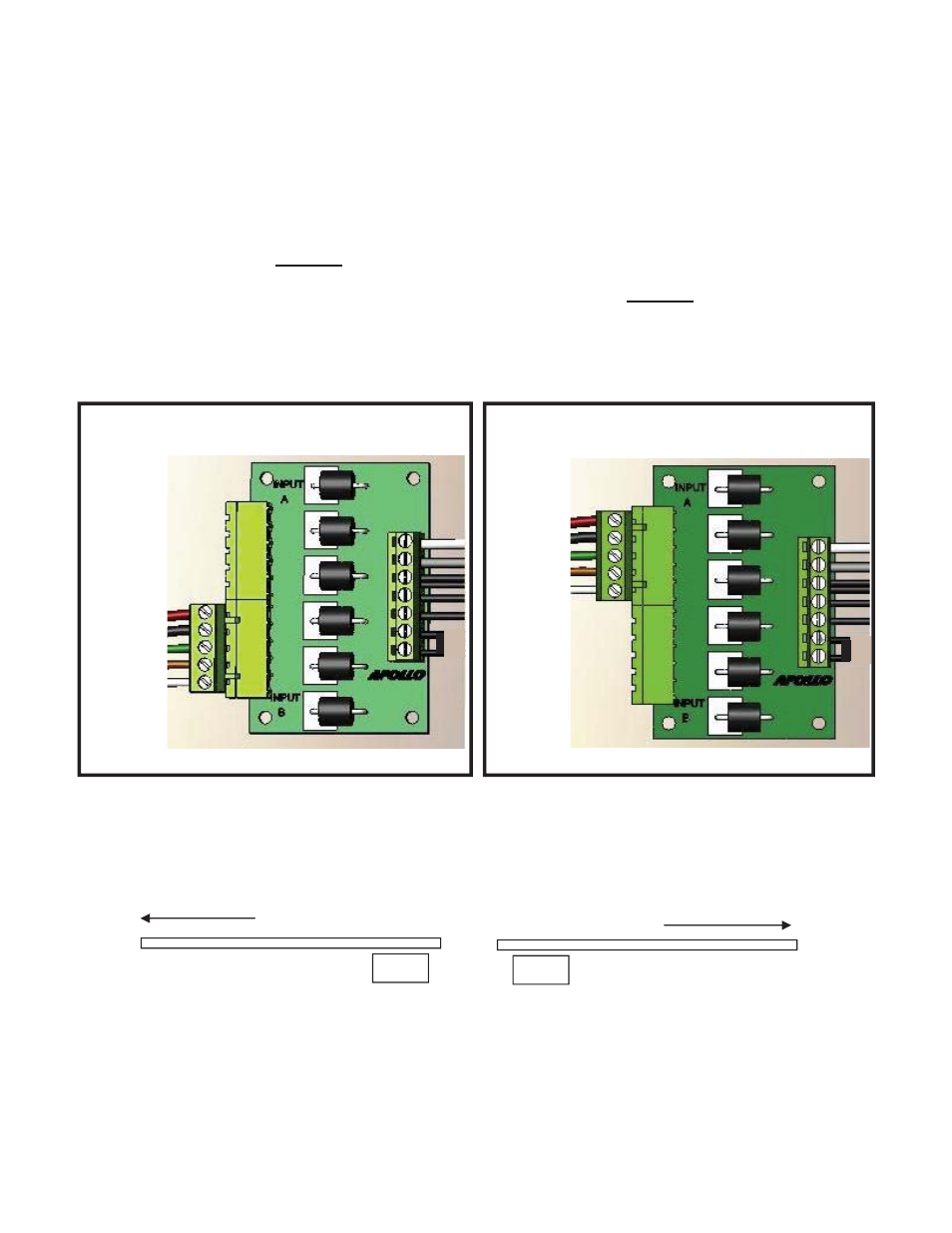

STEP 1. Determine which side of driveway operator will be installed on. The factory units are
plugged into INPUT B for right side installation as shown in Fig. 1.
For left side installation, disconnect from INPUT B and plug into INPUT A on the surge
board as shown in Fig. 2.
Fig. 1
Right Side Installation
Fig. 2
Left Side Installation
Right Side Installation
Red
Black
Green
Orange
White
Left Side Installation
Red
Black
Green
Orange
White
