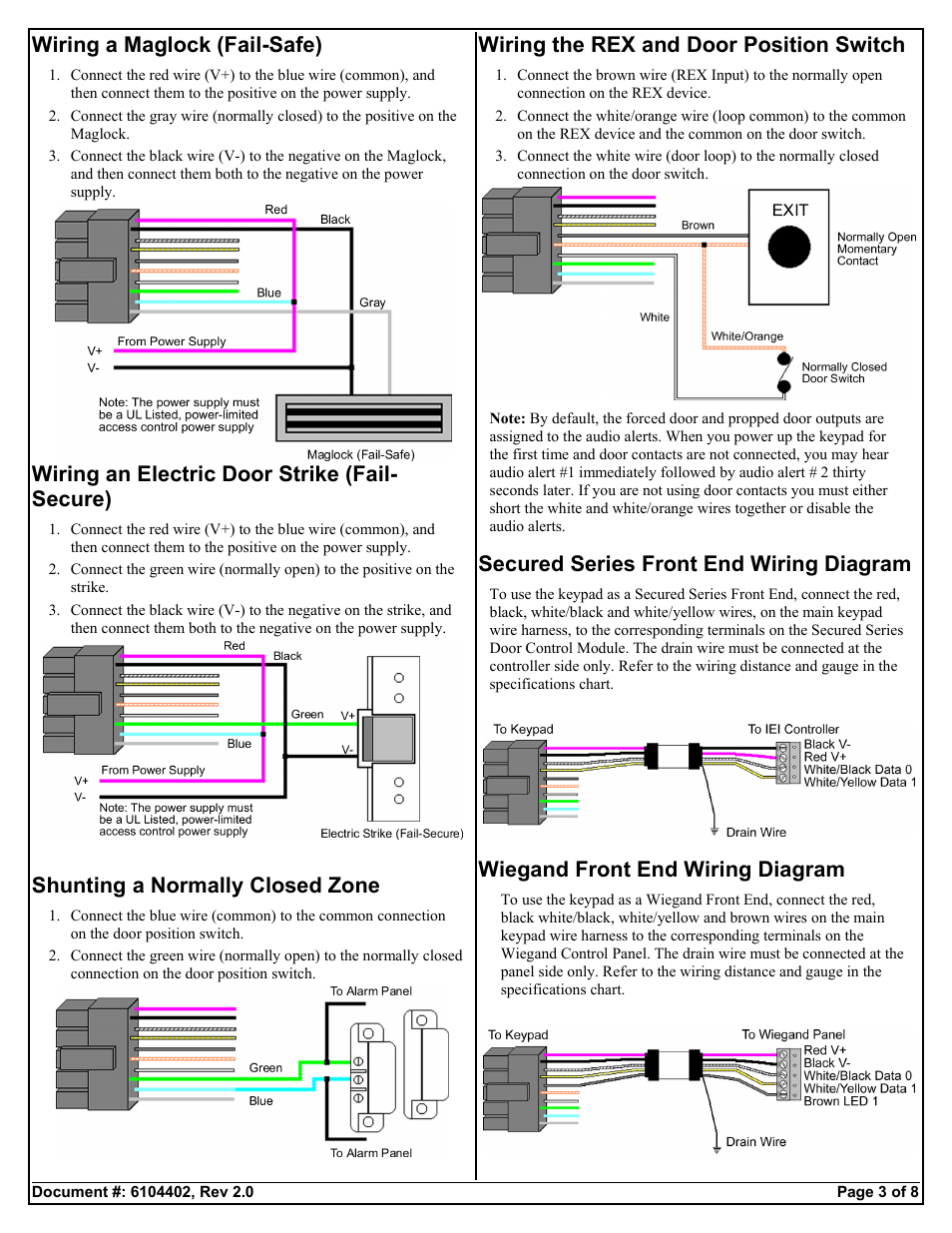

Wiring a maglock (fail-safe), Wiring an electric door strike (fail- secure), Shunting a normally closed zone – Controlled Products Systems Group 2000E User Manual

Page 3: Wiring the rex and door position switch, Secured series front end wiring diagram, Wiegand front end wiring diagram

Wiring a maglock (fail-safe), Wiring an electric door strike (fail- secure), Shunting a normally closed zone | Wiring the rex and door position switch, Secured series front end wiring diagram, Wiegand front end wiring diagram | Controlled Products Systems Group 2000E User Manual | Page 3 / 8 Wiring a maglock (fail-safe), Wiring an electric door strike (fail- secure), Shunting a normally closed zone | Wiring the rex and door position switch, Secured series front end wiring diagram, Wiegand front end wiring diagram | Controlled Products Systems Group 2000E User Manual | Page 3 / 8
