Page 6: Table 3: technical specifications, Of the cda-vga10 xga line driver

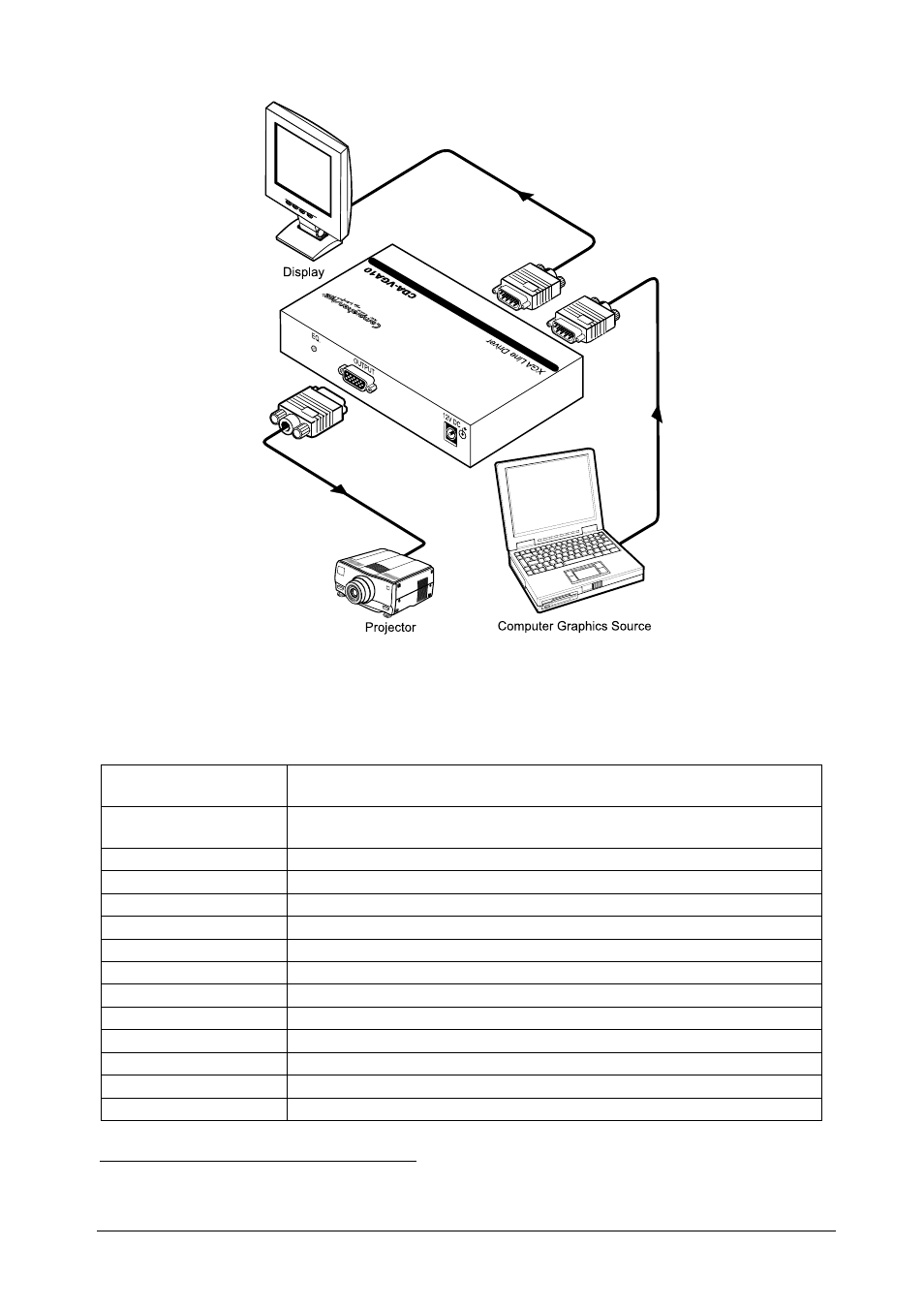

Figure 3: Connecting the CDA-VGA10 XGA Line Driver

6 Technical Specifications

Table 3 includes the technical specifications:

Table 3: Technical Specifications

of the CDA-VGA10 XGA Line Driver

INPUT:

Looping analog red, green, blue signals - 0.7Vpp / 75 , H & V sync, TTL

level, on HD15F connectors

OUTPUT:

Analog red, green, blue signals - 0.7Vpp / 75 , H & V sync, TTL level, on an

HD15F connector

MAX. OUTPUT LEVEL:

1.9Vpp

BANDWIDTH (-3dB):

480MHz

DIFF. GAIN:

0.8%

DIFF. PHASE:

0.2 Deg.

K-FACTOR:

<0.05%

S/N RATIO:

73.5dB

CONTROLS:

EQ.: 0dB to +11.3dB @ 50MHz

COUPLING:

POWER SOURCE:

12 VDC, 101mA

DIMENSIONS:

12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), W, D, H

WEIGHT:

0.3 kg. (0.66 lbs.) approx.

ACCESSORIES:

Power supply, mounting bracket

1 Specifications are subject to change without notice
