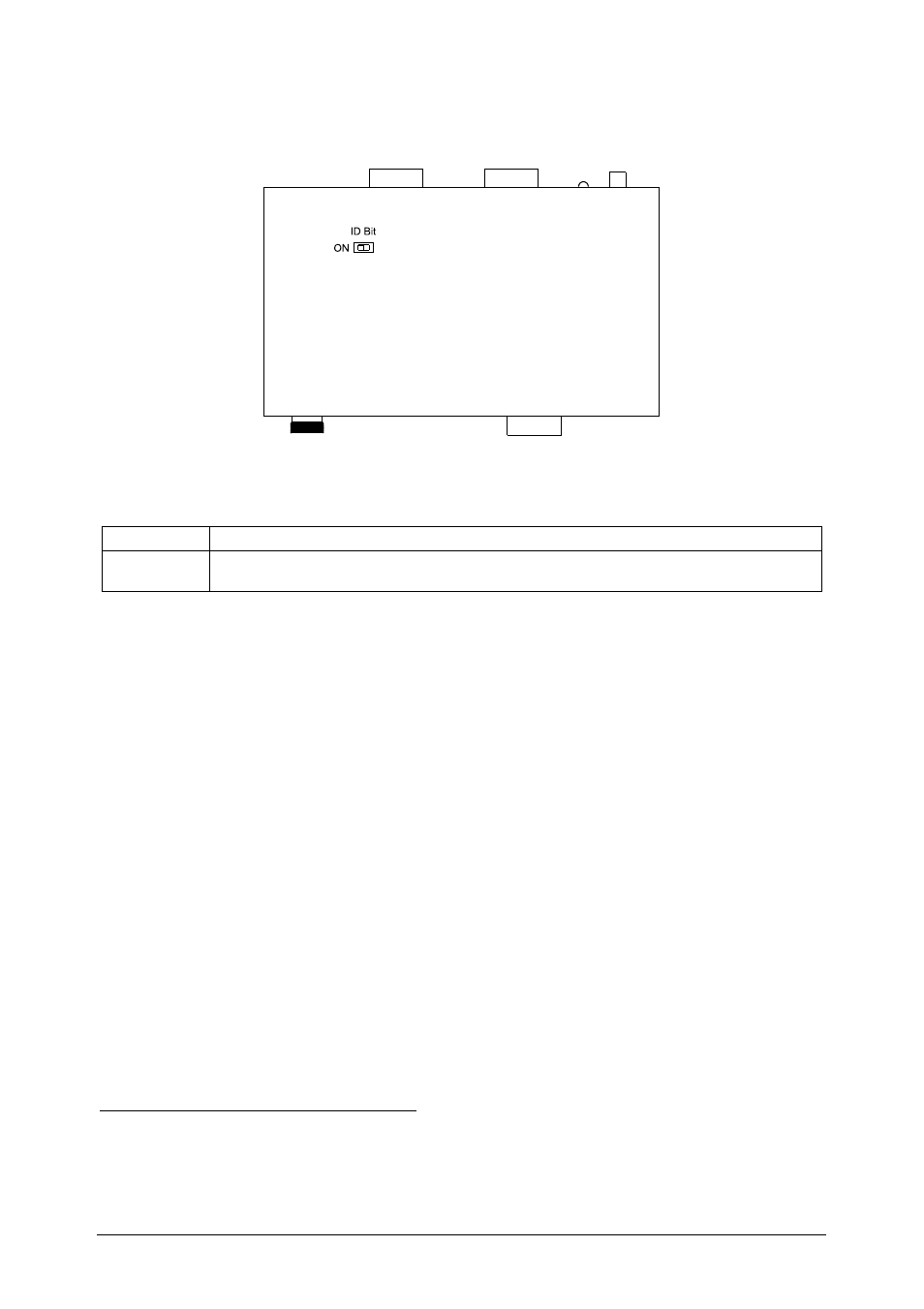

Figure 2 and Table 2 define the underside of the CDA-VGA10 XGA Line
Driver:
Figure 2: CDA-VGA10 XGA Line Driver (Underside)
Table 2: Features and Functions of the CDA-VGA10 XGA Line Driver (Underside)
Feature Function
ID Bit Switch Sliding to the left selects the ID BIT, sliding to the right deactivates the ID BIT (when
outputting the input signal from a laptop connected to an external VGA monitor 1 )
5 Connecting Your CDA-VGA10 XGA Line Driver
To connect the CDA-VGA10, as the example in Figure 3 illustrates, do the
following:
1. Connect an XGA source (for example, a laptop’s graphics card) to the
INPUT HD15F connector.
2. On the underside, slide the ID Bit switch to the left to set to ON.
3. Connect the OUTPUT HD15F connector to the acceptor (for example, a
projector).
4. Connect the LOOP HD15F connector to a local PC monitor and release
the TERM button to Hi-Z.
Note: if only a single output is required, leave the loop unconnected and
push in the TERM button to 75 .
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
6. Adjust 2 the video EQ. (equalization) compensation, if required.
1 Sometimes laptop computers refuse to output a VGA signal to an external VGA monitor if they do not detect the ID Bit as
ON. Set the ID Bit to ON using this switch so that the laptop will output to an external VGA monitor
2 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT equalization level
