5.2 Connecting the CDA-V20 1:2 Video DA
To connect the CDA-V20 1:2 Video DA, as the example in Figure 4
illustrates, connect the following 1 :
1. Connect a composite video source (for example, a VCR) to the INPUT
BNC connector.
2. Connect the 2 OUT BNC connectors to up to 2 composite video
acceptors, as follows:
Connect the OUT 1 connector to video acceptor 1 (for example, a projector)
Connect the OUT 2 connector to video acceptor 2 (for example, a monitor)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. Adjust the output signal level and/or cable compensation equalization
level, if required.

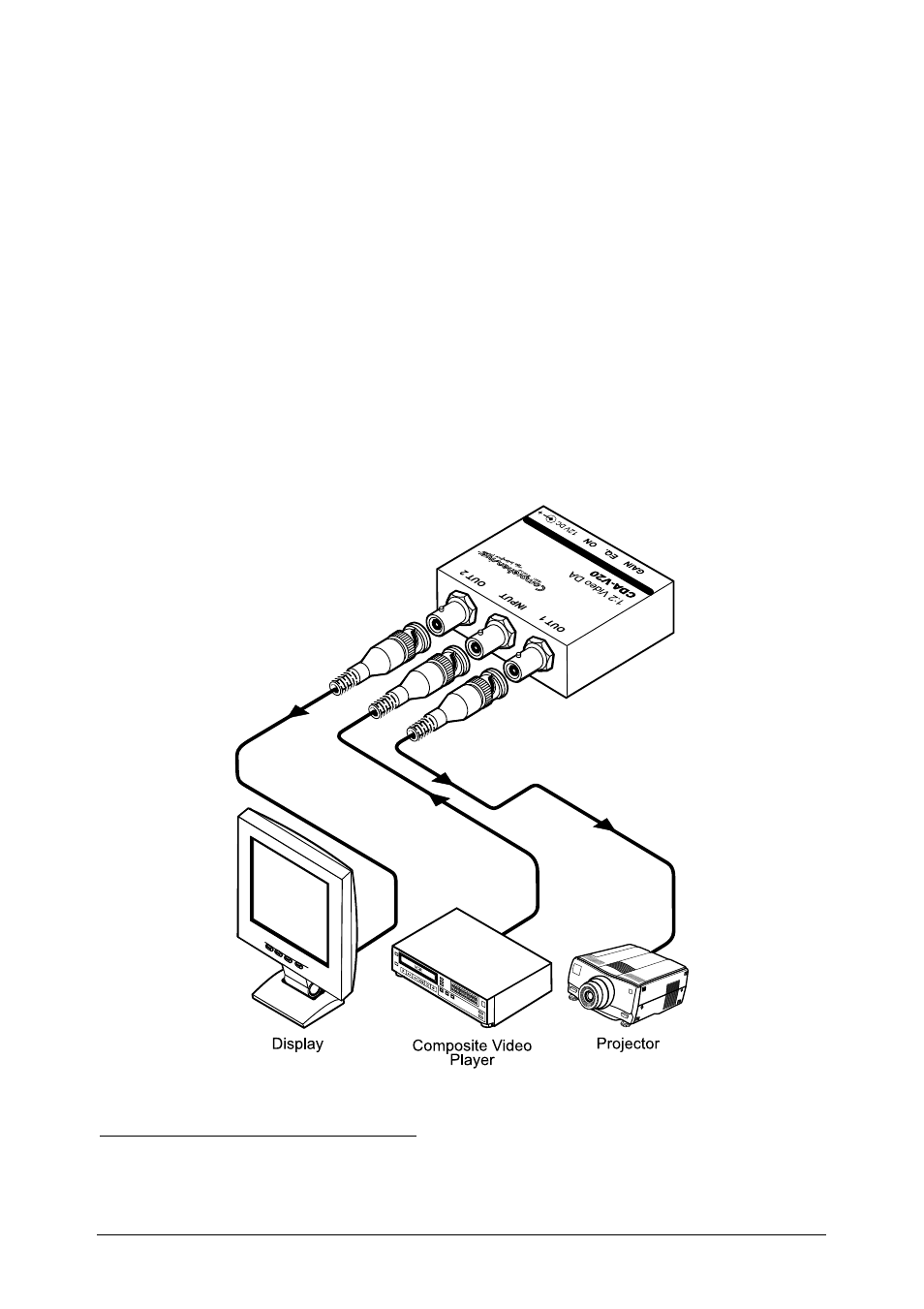

Figure 4: Connecting the CDA-V20 1:2 Video DA
1 Switch OFF the power on each device before connecting it to your CDA-V20. After connecting your CDA-V20, switch on
its power and then switch on the power on each device
